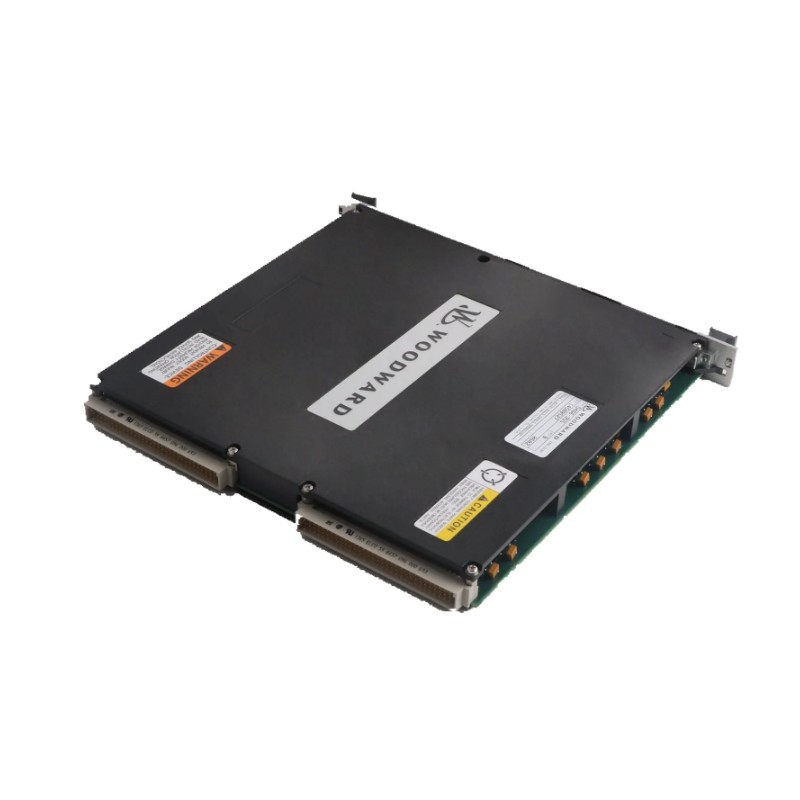

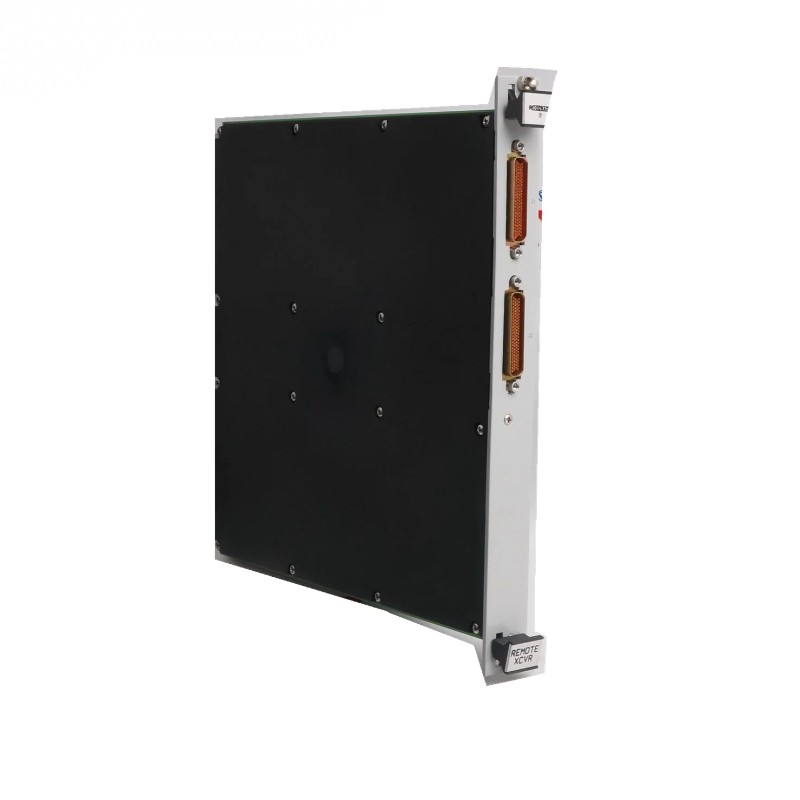

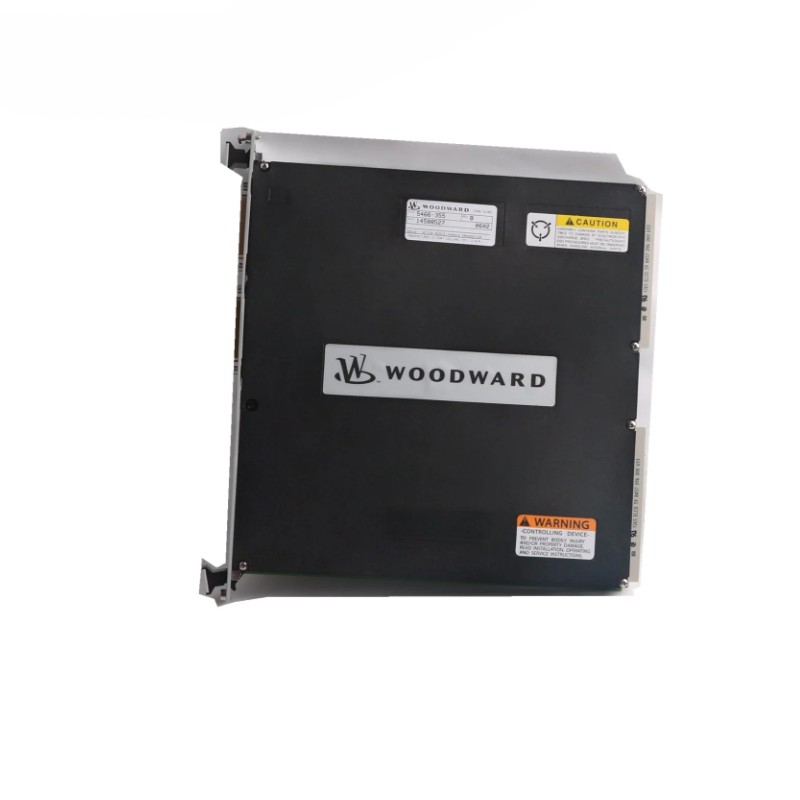

Woodward 5501-469 | Digital Control Module New In Stock

Overview

The Woodward 5501-469 is a digital control module used within Woodward 505/5000-series turbine and engine control platforms. It provides processing, logic execution, and communication functions required for high-reliability industrial control applications.

General Information

Part Number: 5501-469

Manufacturer: Woodward

Series: 5000 / 505 Control Series

Type: Digital Control / Processor Module

Mounting: Rack-mounted in Woodward control chassis

Technology: Microprocessor-based control with onboard diagnostics

Power Specifications

Supply Voltage: 24 V DC (from system backplane)

Power Consumption: ≤ 12 W

Input: Powered through the rack interface/backplane

Protection: Overvoltage and internal isolation protection

Indicators: LEDs for power, run, communication, and fault status

Communication & Interface

Communication Bus: Woodward system backplane communication bus

Supported Functions: System logic processing, inter-module communication

Diagnostics: Continuous self-test, watchdog monitoring, status reporting

Operator Interface: Status LEDs, software configuration tools

Reset Features: Supports module reset and system restart

I/O & Channels

Relay Channels: None (logic/processor module only)

External Load Support: Not applicable

Signal Handling: Executes logic based on other system I/O modules

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: Standard control cabinet conditions (approx. IP20)

Dimensions & Weight

Dimensions (L × W × H): Approx. 175 × 35 × 140 mm
Weight: ~ 0.4 kg

Brand-new originals in stock, 24/7 customer service available, quotes provided instantly.
