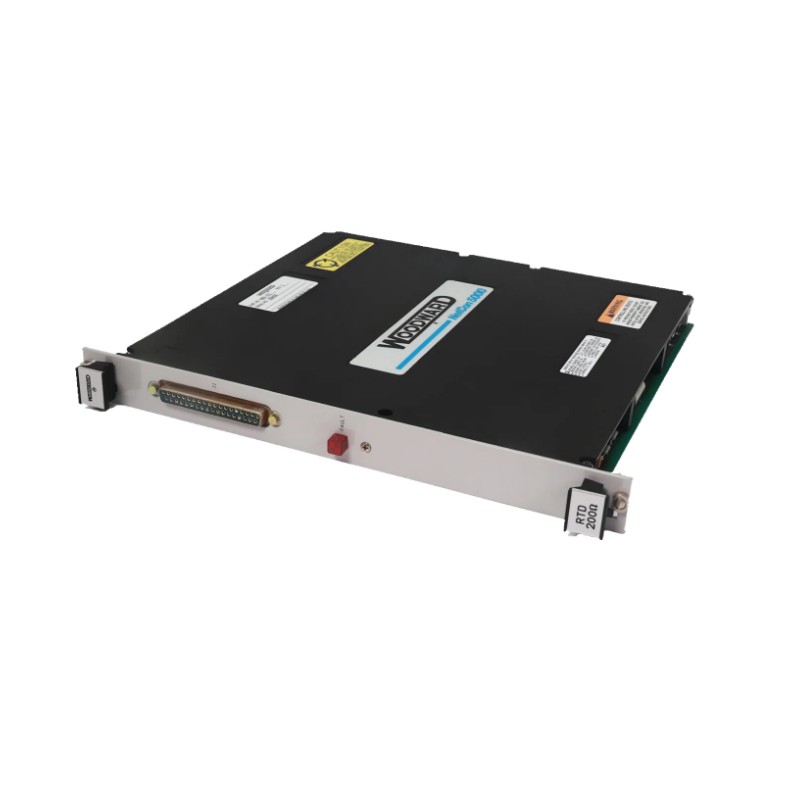

Woodward 5466-352 | Digital Control Module Rave reviews

Overview

The Woodward 5466-352 is a digital control module used in Woodward’s 5000-series turbine and engine control systems. It supports high-reliability processing, signal handling, and system coordination for industrial turbine, compressor, and generator applications.

General Information

Part Number: 5466-352

Manufacturer: Woodward

Series: 5000 Control Series

Type: Digital Control / Logic Module

Mounting: Rack-mounted within Woodward control chassis

Technology: Microprocessor-based control, onboard diagnostics

Power Specifications

Supply Voltage: 24 V DC (via rack backplane)

Power Consumption: ≤ 12 W (typical)

Input: Supplied from system backplane

Protection: Overvoltage protection, internal fault isolation

Indicators: LED indicators for status, run, fault, and communication

Communication & Interface

Communication Bus: Woodward system backplane bus

Supported Protocols: Internal system communication for control logic exchange

Diagnostics: Self-test, watchdog monitoring, error reporting

Configuration: Parameterized through Woodward control software tools

Reset Features: Supports system reset and module restart

I/O & Channels

Module Function: Logic and system coordination (no direct analog or relay I/O)

External Load Support: Not applicable

Signal Handling: Digital data processing from system I/O modules

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: Standard control cabinet installation (approx. IP20)

Dimensions & Weight

Dimensions (L × W × H): Approx. 175 × 35 × 140 mm

Weight: ~ 0.4 kg

Brand-new original products, fully stocked, professional team online, get your quote immediately.
