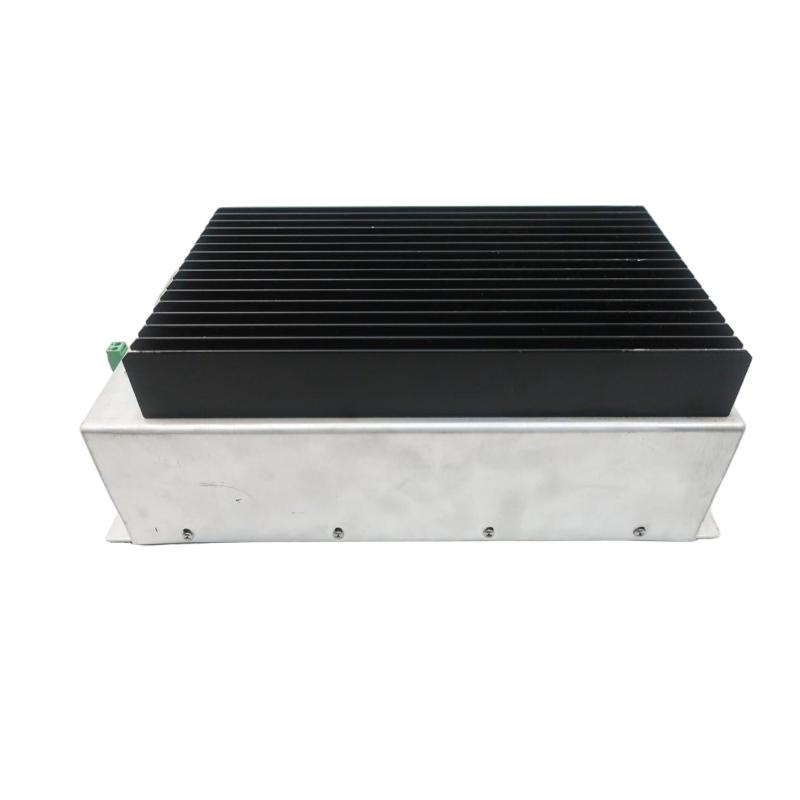

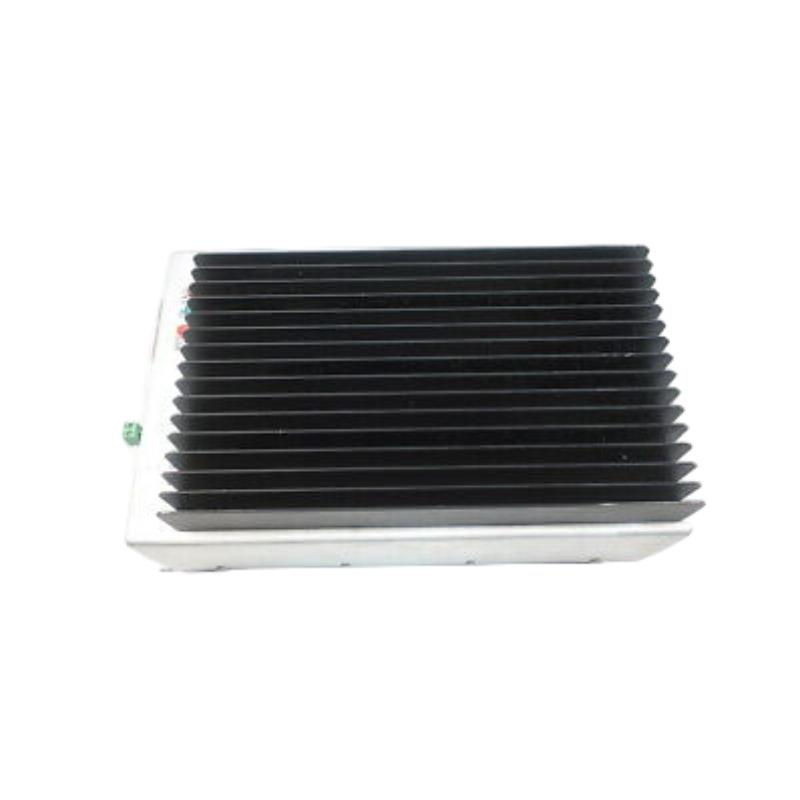

Woodward 9907-076 | Actuator Control Module Quality Selection

Overview

The Woodward 9907-076 is an actuator control module designed for industrial engines, turbines, and compressor systems. It provides accurate drive signals to actuators, ensuring precise control of valves, fuel systems, and other field devices. The module is engineered for continuous-duty operation and reliable performance in demanding industrial environments.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Actuator Control Module
Series: Woodward 9907 Series
Function: Converts control commands into regulated actuator drive outputs
Applications: Gas turbines, steam turbines, engine automation, and industrial process control
Mounting: Rack or panel installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power, optimized for continuous operation
Protection: Built-in overvoltage, reverse-polarity, and thermal protection
Signal Stability: Filtered outputs provide smooth and precise actuator control

Communication & Interface

System Interface: Connects directly to Woodward control systems
Input Signals: Accepts both analog and digital control commands
Output Signals: Provides regulated drive signals to actuators and other field devices
Diagnostics: LED indicators for module health, operational status, and fault detection
Connectivity: Industrial terminal blocks for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Construction: Industrial-grade PCB and components suitable for high-vibration and high-temperature conditions

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 3 kg

Genuine brand-new parts, stable stock, and quick response for your quotation needs.
