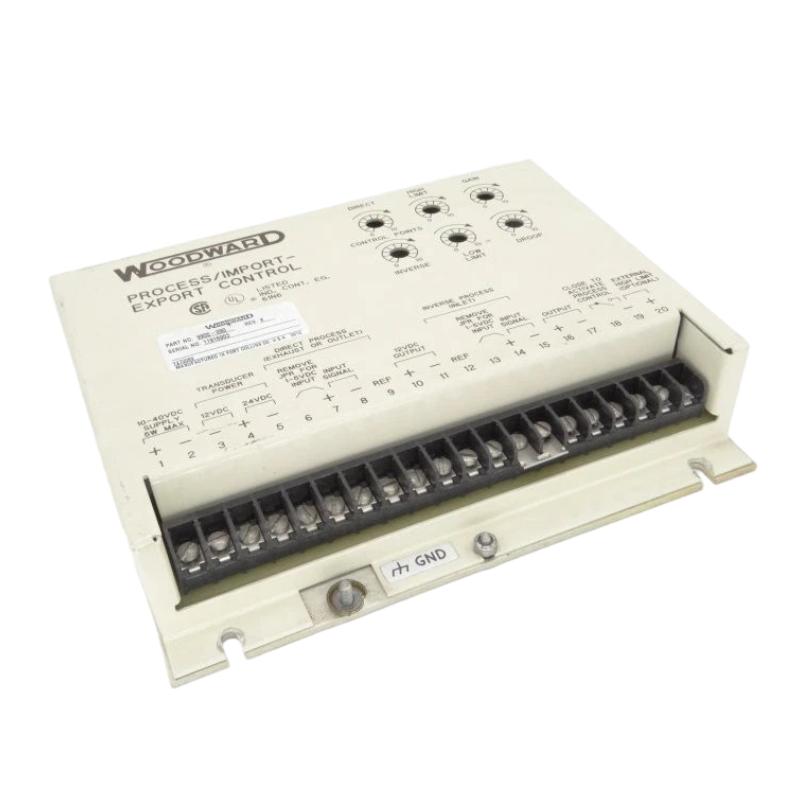

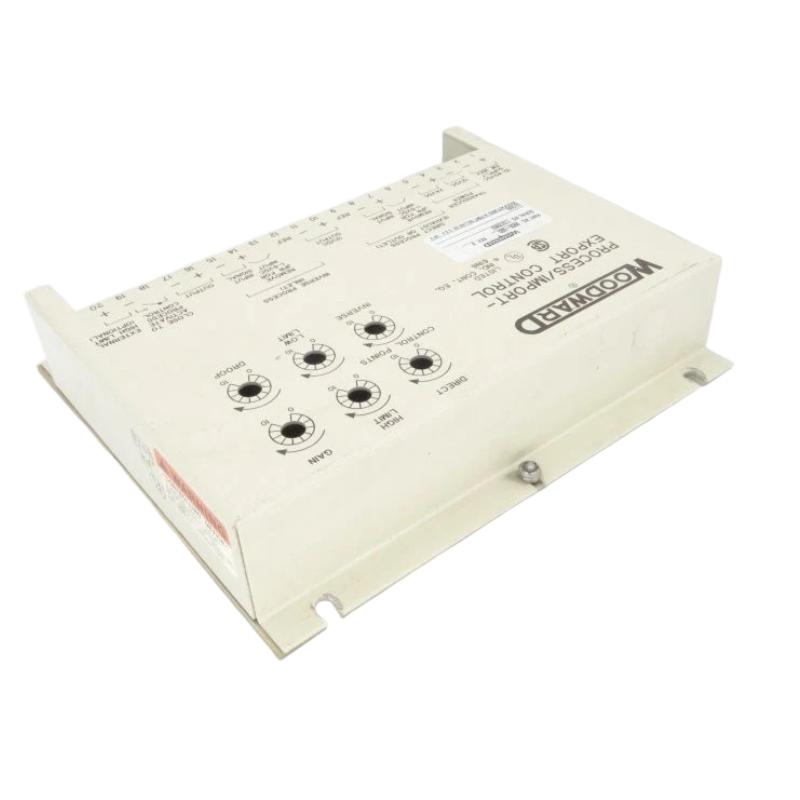

Woodward 9905-946 | Control Module Rave reviews

Overview

The Woodward 9905-946 is a control module engineered for industrial turbines, engines, and compressor systems. It delivers precise signal processing and stable output to actuators, valves, and other field devices. Designed for continuous-duty operation, it ensures reliable performance in demanding industrial environments where accuracy and consistency are critical.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Control Module
Series: Woodward 9900 Series
Function: Processes control signals and provides regulated outputs for actuators and field devices
Applications: Gas turbines, steam turbines, large engine control, and industrial automation
Mounting: Rack or panel-mounted installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design optimized for continuous operation
Protection: Built-in safeguards against overvoltage, reverse polarity, and thermal events
Signal Stability: Filtered outputs to ensure accurate and smooth actuator control

Communication & Interface

System Interface: Connects directly to Woodward control platforms
Input Signals: Accepts both digital and analog commands from controllers
Output Signals: Provides regulated outputs for actuators, valves, and other controlled devices
Diagnostics: LED indicators for module health, operational status, and fault detection
Connectivity: Industrial terminal blocks for secure and reliable wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Construction: Industrial-grade PCB and components suitable for high-vibration and high-temperature conditions

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg

All our products are original and new, with live inventory and active quote response.
