Overview

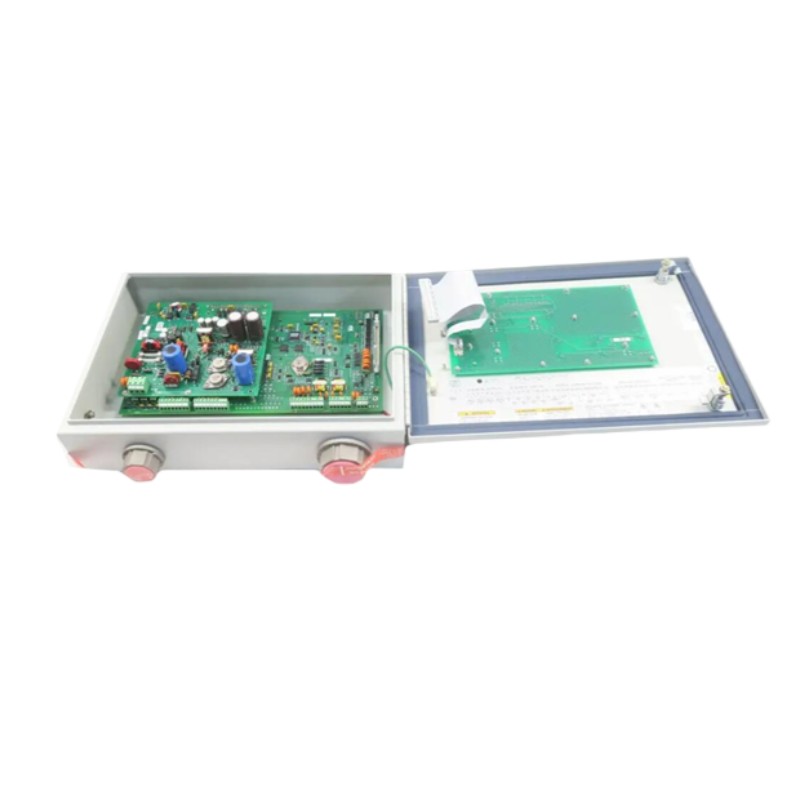

The Woodward 9905-860 is a control module designed for industrial turbines, engines, and compressor systems. It provides precise signal processing and reliable output to actuators, valves, and other field devices. The module ensures stable operation in demanding industrial environments and supports continuous operation for critical process control applications.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Control Module
Series: Woodward 9900 Series
Function: Processes control signals and delivers regulated outputs to actuators and field devices
Applications: Gas turbines, steam turbines, large engine control, and industrial automation
Mounting: Rack or panel-mounted installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design suitable for continuous operation
Protection: Internal safeguards against overvoltage, reverse polarity, and thermal events
Signal Stability: Filtered outputs for smooth and precise actuator control

Communication & Interface

System Interface: Connects directly to Woodward control platforms
Input Signals: Accepts digital and analog commands from controllers
Output Signals: Regulated outputs for actuators, valves, or other controlled devices
Diagnostics: LED indicators for module health, status, and fault detection
Connectivity: Industrial terminal connections for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Construction: Industrial-grade PCB and components designed for vibration and high-temperature environments

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg
