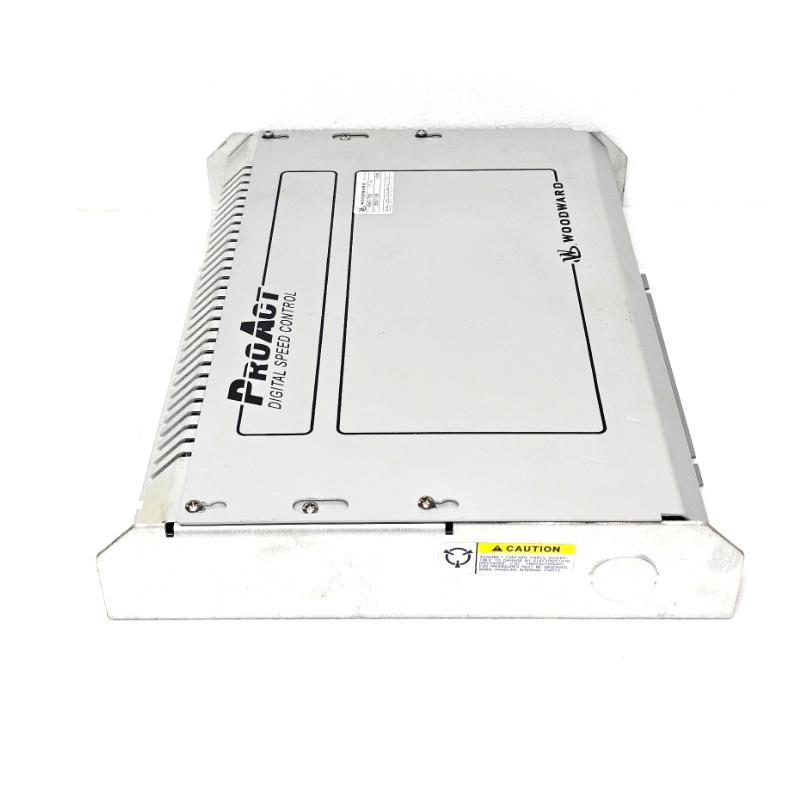

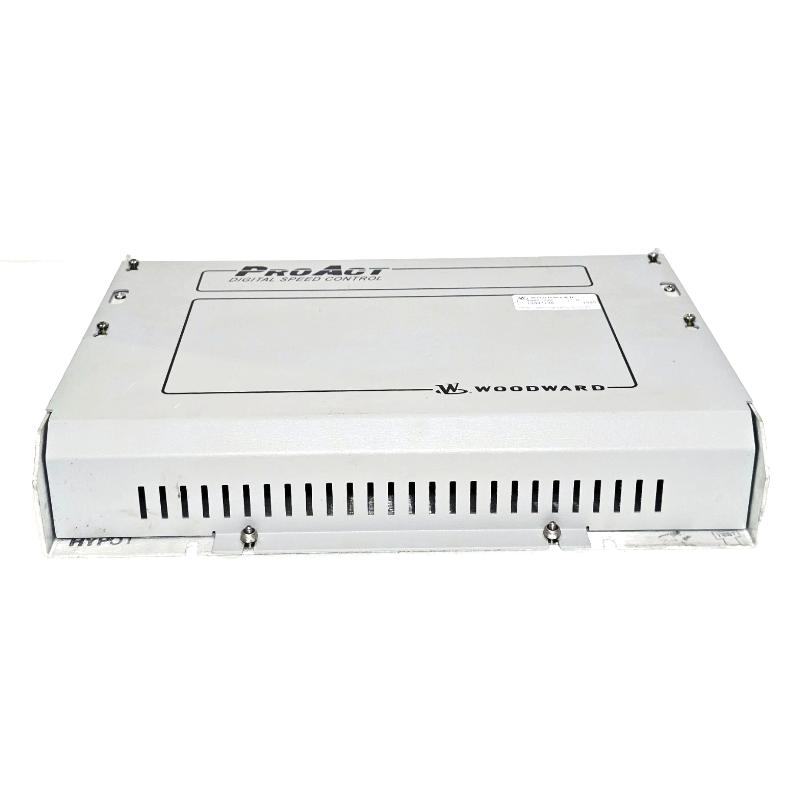

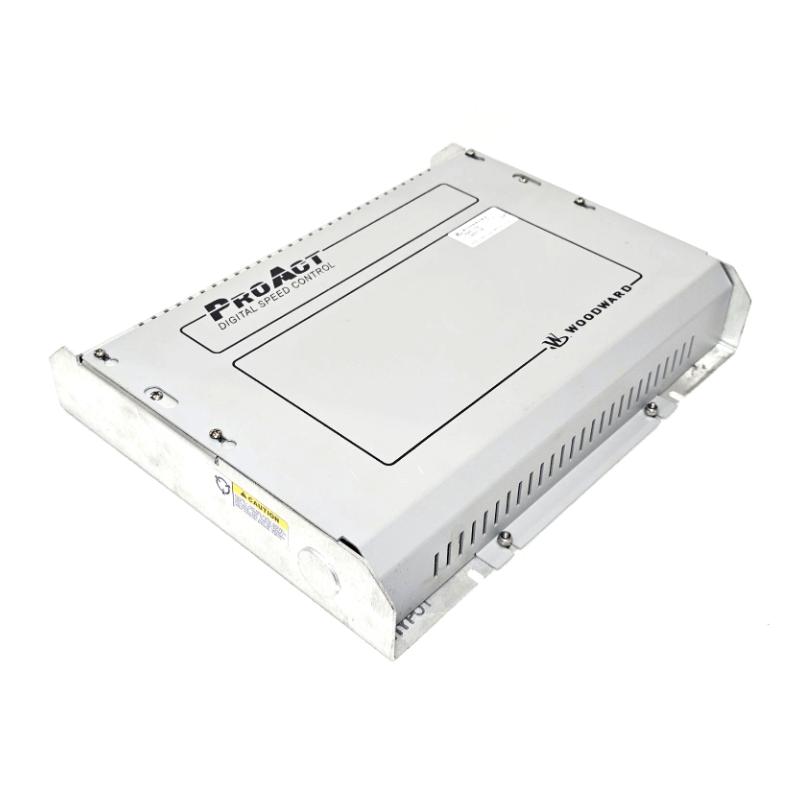

Woodward 9905-792 | Control Module Quality Selection

Overview

The Woodward 9905-792 is a control module designed for industrial engines, turbines, and compressor systems. It provides precise signal processing and output control for actuators, valves, and other field devices. The module is built for high reliability in industrial environments, supporting continuous operation and robust performance under demanding conditions.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Control Module
Series: Woodward 9900 Series
Function: Processes control signals and drives actuators or field devices
Applications: Gas turbines, steam turbines, large engine control, and industrial automation
Mounting: Panel or rack installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design optimized for continuous operation
Protection: Internal overvoltage, reverse polarity, and thermal safeguards
Signal Stability: Filtered outputs ensure precise and reliable actuator control

Communication & Interface

System Interface: Direct connection to Woodward control platforms
Input Signals: Supports analog and digital commands from system controllers
Output Signals: Provides regulated outputs to actuators and controlled devices
Diagnostics: LED indicators for module health, status, and fault detection
Connectivity: Industrial terminal blocks for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Construction: Industrial-grade PCB and components suitable for vibration and temperature stresses

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg

We provide verified new original parts, with full inventory and reliable service.
