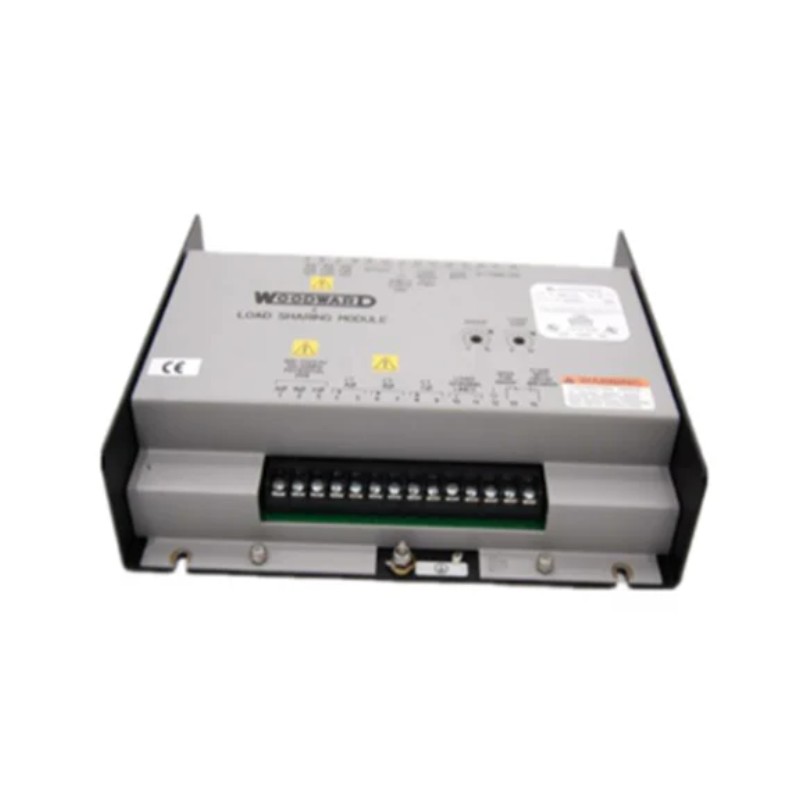

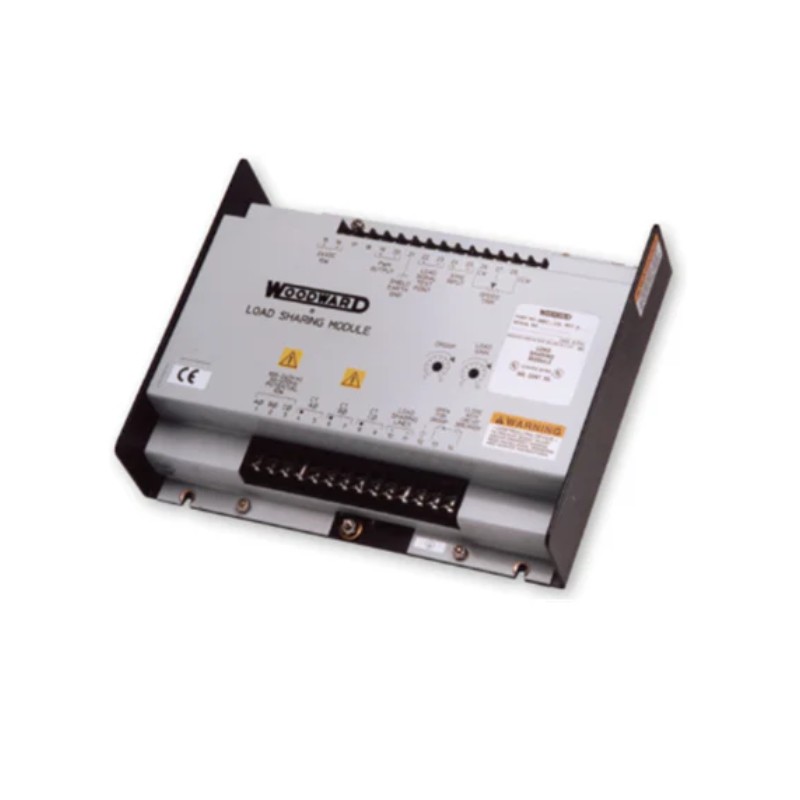

Woodward 8405-809 | Electronic Control Module Rave reviews

Overview

The Woodward 8405-809 is an electronic control module designed for industrial engine and turbine systems. It provides reliable signal processing, precise control outputs, and supports integration with Woodward control platforms. The module ensures consistent performance in demanding environments and is suitable for continuous-duty operation in industrial automation and power generation applications.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Electronic Control Module
Series: Woodward 8400 Series
Function: Processes control signals and provides stable outputs for actuators and system interfaces
Applications: Gas turbines, steam turbines, engine automation, and industrial process control
Mounting: Panel or rack installation within control cabinets

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design suitable for continuous operation
Protection: Internal overvoltage, reverse polarity, and thermal safeguards
Signal Integrity: Conditioned outputs for precise actuator and system control

Communication & Interface

System Interface: Connects directly to Woodward control systems
Input Signals: Accepts analog and digital commands from controllers
Output Signals: Provides regulated signals for actuators, valves, and other field devices
Diagnostics: LED indicators for module status, health, and fault detection
Connectivity: Industrial terminal connections for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Durability: Industrial-grade construction suitable for high-vibration, high-temperature environments
Compliance: Designed for continuous operation in critical process systems

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg

Genuine new stock available, customer service online all day for pricing and inquiries.
