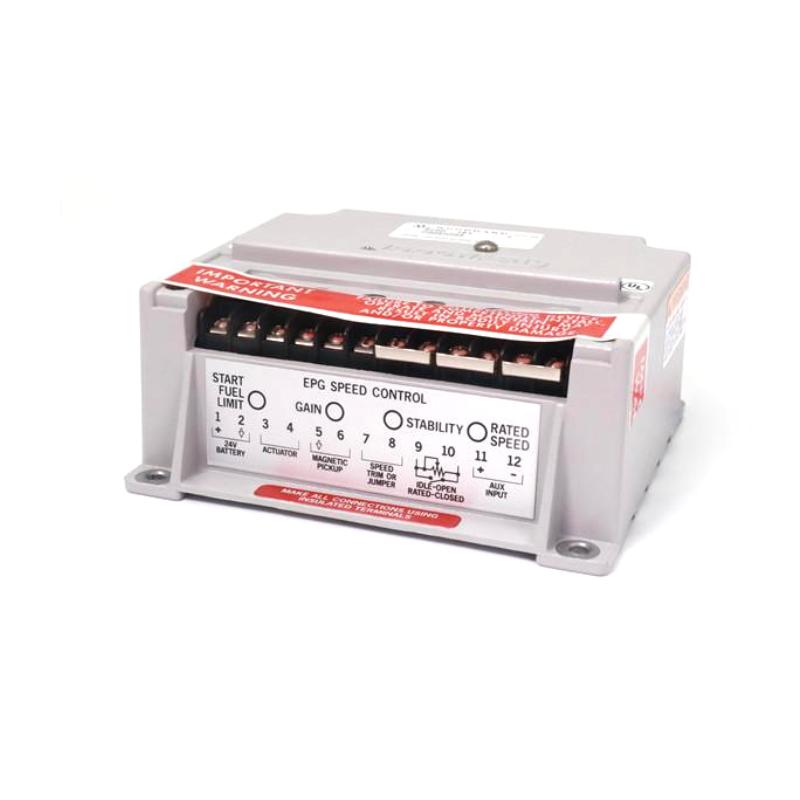

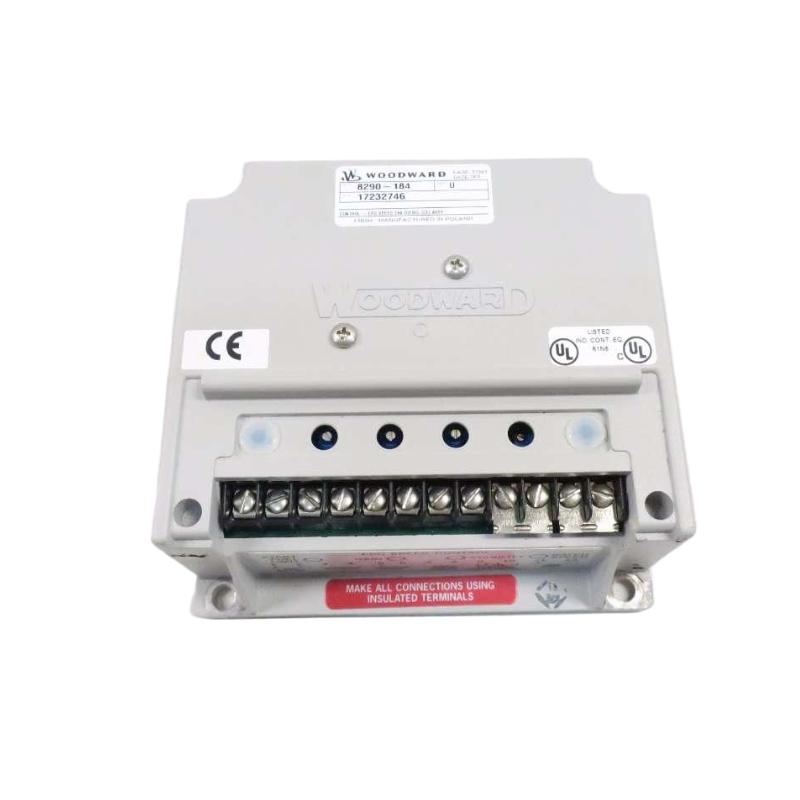

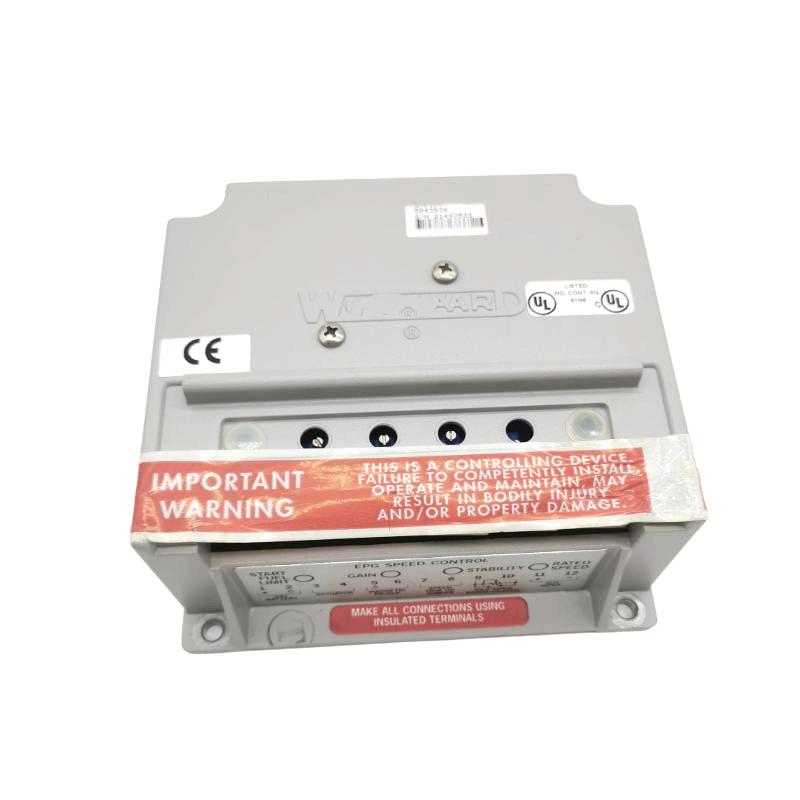

Woodward 8290-184 | Actuator Control Module Hot Items

Overview

The Woodward 8290-184 is an actuator control module designed for industrial engines, turbines, and compressor systems. It delivers precise and stable drive signals to actuators, valves, and other field devices, ensuring accurate process control. The module is built for continuous industrial operation and provides high reliability in demanding environments.

General Information

Brand: Woodward
Country of Origin: USA
Product Type: Actuator Control Module
Series: Woodward 8290 Series
Function: Generates controlled drive signals for actuators and controlled devices
Applications: Gas and steam turbines, large engine automation, industrial process control
Mounting: Panel or rack installation within industrial control enclosures

Power Specifications

Input Voltage: 24 VDC
Power Consumption: Low-power design optimized for continuous operation
Protection: Internal overvoltage, reverse polarity, and thermal safeguards
Signal Integrity: Filtered output ensures smooth and accurate actuator operation

Communication & Interface

System Interface: Connects to Woodward control systems
Input Signals: Accepts analog and digital commands from the controller
Output Signals: Drives actuators or control valves with regulated signals
Diagnostics: LED indicators for module health, communication, and fault status
Connectivity: Industrial terminal block for secure wiring

Environmental

Operating Temperature: −20°C to +70°C
Storage Temperature: −40°C to +85°C
Humidity: Up to 95% RH, non-condensing
Durability: Industrial-grade construction suitable for turbine rooms and engine control panels
Compliance: Designed for long-term operation in critical process environments

Dimensions & Weight

Dimensions: 160  × 100  × 40 mm
Weight: Approximately 0.45 kg

All products are new and original, with stock on hand and professional quote service.
