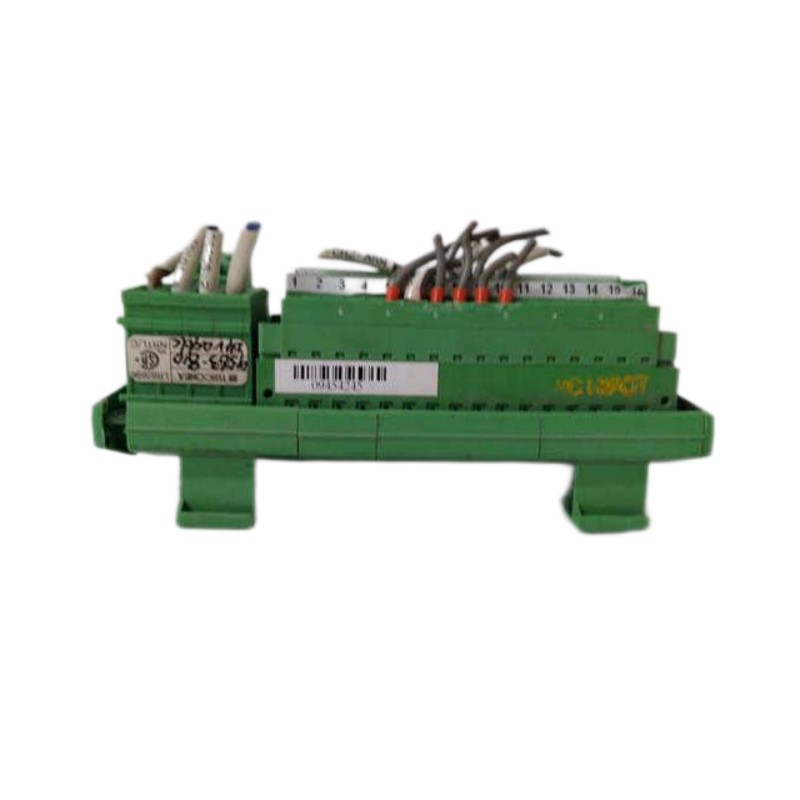

Triconex 9563-810 7760059030 | Digital Input Termination Panel 100% New

Overview

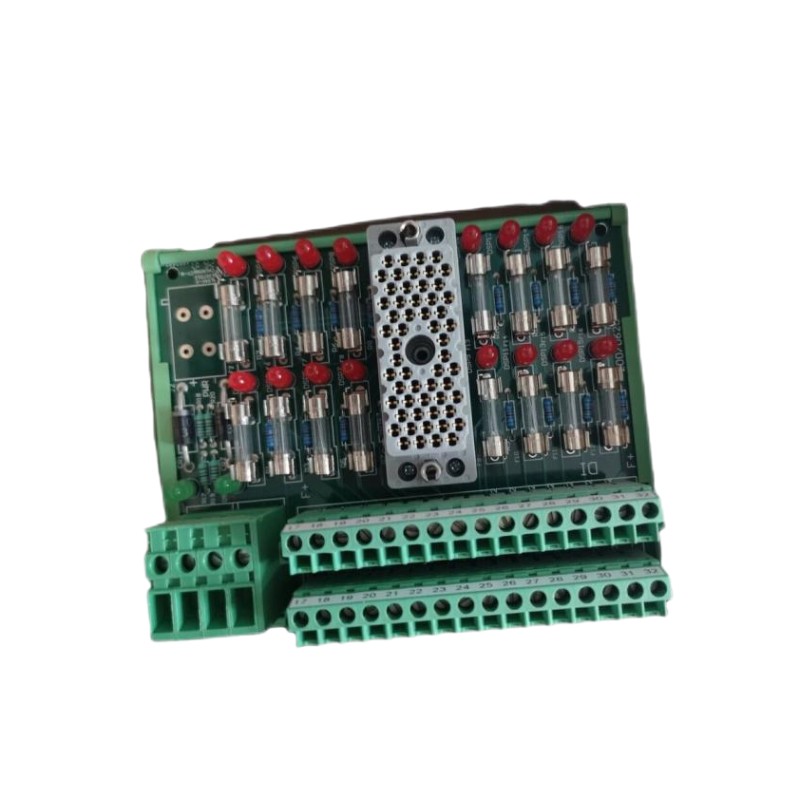

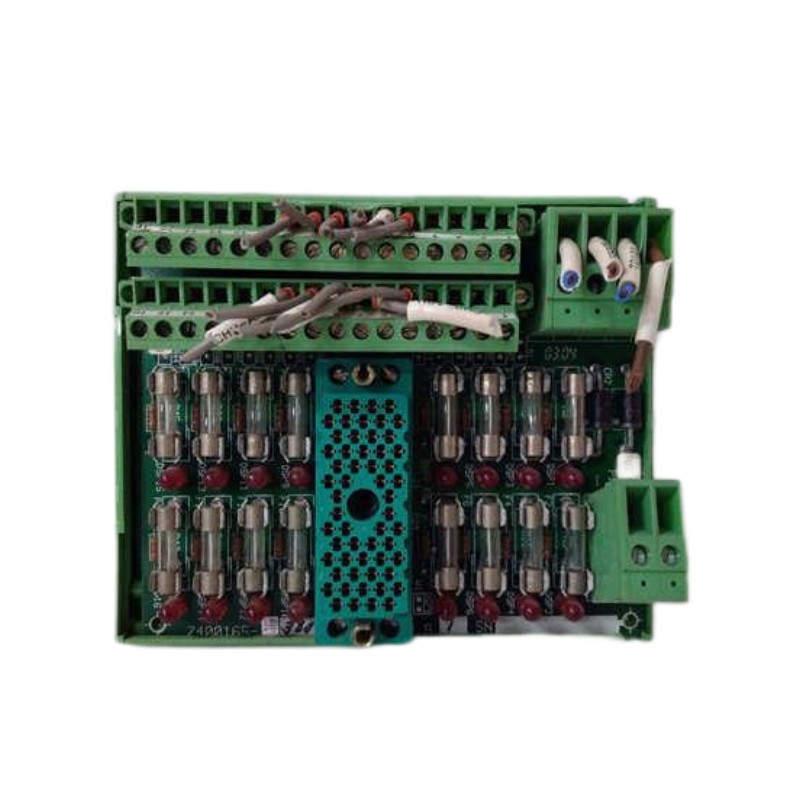

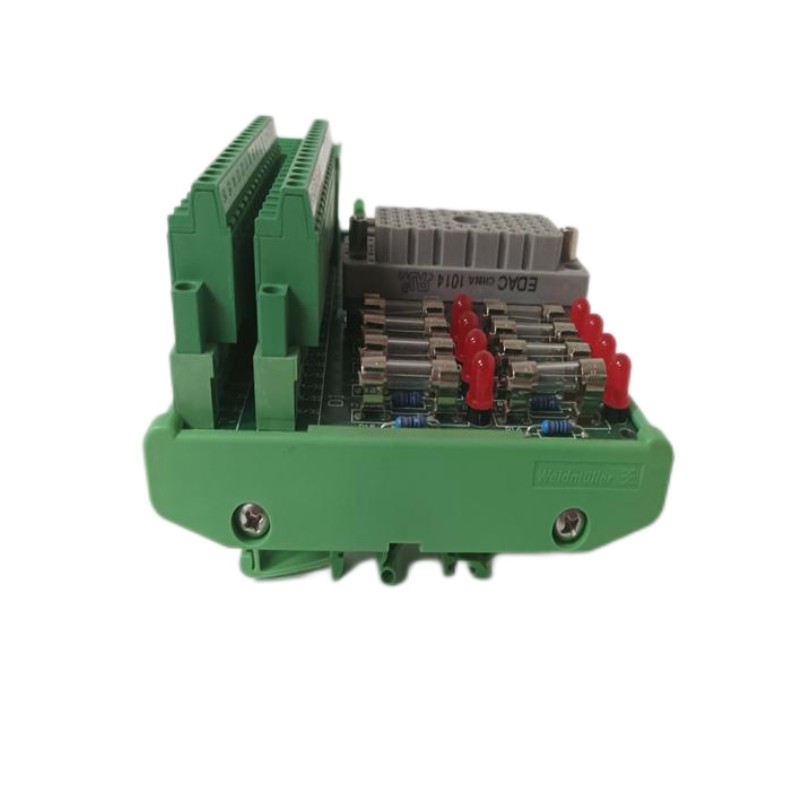

The Triconex 9563-810 is a digital input termination panel designed for use with 24V DC digital input modules in Triconex v9 and v10 systems. It provides 16 input points with commoned power terminals (PWR+ and PWR–), each protected by a fuse with a blown-fuse indicator. This panel is compatible with 32-point digital input modules, requiring two panels for each module.

General Information

• Model Number: 9563-810

• Type: Digital Input Termination Panel

• Compatibility: Triconex v9 and v10 systems

• Country of Origin: USA

Power Specifications

• Operating Voltage: 24V DC

• Power Terminals: Commoned (PWR+ and PWR–)

• Leakage Current per Point:

• Maximum: 3.3 mA

• Typical: 2.5 mA

• Fuse Protection: Each input point is protected by a fuse with a blown-fuse indicator

• Reason: Because stable and protected power ensures reliable operation in industrial environments.

Communication & Interface

• Interface Type: Terminal block connections for field wiring

• Number of Input Points: 16

• Function: Facilitates secure and organized wiring for digital input signals from field devices to the Tricon controller.

• Modules Compatible:

• 3503E: 24V AC/DC, commoned in groups of 8, TMR with self-test

• 3505E: 24V DC, low-threshold, commoned in groups of 8 with self-test, TMR

• Usage: Two termination panels are required for each 32-point module.

Environmental

• Operating Temperature Range: −40 °C to +70 °C

• Storage Temperature Range: −40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20

• Reason: Because industrial environments require robust and reliable controllers.

Dimensions & Weight

• Dimensions: Approximately 312  × 50  × 112 mm

• Weight: About 1.5 kg
