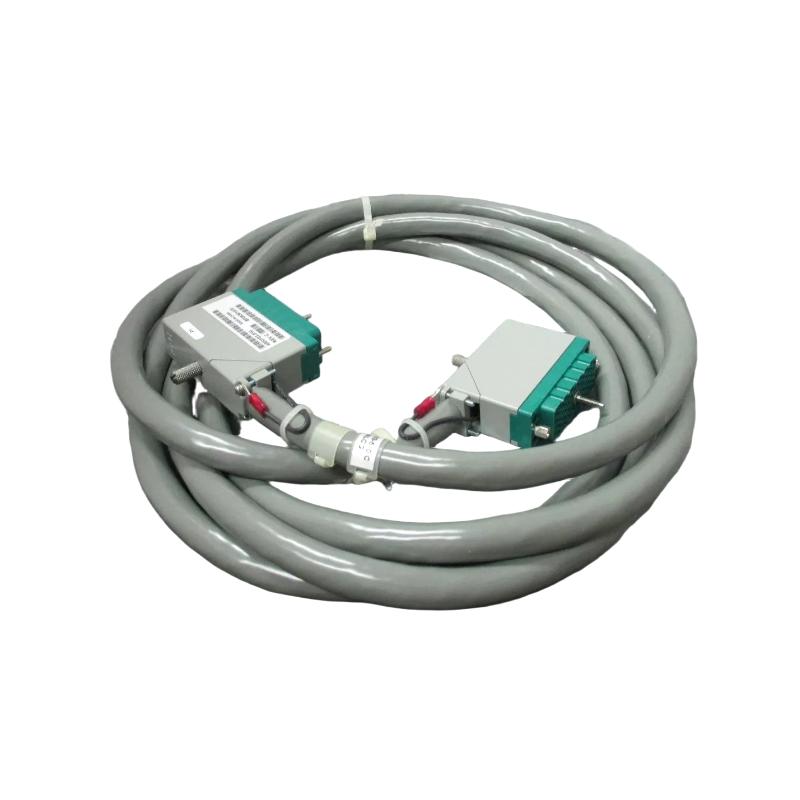

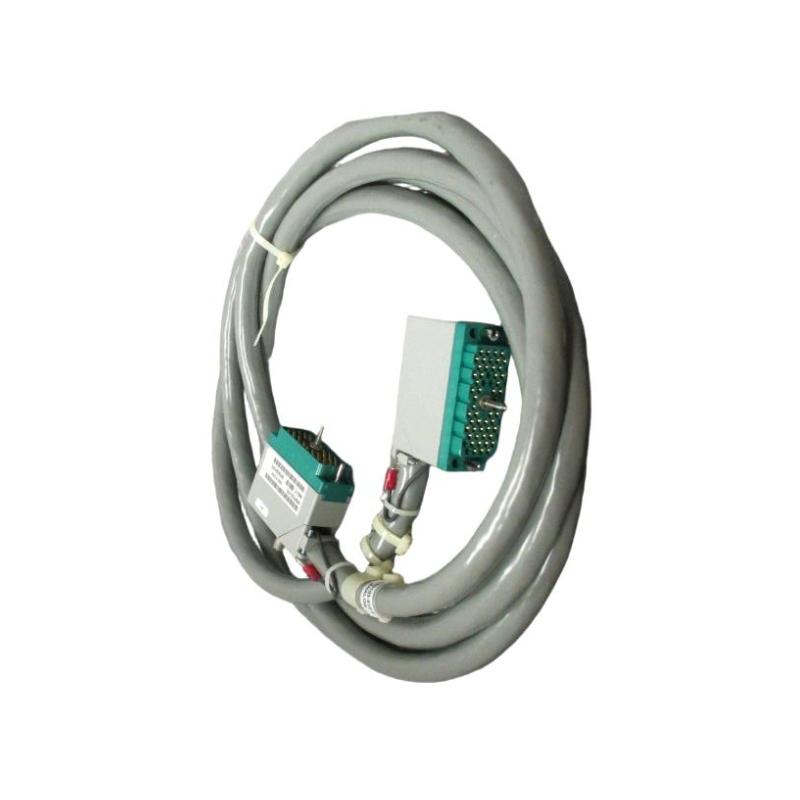

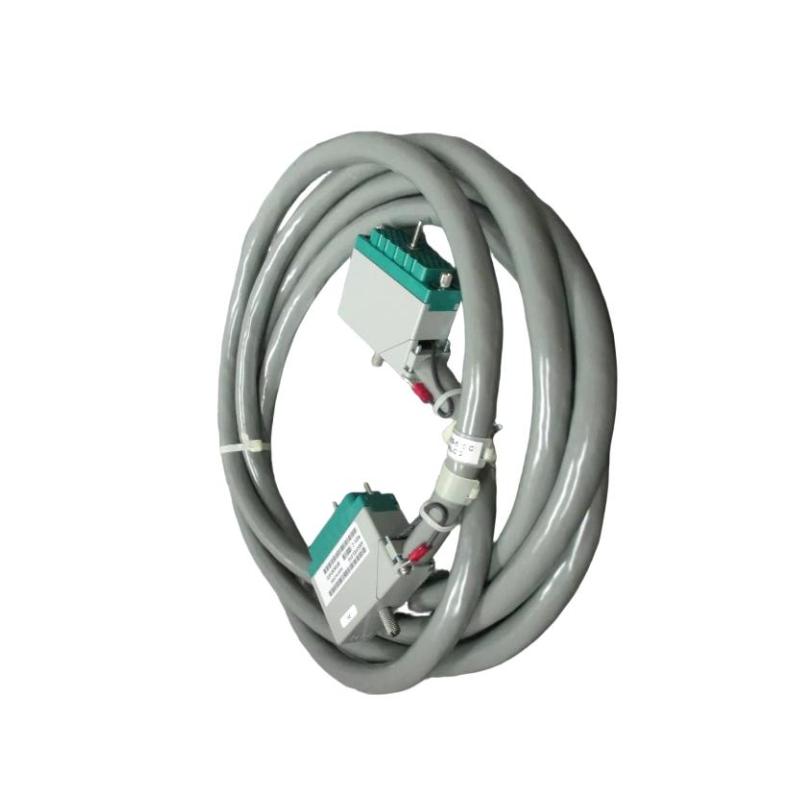

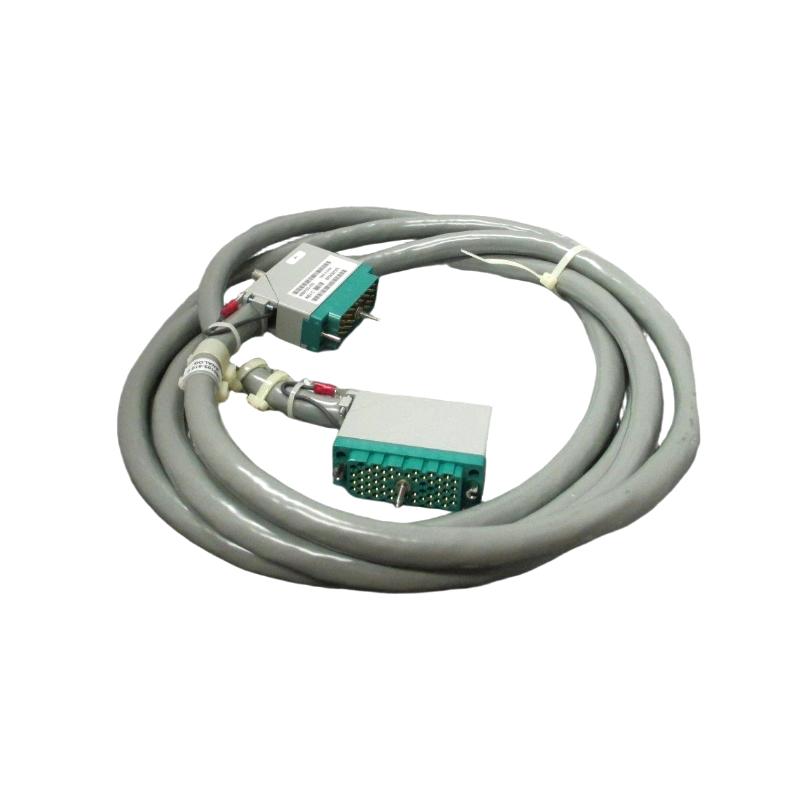

Triconex 9101-010F | Fanned-Out Cable for Digital I/O Modules Original

Overview
The Triconex 9101-010F is a fanned-out cable designed for Triconex Safety Instrumented Systems (SIS) to provide a reliable connection for digital input/output modules. It offers a flexible and cost-effective solution for linking field signals to the Tricon controller backplane because secure and organized wiring is critical for safety applications.

General Information

• Model Number: 9101-010F

• Type: Fanned-Out Cable

• Compatibility: Triconex digital I/O modules

• Country of Origin: USA

Power Specifications

• Power Supply: Powered through connected I/O modules

• Voltage Rating: Compatible with standard module I/O levels

• Reason: Because stable voltage delivery ensures proper signal transmission

Communication & Interface

• Connector Type: 56-pin female connector to Tricon controller backplane

• Number of Wires: 50 individually labeled 22 AWG tinned copper wires

• Cable Type: PVC jacket, suitable for industrial environments

• Maximum Length: Up to 27.4 m (90 ft) for remote connections

• Function: Provides organized and secure routing of digital signals from field devices to controller modules

• Diagnostics: Compatible with module-level diagnostics

Environmental

• Operating Temperature: −20 °C to +70 °C

• Storage Temperature: −40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: Suitable for installation inside industrial control cabinets

• Reason: Because industrial wiring must tolerate typical environmental variations

Dimensions & Weight

• Cable Length: Optional

• Weight: 3 kg

All items are verified new and original, available in stock for fast dispatch.
