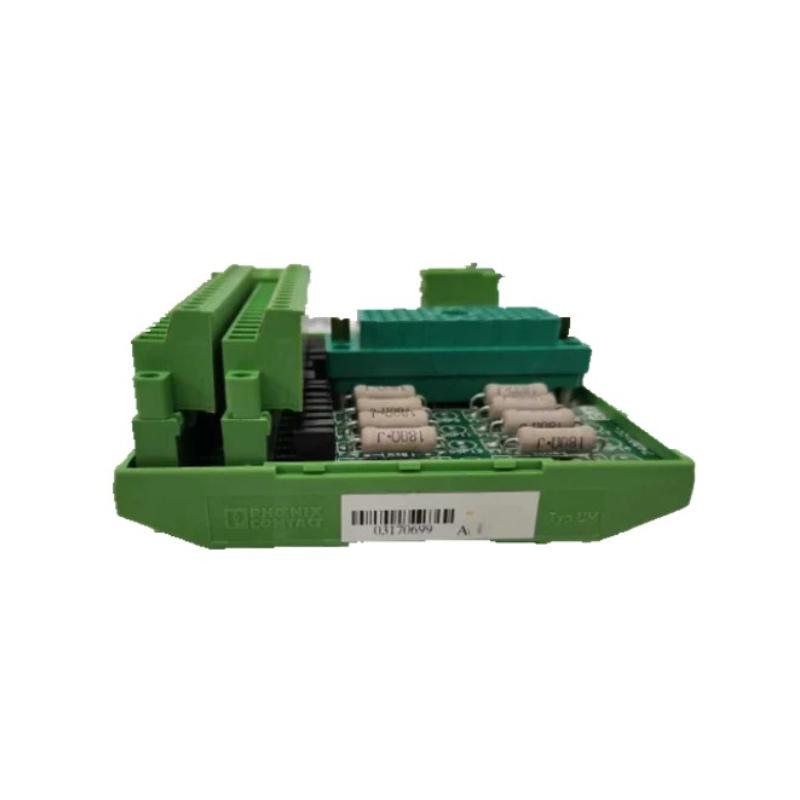

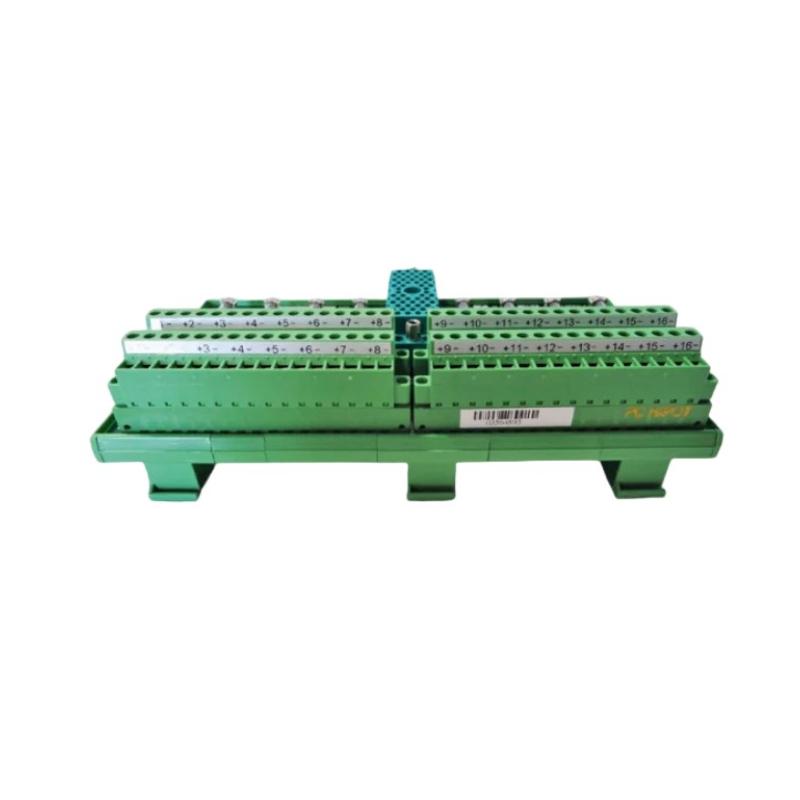

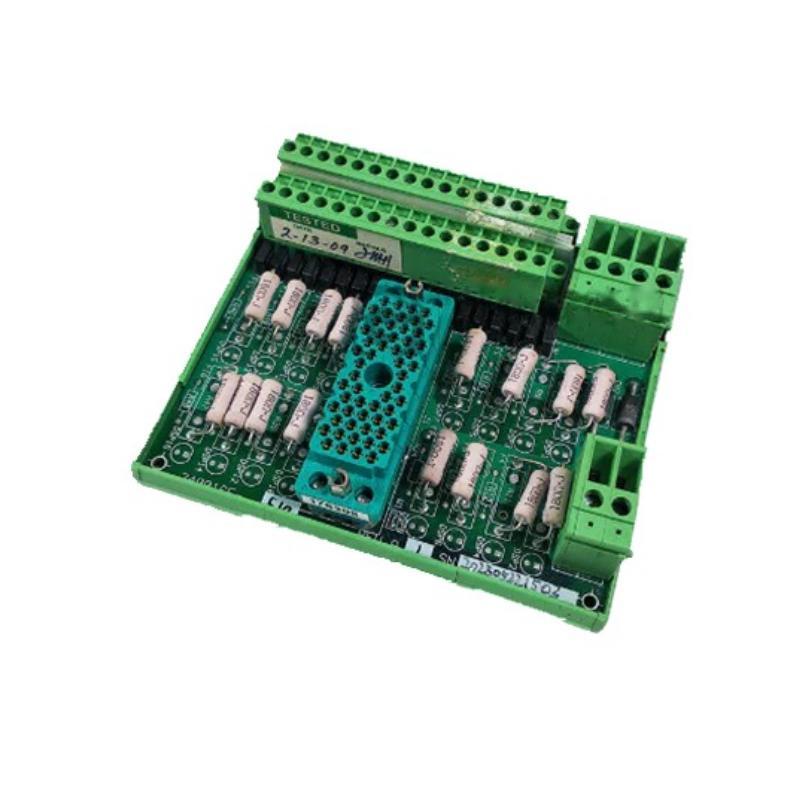

Triconex 3000520-380 external termination / interface module

Overview

The Triconex 3000520-380 is an external termination / interface module for Tricon safety systems. It provides secure field wiring termination for 24 VDC signals, designed for reliability in industrial safety environments.

General Information

• Part Number: 3000520-380

• Manufacturer: Triconex (Schneider Electric / Invensys)

• Series: Tricon 3000 Series

• Type: Interface / External Termination Panel Module

• Mounting: Chassis or cabinet external termination assembly

• Technology: Passive field termination with robustness against environmental and mechanical stress

Power Specifications

• Power Supply: 24 VDC

• Power Consumption: 20 W

• Input: 24 V digital signals from field devices to I/O modules

• Outputs: Terminated signals routed to Tricon I/O modules

• Protection: Built-in protection for field wiring (fusing or equivalent), designed for safe isolation

• Indicators: LED or indicator for module power and status monitoring

Communication & Interface

• Ethernet Port: None

• Microprocessor: None

• LAN Management: Not applicable

• Operator Interface: Terminals + status indicator LEDs

• Reset Features: Manual reset via wiring or fuse replacement

I/O & Channels

• Digital Input/Output Points: Supports multiple termination points for field I/O (exact channel count with matching I/O modules)

• External Load Support: Supports load current per I/O channel as per module ratings

Environmental

• Operating Temperature: -40 to +70 °C

• Storage Temperature: -40 to +85 °C

• Humidity: 0 to 95 % RH, non-condensing

• Other Environmental Resistance: Vibration and shock rated for industrial use

Dimensions

• Size (L × W × H): 200 × 150 × 60 mm

• Weight: ~ 0.33 kg
