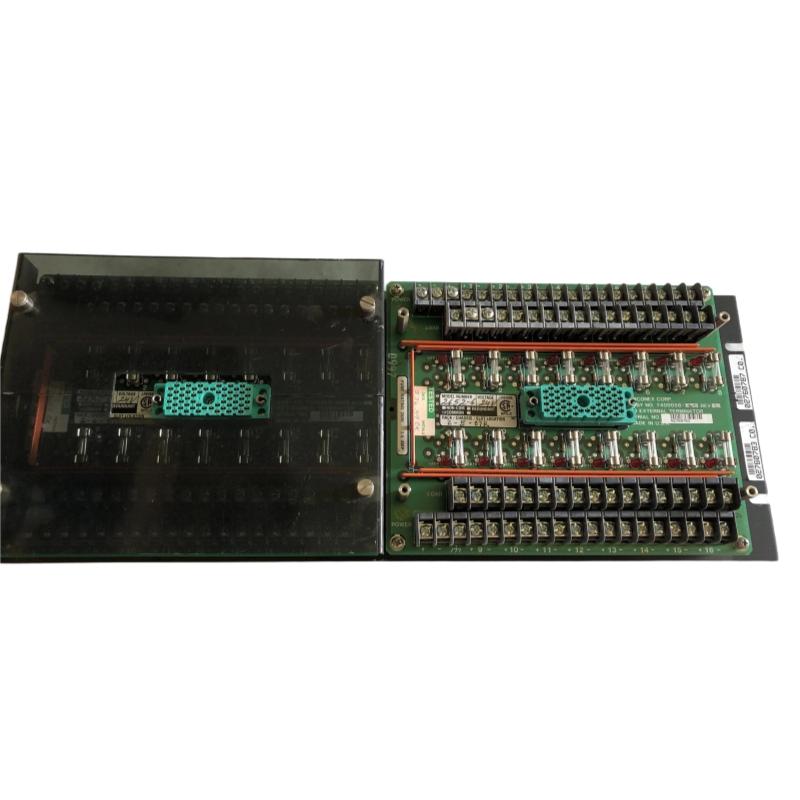

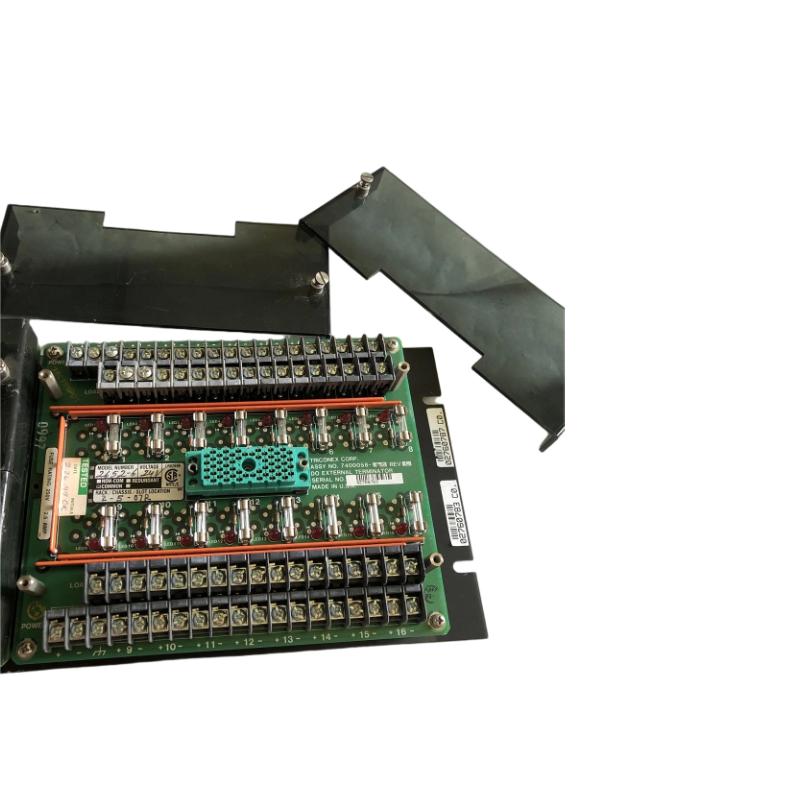

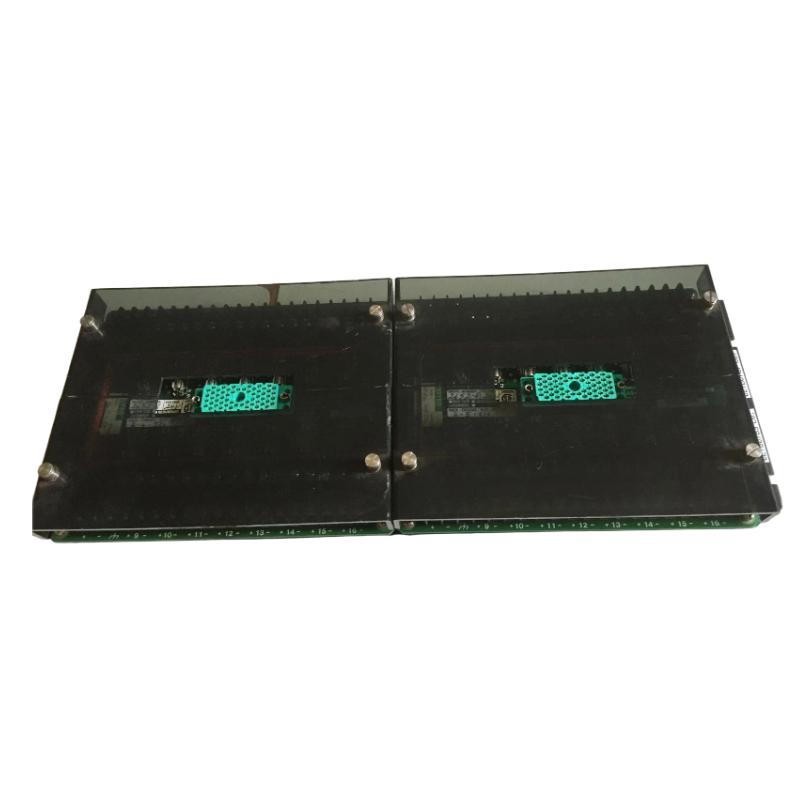

Triconex 3000120-380 Digital Output Termination Panel

Overview

The Triconex 3000120-380 is a digital output termination panel designed for Tricon safety systems. It provides reliable 24 V DC digital output interfacing between the Tricon system and field devices, ensuring secure connections and supporting high-integrity safety applications.

General Information

• Part Number: 3000120-380

• Manufacturer: Triconex (Schneider Electric)

• Series: Tricon 3000 Series

• Type: Digital Output Termination Panel

• Mounting: Cabinet or chassis installation

• Technology: Passive termination with integrated output channel protection

Power Specifications

• Power Supply: 24 V DC

• Power Consumption: < 8 W

• Input: Digital output drive signals from Tricon I/O modules

• Outputs: 64 x 24 V DC digital outputs

• Protection: Individual channel fuse protection

• Indicators: Fuse blown indicators per channel

Communication & Interface

• Ethernet Port: None

• Microprocessor: None

• LAN Management: Not applicable

• Operator Interface: LED fuse status indicators

• Reset Features: Fuse replacement required for recovery

I/O & Channels

• Digital Output Channels: 64

• Output Voltage: 24 V DC

• Channel Current Rating: 0.5 A per channel

• External Load Support: Resistive and inductive loads supported

Environmental

• Operating Temperature: -20 to +70 °C

• Storage Temperature: -40 to +85 °C

• Humidity: 5% to 95% RH, non-condensing

Dimensions

• Size: 280 × 220 × 70 mm

• Weight: 1.1 kg
