Triconex 3000510-180 Field Termination Panel 30-Day Returns！

Overview

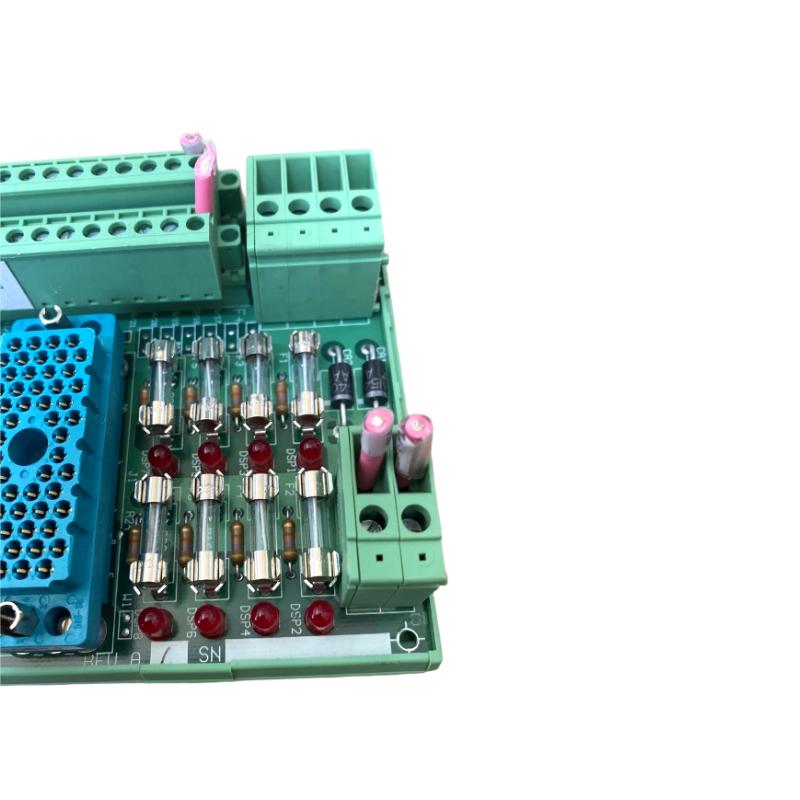

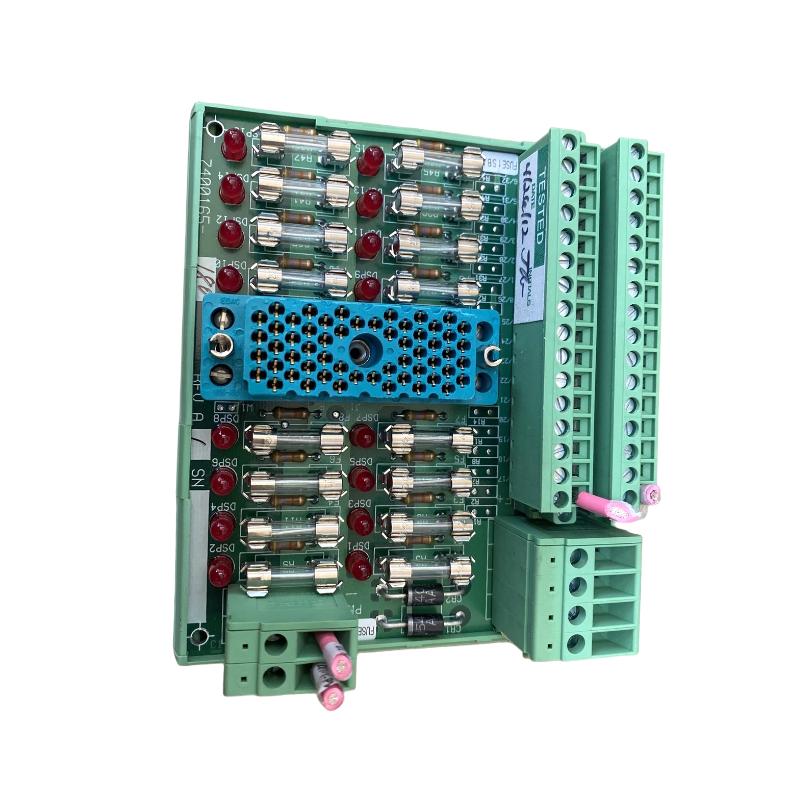

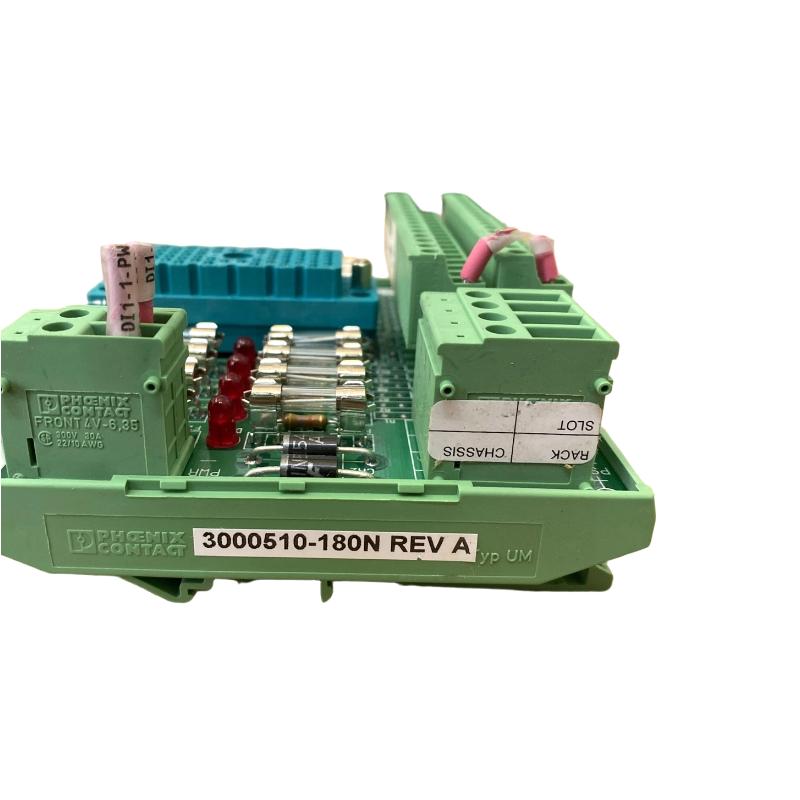

The Triconex 3000510-180 is a field termination panel designed to interface cleanly and safely between field wiring and the Tricon modular I/O units. Featuring multiple fused input points and DIN-rail mounting compatibility, it streamlines wiring complexity and enhances system maintainability in safety-critical control environments.

General Information

• Part Number: 3000510-180

• Manufacturer: Triconex (Schneider Electric)

• Series: Tricon Modular Safety System

• Type: Field Termination Panel / Terminal Board

• Mounting: DIN-rail or panel installation within Tricon distribution cabinets

• Technology: Passive wiring consolidation with integrated fuse protection

Power & Electrical

• Signal Type: 115 V DC digital inputs from field devices into Tricon I/O modules

• Input Protection: Each input point is safeguarded by an individual fuse, with visible blown-fuse indication

• Power Terminals: Commoned PWR+ and PWR- rails for module power distribution

• Safety Capability: Enhances I/O circuit protection and simplifies troubleshooting in high-integrity setups

I/O & Channels

• Input Points: 16 fused digital input channels

• Compatibility: Optimized for use with Tricon 115 V DC digital input modules; two panels required for 32-point modules

• Design Purpose: Modular and compact terminal interface to minimize wiring errors and system downtime

Physical Details

• Dimensions: Approximately 12.7 cm × 5.1 cm × 12.7 cm

• Weight: Around 0.3 kg (lightweight for easy handling)

• Construction: Rugged DIN-rail format ensures secure and space-efficient panel integration

Environmental & Reliability

• Environment: Engineered for industrial control cabinet installations with consistent performance

• Reliability Features: Facilitates hot-swap operations and rapid diagnostics, supporting safety requirements and system uptime

Applications

This panel is ideal for:

• Cleanly terminating field wiring into Tricon safety I/O systems

• Applications in oil & gas, petrochemical, power generation, and process industries

• Scenarios demanding safe, maintainable, and high-availability system wiring architectures
