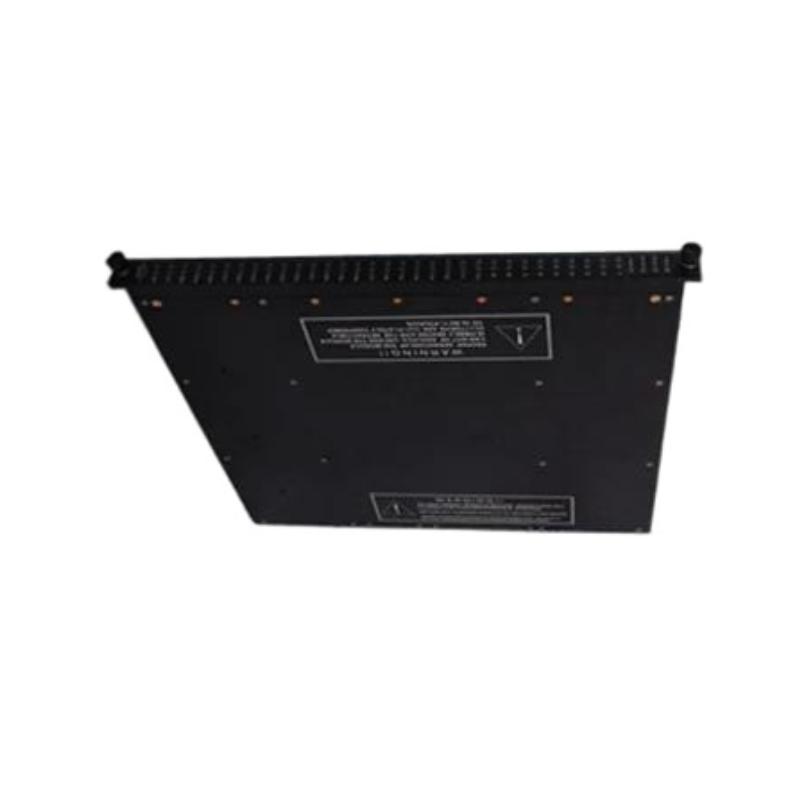

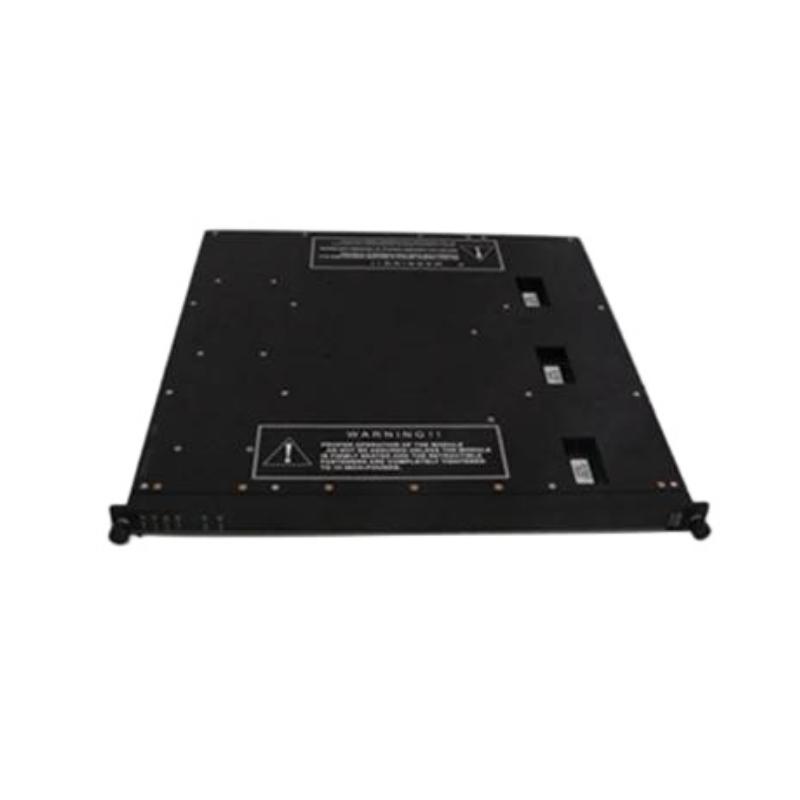

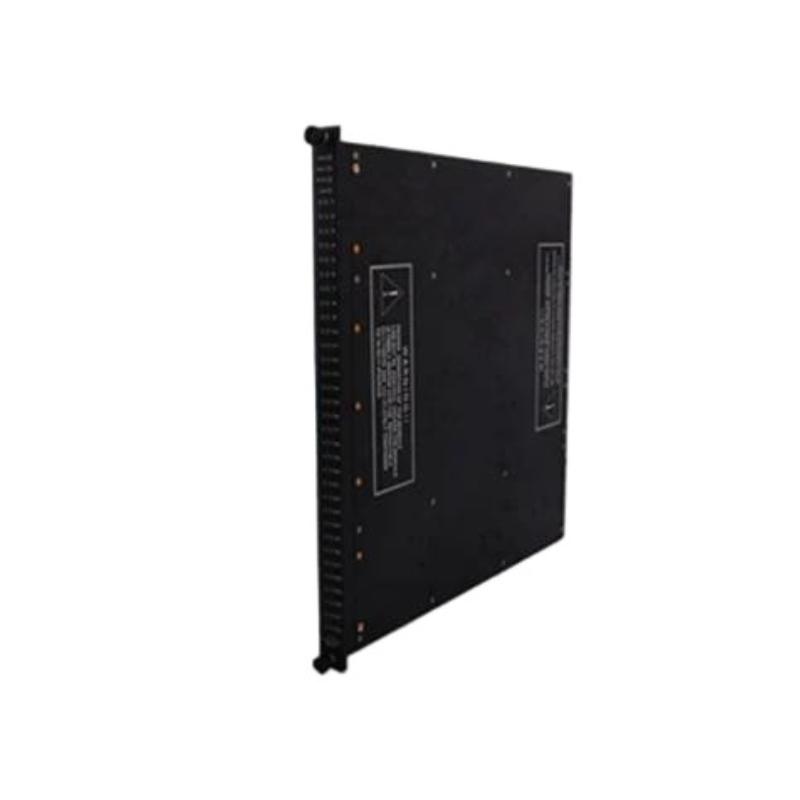

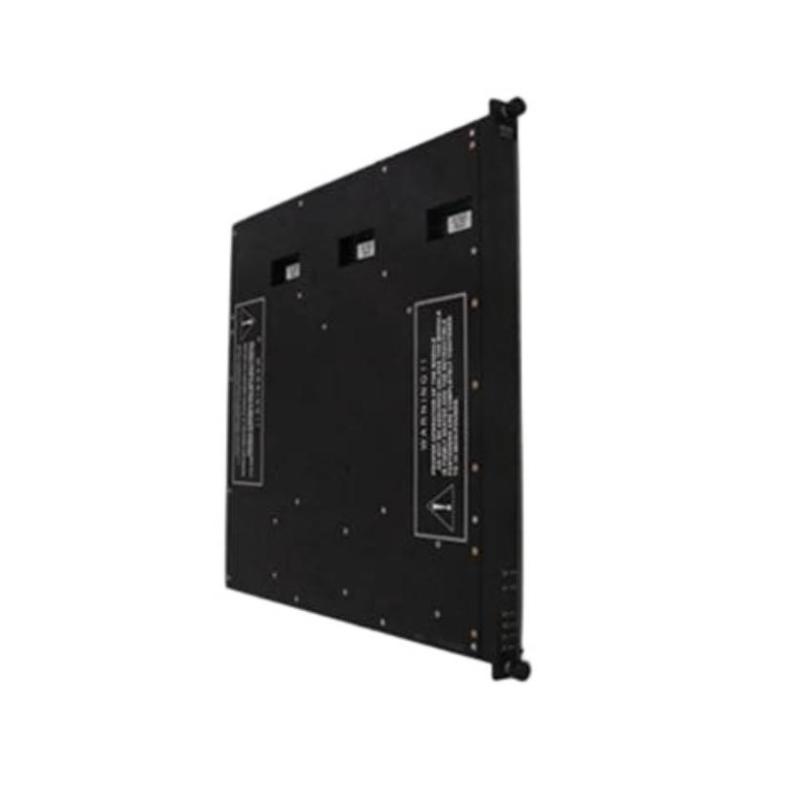

Triconex 3000142-220 power supply module Trusted supplier

Overview

The Triconex 3000142-220 is a robust power supply module engineered for Tricon safety systems. It converts wide-range AC input power into regulated 24 V DC output to reliably supply logic power for processors and I/O modules in safety-critical environments.

General Information

• Part Number: 3000142-220

• Manufacturer: Triconex (Schneider Electric)

• Series: Tricon Safety System (3000 Series)

• Type: AC-to-DC Power Supply Module for safety systems

• Mounting: Chassis plug-in within Tricon module racks

Power Specifications

• Input Voltage Range: 85 V to 264 V AC

• Input Current Range: 0.5 A to 2.5 A AC

• Output Voltage: 24 V DC

• Output Current Range: 0 A to 10 A DC

• Power Output: Up to 240 W

• Efficiency: Approximately 90%

Key Features

• Handles a broad AC supply range to suit different installation conditions

• Galvanically isolated input and output enhances system safety

• Compact, lightweight design facilitating easy installation and maintenance

• High reliability suitable for continuous operation in critical environments

Applications

This module is ideally suited for sectors such as:

• Process automation

• Oil & gas facilities

• Power generation systems

• Chemical processing plants

• Water & wastewater treatment

• Solar and wind energy systems

• Emergency backup power

• Building automation

• Remote monitoring setups

• Medical and transportation systems requiring dependable 24V DC power

Dimensions & Form Factor

• Width: 19 in (483 mm)

• Height: 17 in (432 mm)

• Depth: 3.75 in (95 mm)

• Compact size ensures efficient use of rack space and ease of integration
