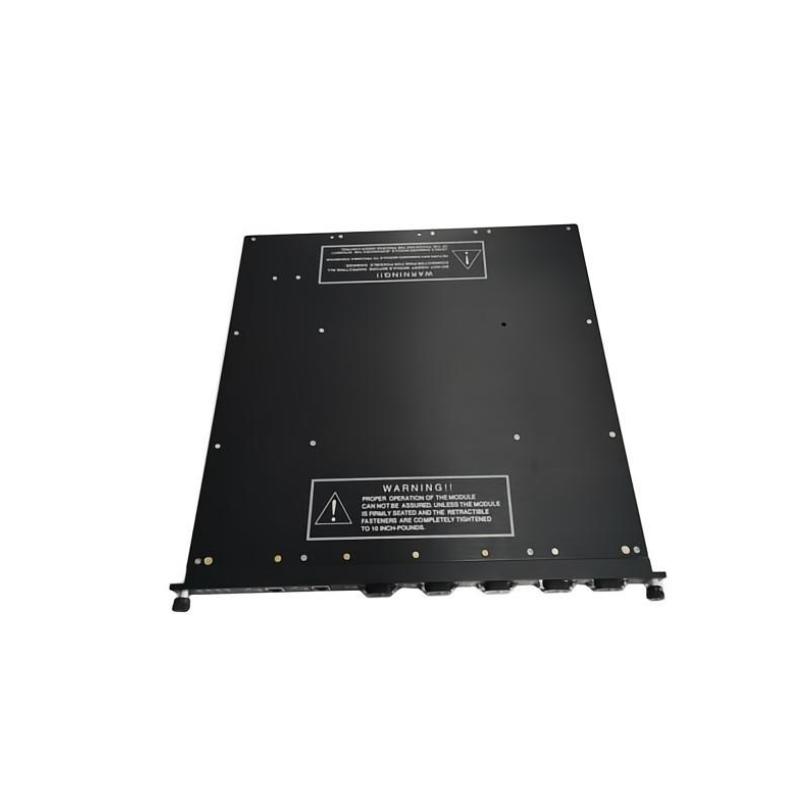

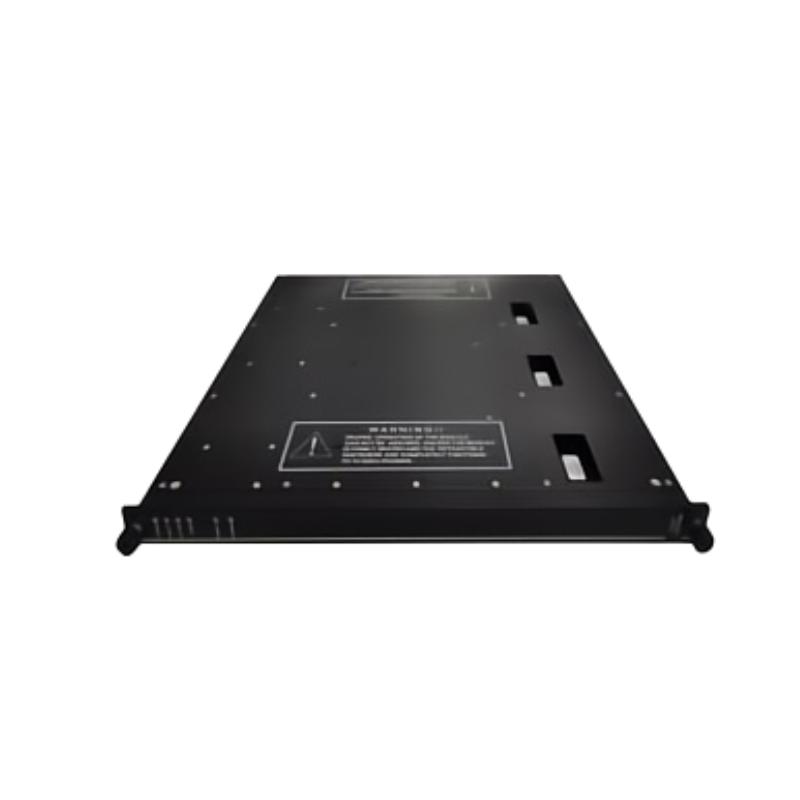

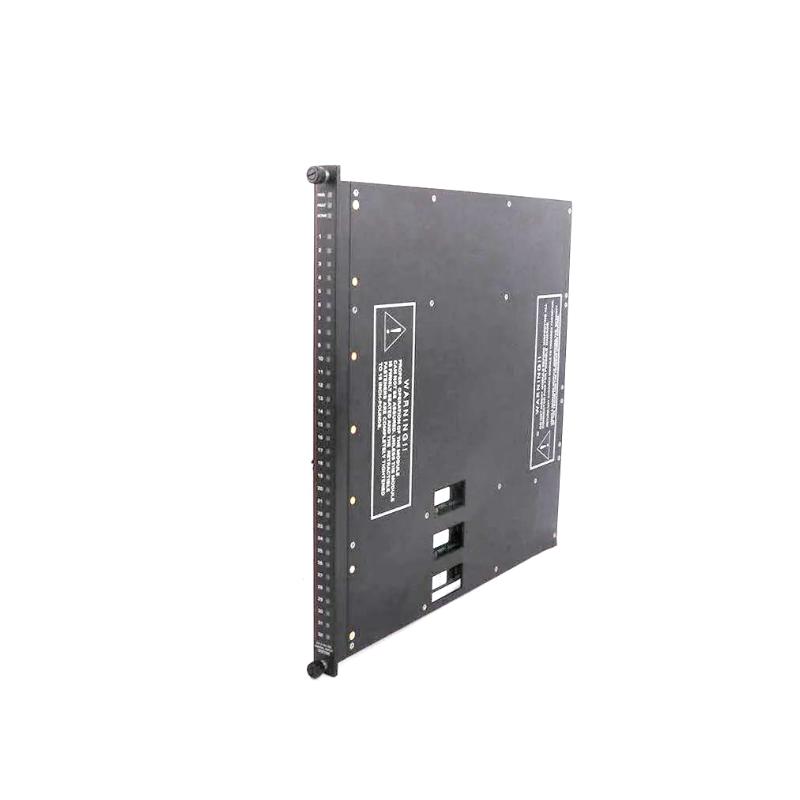

Triconex 8100-8 Processor Module Efficient delivery

Overview

The Triconex 8100-8 is a high-reliability safety system module used in critical industrial applications. It is part of the Triconex 3000/8000 series, providing redundant, fault-tolerant control for safety instrumented systems (SIS), ensuring continuous operation and protection in process industries.

General Information

• Part Number: 8100-8

• Manufacturer: Schneider Electric (Triconex)

• Product Model: 8100-8

• Series: Triconex 8000 Series

• Module Type: Safety Controller / Processor Module

• Country of Origin: United States

• Mounting: Rack-mounted in Triconex 8000 system chassis

Power Specifications

• Supply Voltage: 24 V DC nominal

• Power Consumption: ≤ 12 W

• Input Source: System backplane

• Protection: Surge, short-circuit, and reverse-polarity protection

• Indicators: LED indicators for power, system status, and fault

Communication & Interface

• Communication Protocol: Triconex proprietary redundant bus

• Functionality: Executes safety logic, monitors input/output modules, and manages redundant controllers

• Diagnostics: Continuous self-monitoring, fault detection, and automatic failover

• Operator Interface: Status LEDs, module configuration via Triconex Workbench software

Environmental

• Operating Temperature: 0 °C to +60 °C

• Storage Temperature: -40 °C to +85 °C

• Humidity: 5% to 95% RH, non-condensing

• Protection Rating: IP20 (suitable for standard industrial cabinet installation)

Dimensions & Weight

• Dimensions (L × W × H): 234 × 27 × 112 mm

• Weight: ~0.35 kg
