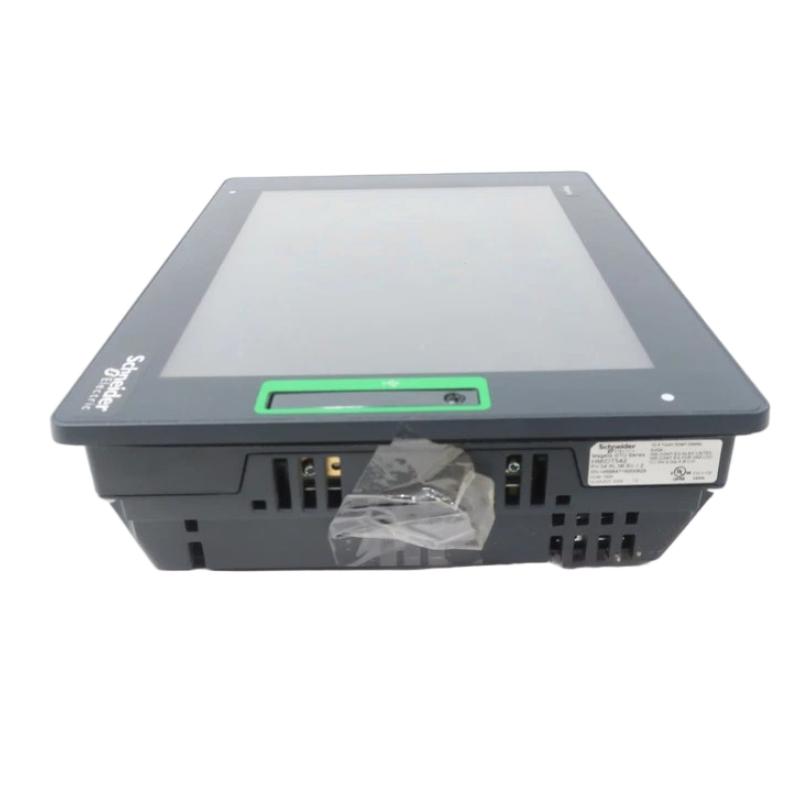

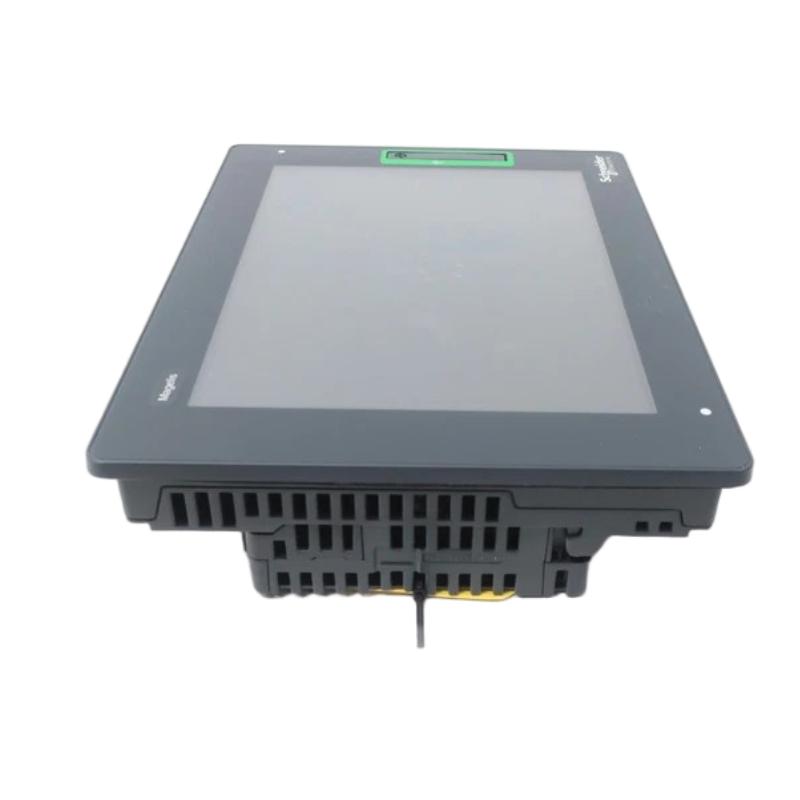

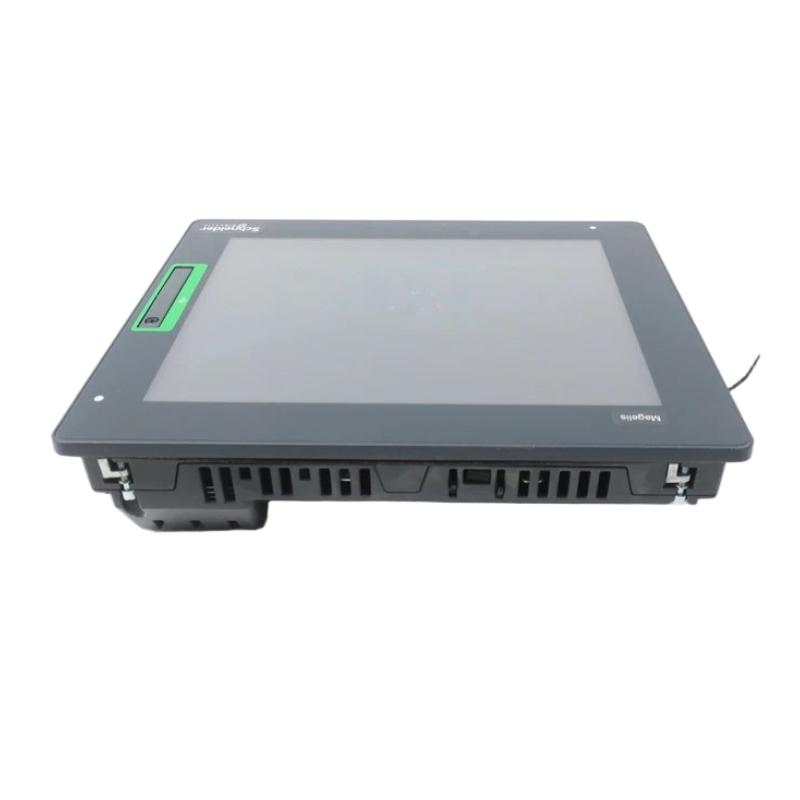

Schneider HMIDT542 Smart Touch Screen Panel

Overview

The Schneider HMIDT542 is a smart touch screen panel designed for industrial automation and machine interface applications. It provides an intuitive operator interface with responsive touch control, clear visualization, and reliable performance for monitoring and controlling industrial processes.

The HMIDT542 is suitable for applications requiring compact design, efficient operation, and stable communication between operators and automation systems.

General Information

Part Number: HMIDT542

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Harmony HMI Display Series

Type: Smart Touch Screen Panel

Application: Industrial automation, machine control, and process monitoring

Mounting: Panel mounting installation

Touch Technology: Capacitive touch interface

Display Function: Operator visualization and interactive control

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Approx. 20 W

Power Input: Industrial DC power supply

Protection Features: Electrical protection and stable power management

Power Connection: Dedicated DC input interface

Status Indication: Power and system operation monitoring

Communication & Interface

Display Interface: Industrial display connection

Touch Interface: USB touch communication interface

Communication Support: Compatible with industrial automation control platforms

Operator Control: Responsive touch operation for machine interaction

Configuration: Managed through connected HMI software

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −20 to +60 °C

Humidity: 10 to 85% RH, non-condensing

Protection Rating: IP65 front panel protection

Installation Environment: Suitable for industrial cabinets and automation equipment

Resistance: Designed for continuous operation in industrial environments

Dimensions & Weight

Dimensions (L × W × H): 272.5 × 214.5 × 67 mm

Weight: Approx. 2.7 kg
