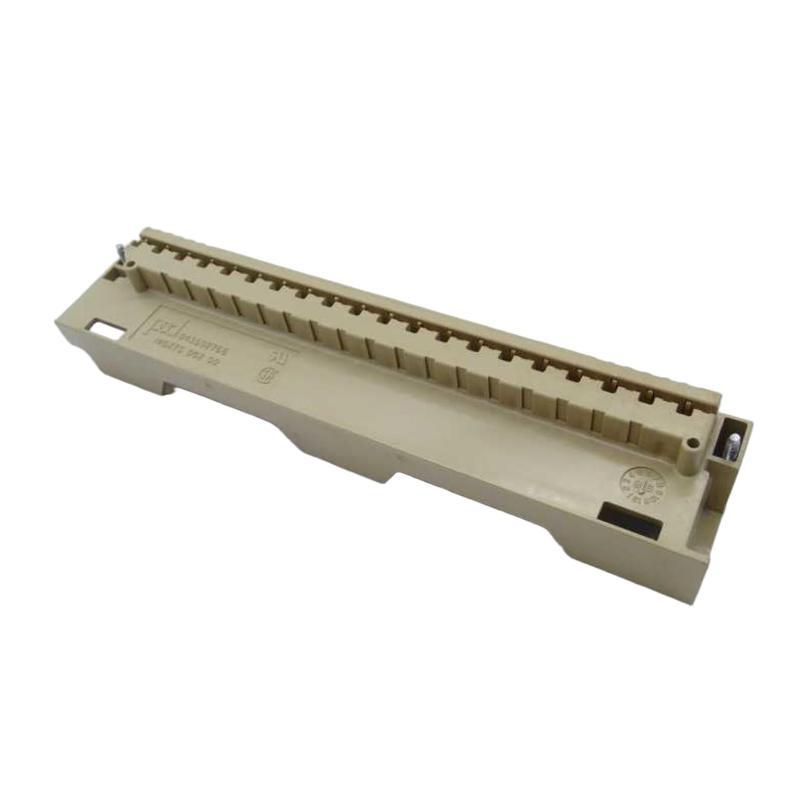

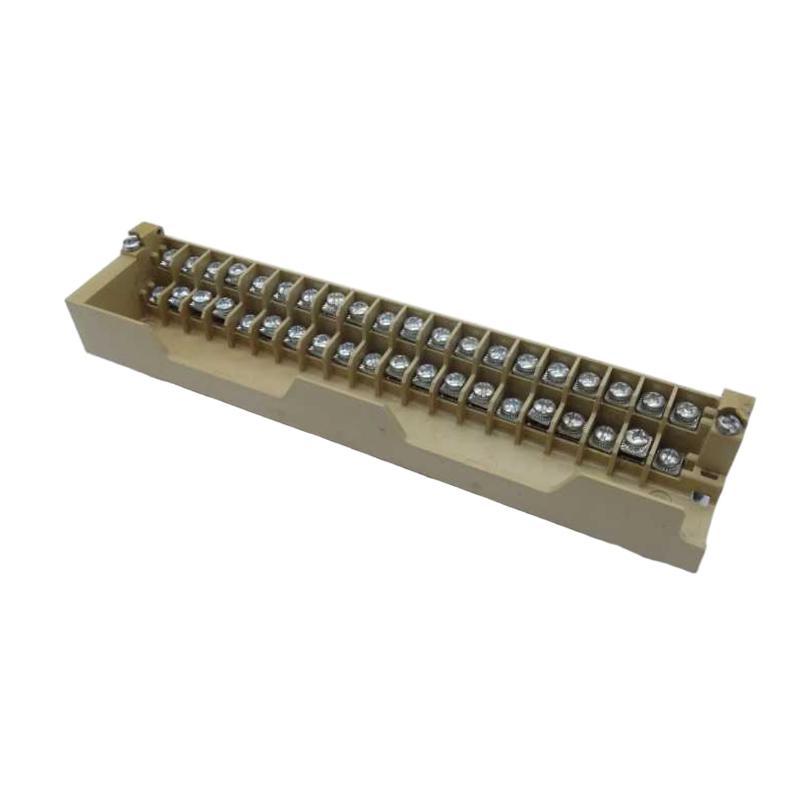

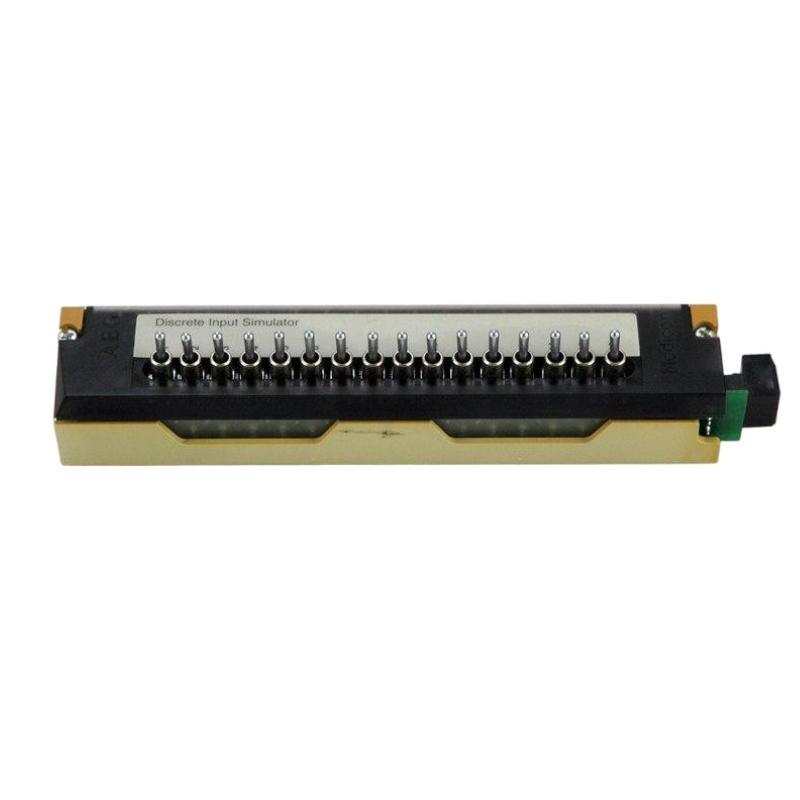

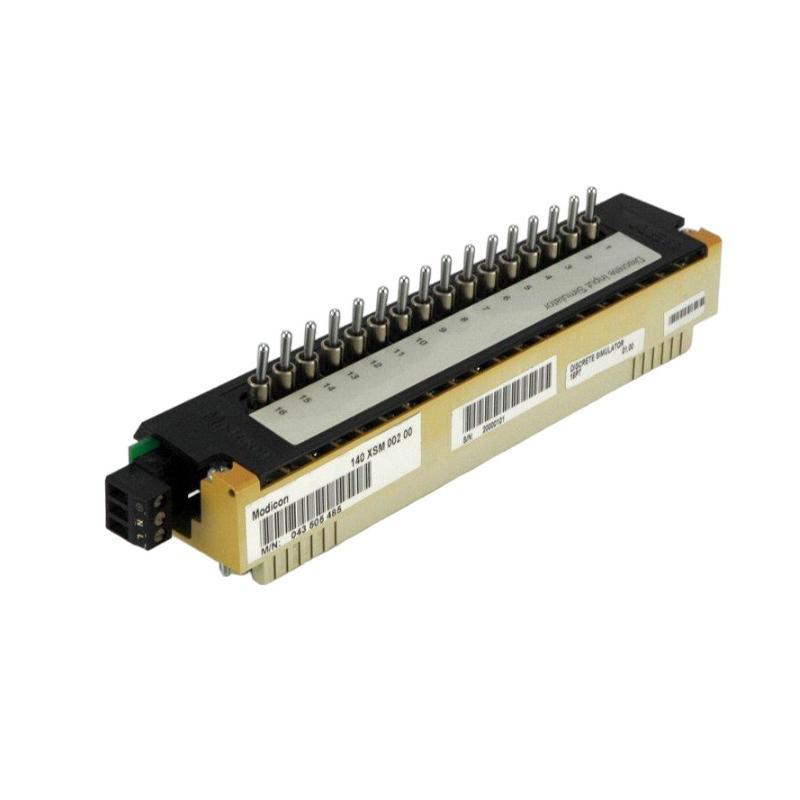

Schneider 140XSM00200 16-Channel Switch Logic Input Simulator

Overview

The Schneider 140XSM00200 16-Channel Switch Logic Input Simulator is designed for Modicon automation systems to simulate digital input signals during testing and commissioning. It provides a convenient way to verify PLC logic operation, troubleshoot programs, and perform system diagnostics without external field devices.

General Information

Brand: Schneider

Country of Origin: France

Manufacturer: Schneider Electric

Part Number: 140XSM00200

Series: Modicon Quantum

Type: 16-Channel Switch Logic Input Simulator

Application: PLC testing, commissioning, and troubleshooting

Function: Simulates discrete input signals for control system verification

Channels: 16 digital input simulation channels

Installation: Modicon Quantum system integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power operation

Input Simulation: Manual switch-based digital signal generation

Protection: Designed for industrial testing environments

Indicators: Channel status indication through switch operation

Communication & Interface

Communication Type: No direct communication interface

Channel Configuration: 16 independent switch logic inputs

Signal Type: Digital ON/OFF simulation signals

Connection Interface: Compatible with Modicon Quantum I/O systems

Application Function: Supports PLC input testing and signal verification

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinet

Vibration Resistance: Suitable for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 35 × 147 × 86 mm

Weight: 0.23 kg
