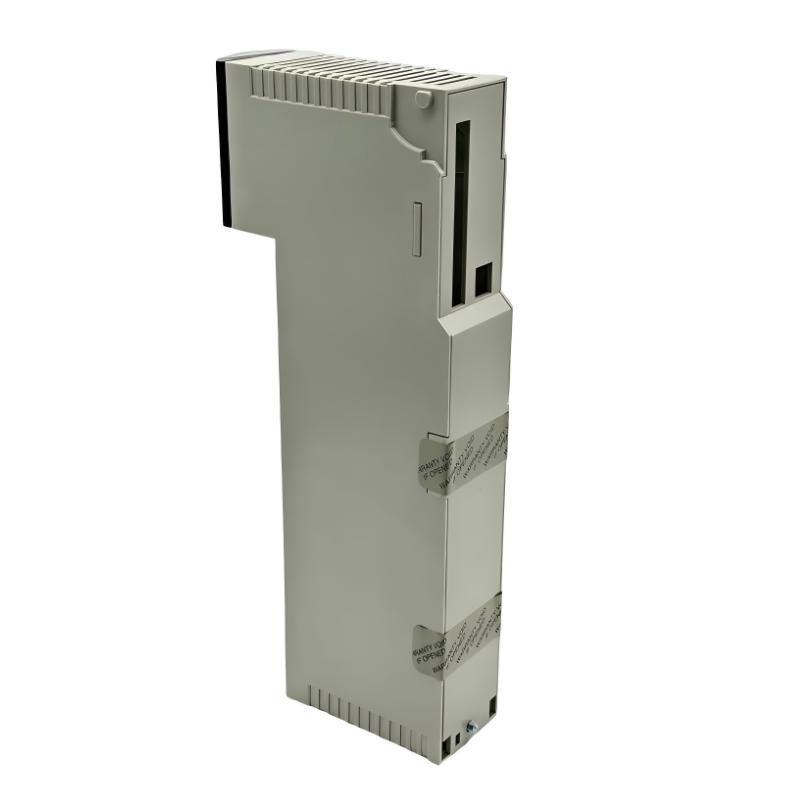

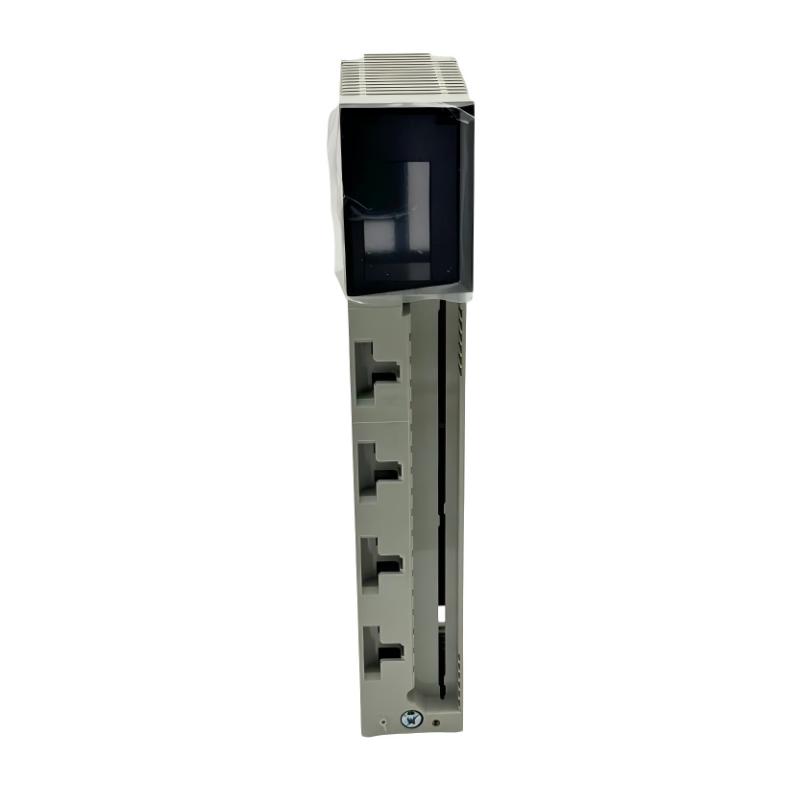

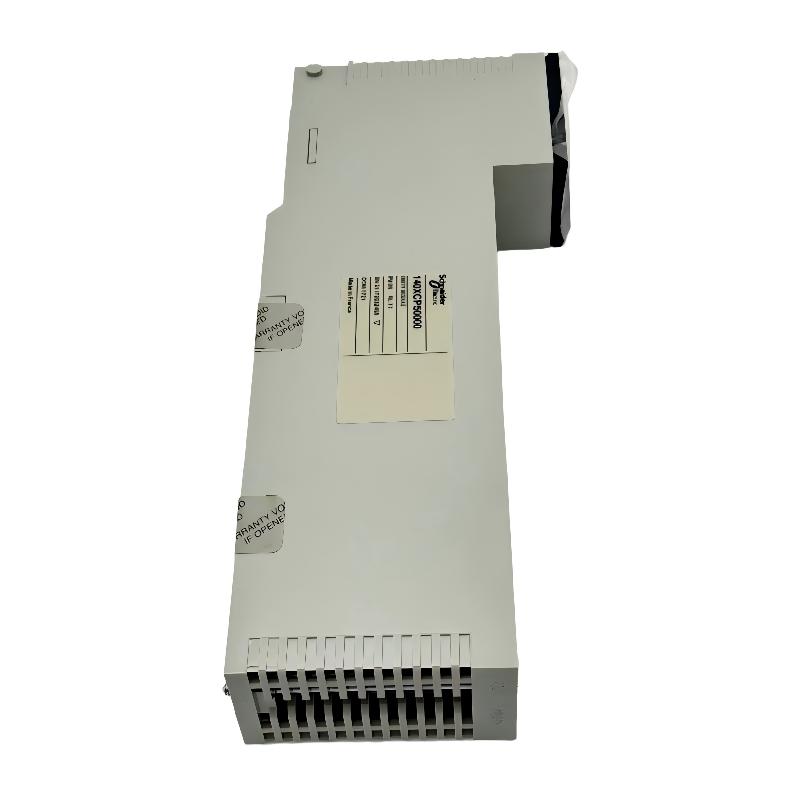

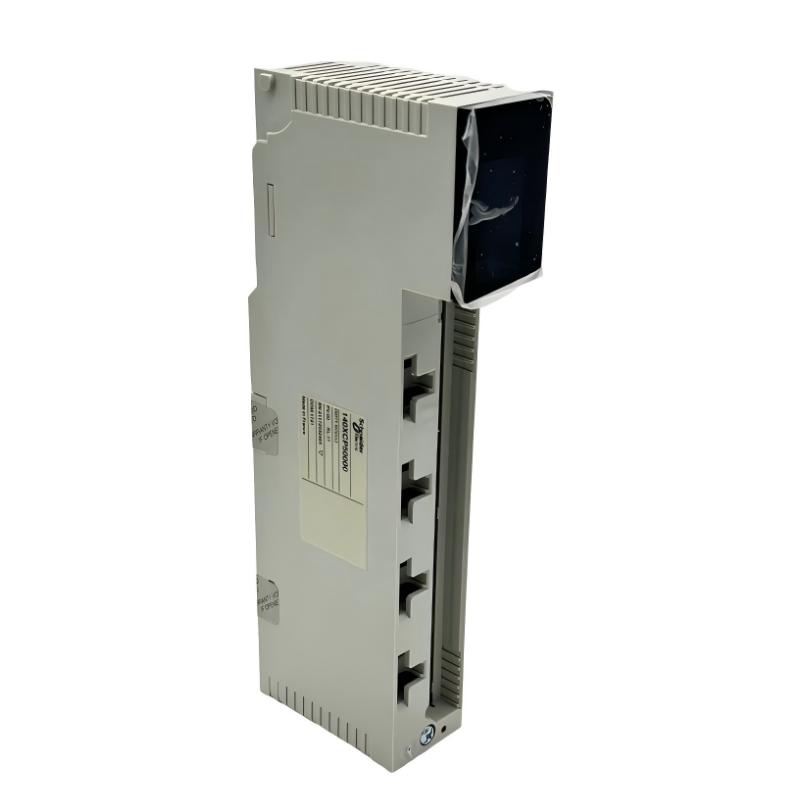

Schneider 140XCP50000 Discrete I/O Module

Overview

The Schneider 140XCP50000 Discrete I/O Module is designed for Schneider Modicon automation systems to provide reliable digital signal processing for industrial control applications. It enables connection between field devices and the PLC system, supporting efficient monitoring and control of discrete signals.

General Information

Brand: Schneider

Country of Origin: France

Manufacturer: Schneider Electric

Part Number: 140XCP50000

Series: Modicon Quantum

Type: Discrete I/O Module

Application: Industrial digital input and output control

Function: Provides discrete signal interface between field devices and PLC systems

Module Type: Digital I/O expansion module

Installation: Modicon Quantum rack system

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power operation

Input/Output Power: Supplied through PLC system backplane

Protection: Overvoltage and short-circuit protection

Indicators: LED status indicators for channel and module diagnostics

Communication & Interface

Communication Type: Modicon Quantum backplane communication

I/O Channels: Discrete digital signal channels

Signal Type: On/off control signals

Connection Interface: PLC rack backplane connection

Diagnostics: Channel status monitoring and fault indication

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20

Installation Environment: Industrial control cabinet

Vibration Resistance: Suitable for industrial automation environments

Dimensions & Weight

Dimensions (L × W × H): 103.9 × 40.3 × 250 mm

Weight: 0.312 kg
