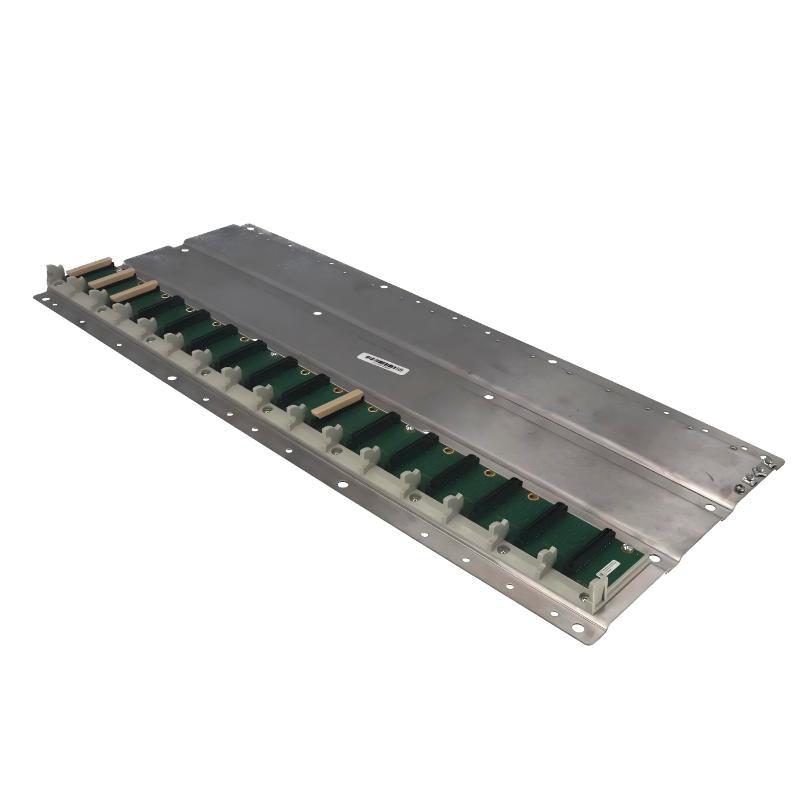

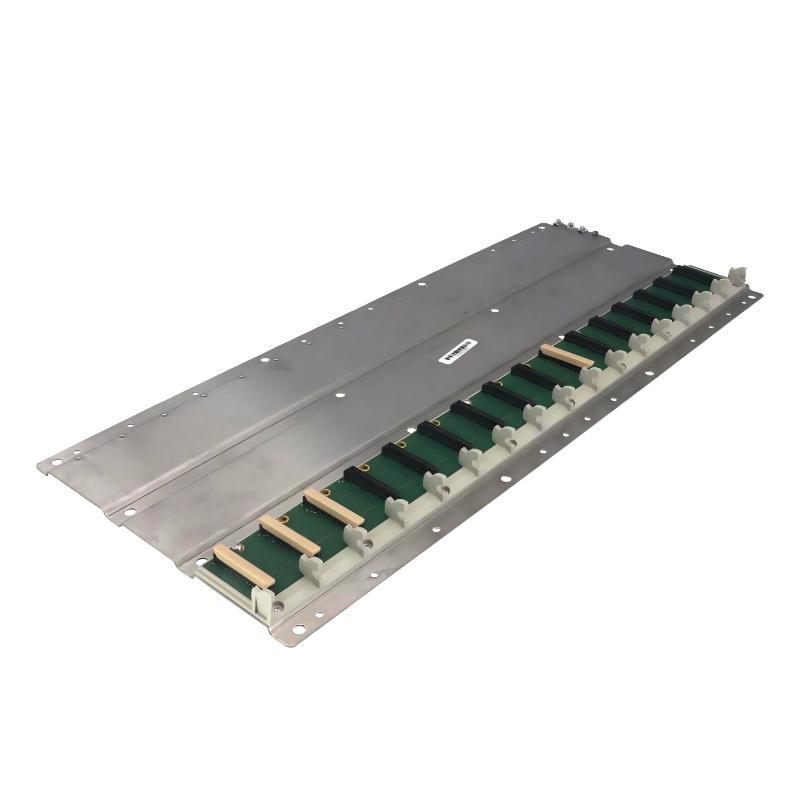

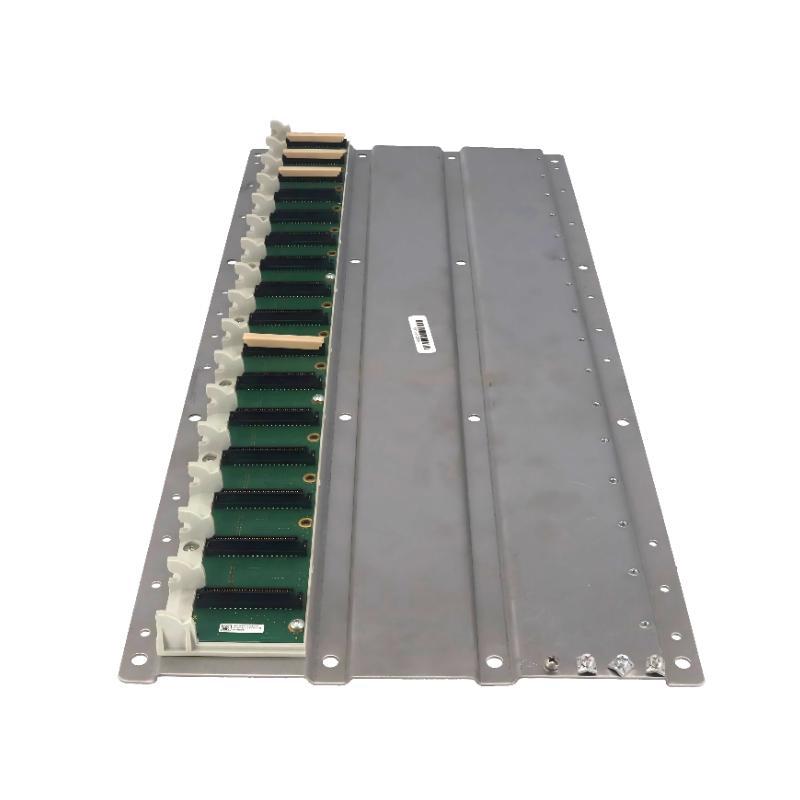

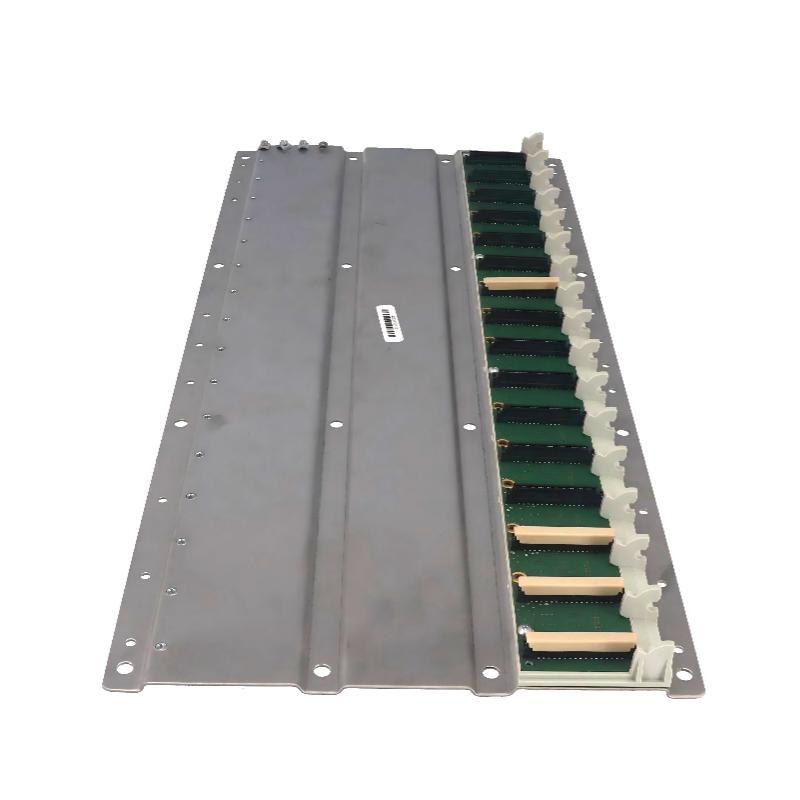

Schneider 140XBP01600 16-Slot Rack Backplane

Overview

The Schneider 140XBP01600 is a 16-slot rack backplane designed for Modicon Quantum automation systems. It provides the structural base and communication backbone for installing multiple PLC modules, including CPU, I/O, and communication units. It ensures reliable power distribution and high-speed data exchange for large-scale industrial control systems.

General Information

Part Number: 140XBP01600

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: Rack Backplane

Mounting Type: Rack installation in Quantum control cabinet

Function: Supports high-capacity module installation and system communication

Design: Industrial-grade modular backplane for large PLC systems

Power Specifications

Supply Voltage: 5 V DC (via system power supply module)

Power Distribution: Backplane distributes power to all installed modules

Power Consumption: Passive component (no active electronics)

Protection: Grounding and shielding for electrical stability

Start-Up: Automatically active when system power is applied

Communication & Interface

Interface Type: Quantum backplane communication bus

Slot Capacity: 16 module slots

Data Bus: High-speed internal PLC communication architecture

Diagnostics: CPU-based module recognition and system monitoring

System Integration: Compatible with Modicon Quantum CPU and I/O modules

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial IEC-standard compliant

Protection Rating: IP20 (installed in cabinet)

Installation Environment: Industrial control cabinet required

Dimensions & Weight

Dimensions (H × W × D): 671 × 290 × 29.1 mm

Weight: 1.6 kg
