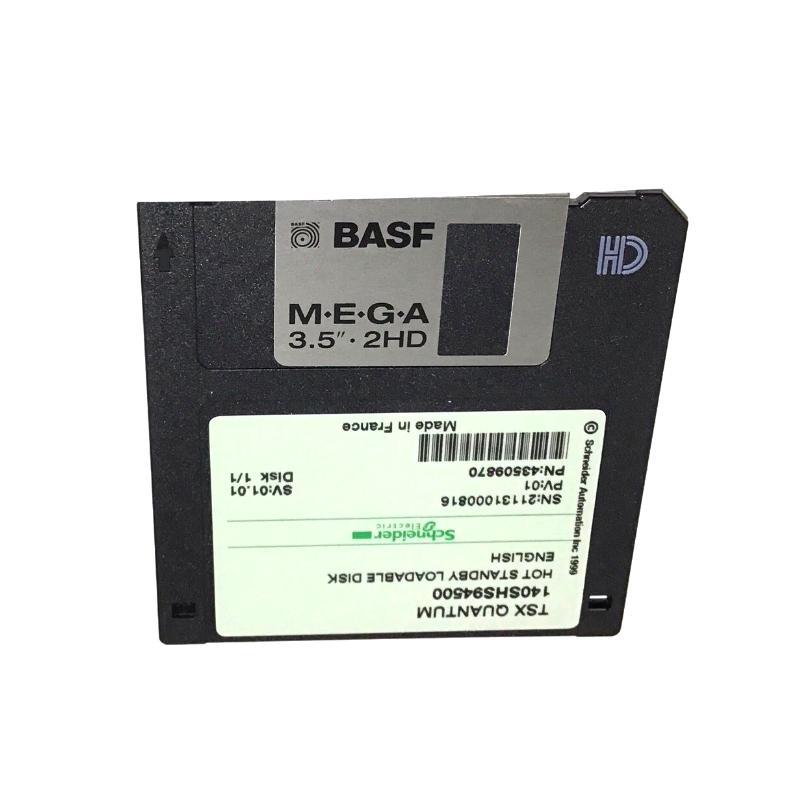

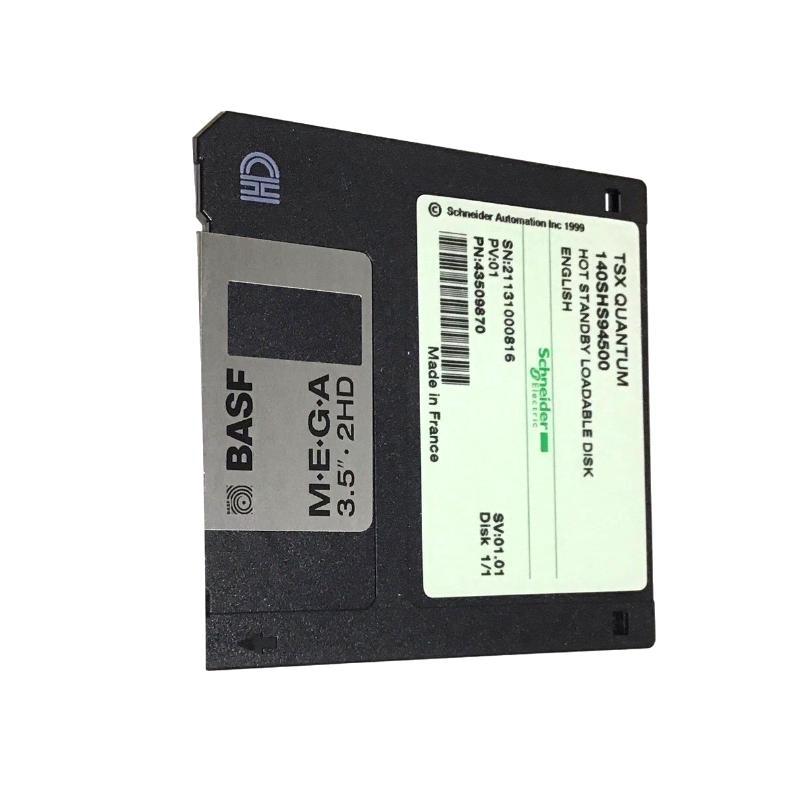

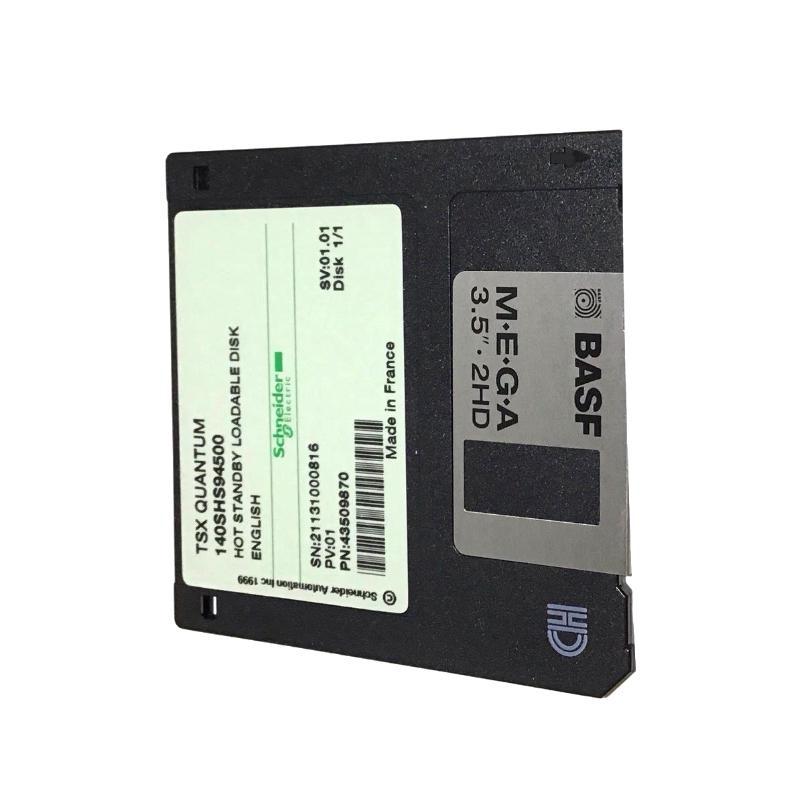

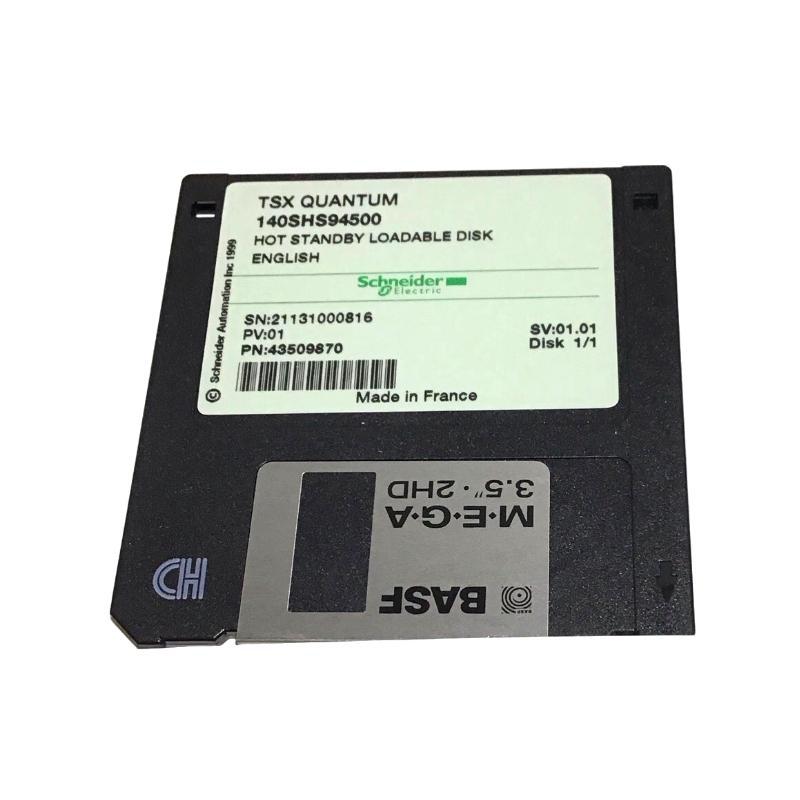

Schneider 140SHS94500 Hot-Swappable Disk

Overview

The Schneider 140SHS94500 is a hot-swappable disk module designed for Modicon Quantum automation systems. It provides removable data storage functionality, allowing system maintenance or replacement without shutting down the PLC. This supports higher system availability and reduces downtime in industrial automation environments.

General Information

Part Number: 140SHS94500

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: Hot-Swappable Disk Module

Mounting Type: Front-access rack or dedicated drive slot installation

Function: Provides removable storage for system data and configuration

Design: Industrial removable storage module for continuous operation systems

Power Specifications

Supply Voltage: 5 V DC (via system backplane or drive interface)

Power Consumption: Very low-power storage module

Power Source: PLC system backplane supply

Protection: Electrical isolation and data integrity protection

Start-Up: Automatically recognized during system initialization or insertion

Communication & Interface

Interface Type: Internal Quantum system storage interface

Data Function: Configuration storage, system data retention, and backup support

Hot-Swap Capability: Supports live replacement without system shutdown

Diagnostics: Status indicators for drive activity and system recognition

System Integration: Compatible with Modicon Quantum platforms

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial cabinet installation standard

Protection Rating: IP20 for enclosure use

Installation Environment: Industrial control cabinet or PLC rack environment

Dimensions & Weight

Dimensions (H × W × D): 100 × 20 × 80 mm

Weight: 0.1 kg
