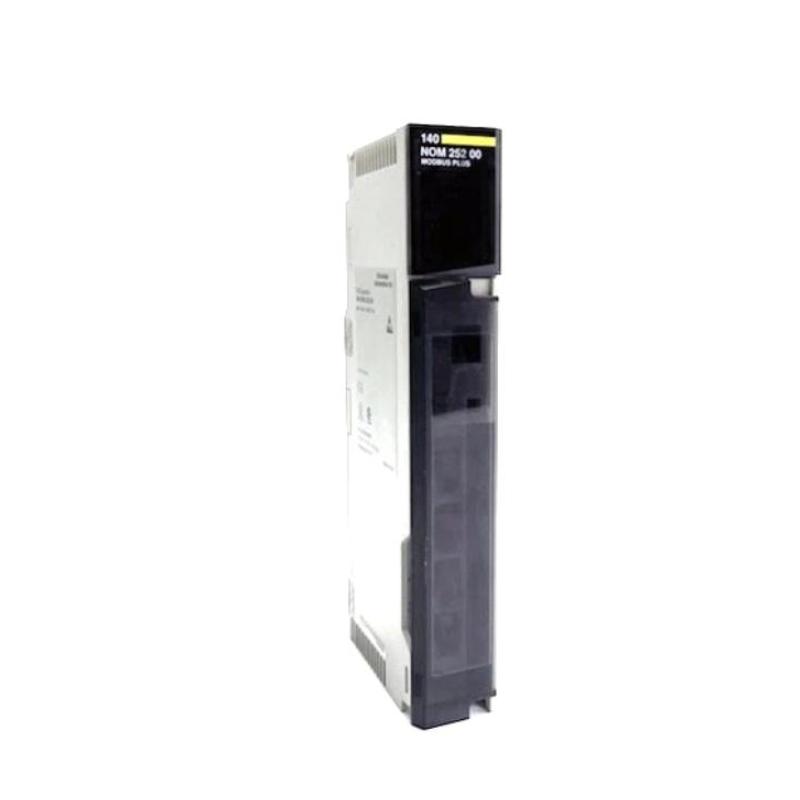

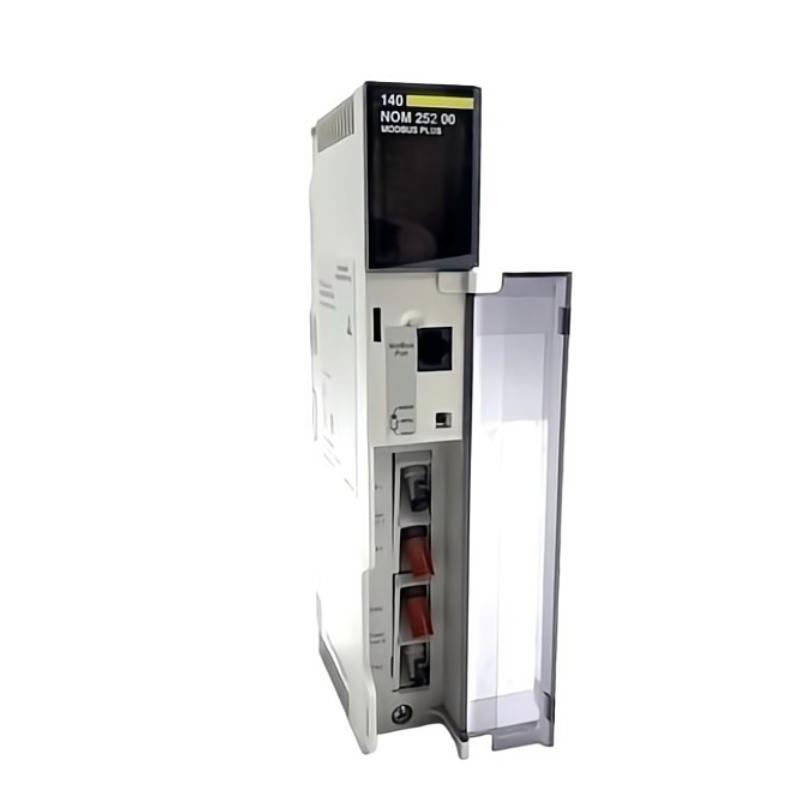

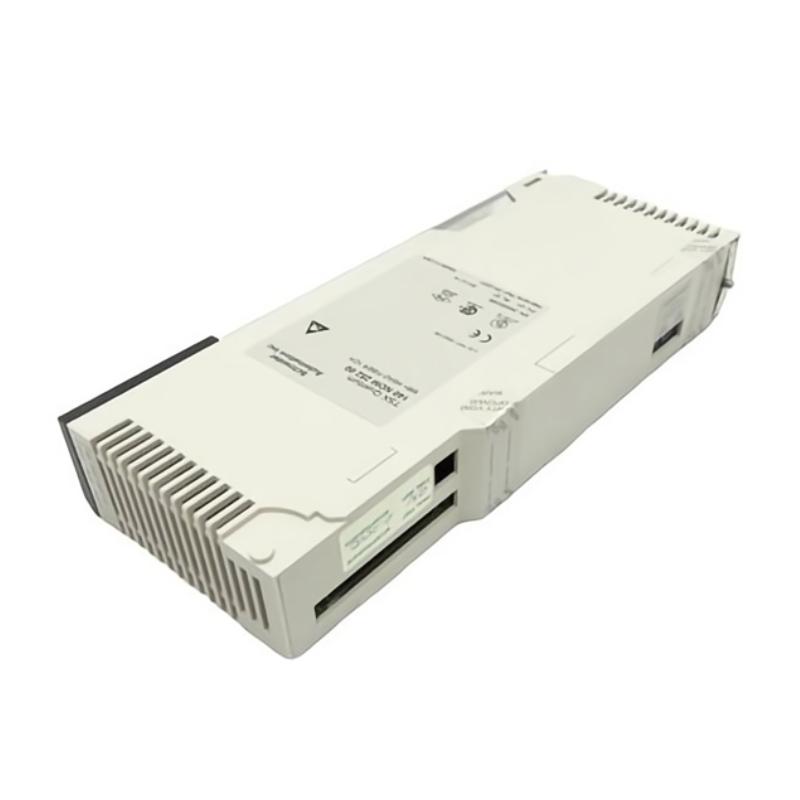

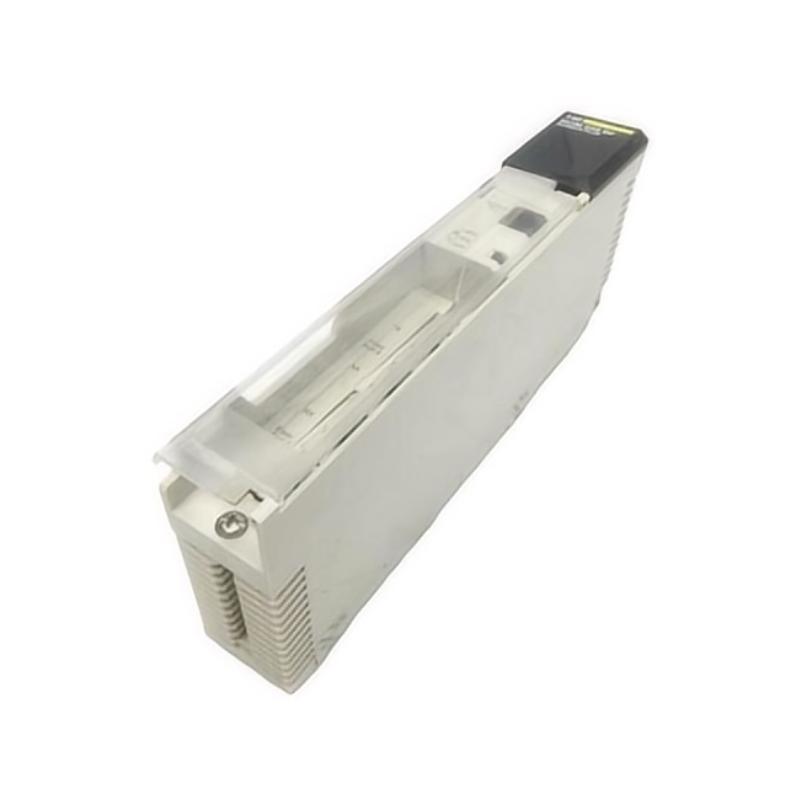

Schneider 140NOM25200C DIO Head-End Adapter

Overview

The Schneider 140NOM25200C is a DIO head-end adapter designed for Modicon Quantum automation systems. It provides a reliable communication interface between the PLC and distributed I/O devices, ensuring efficient data transmission and seamless integration of remote I/O networks in industrial control applications.

General Information

Part Number: 140NOM25200C

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: DIO Head-End Adapter

Mounting Type: Rack installation in Quantum chassis

Function: Interfaces the controller with distributed I/O networks for data communication

Design: Industrial communication adapter for remote I/O applications

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: Low-power electronic module

Power Source: Quantum backplane power supply

Protection: Electrical isolation and surge protection

Start-Up: Automatic initialization during system startup

Communication & Interface

Interface Type: Distributed I/O (DIO) communication interface

System Role: Head-end adapter for remote I/O connectivity

Data Transfer: High-speed cyclic I/O communication

Diagnostics: LED indicators for power, communication, and fault status

System Integration: Compatible with Schneider Modicon Quantum control systems

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Compliant with industrial IEC standards

Protection Rating: IP20 for cabinet installation

Installation Environment: Indoor industrial control enclosure

Dimensions & Weight

Dimensions (H × W × D): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
