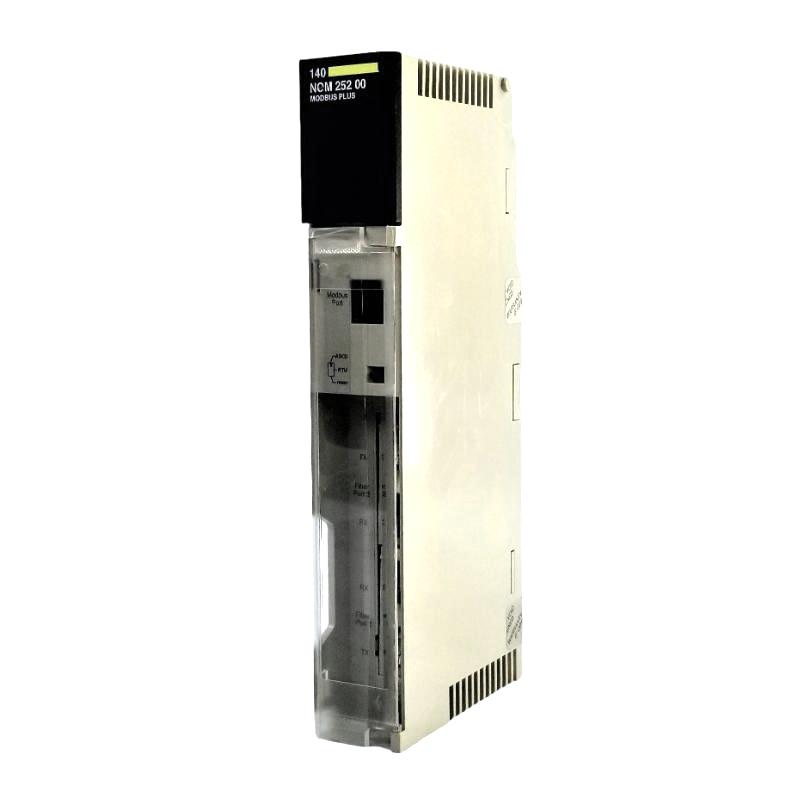

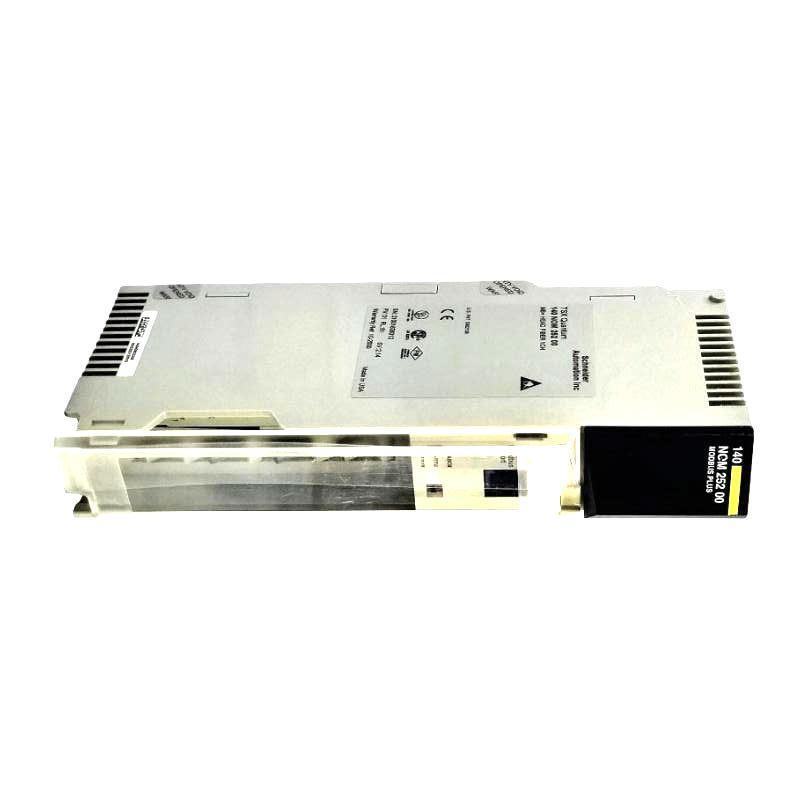

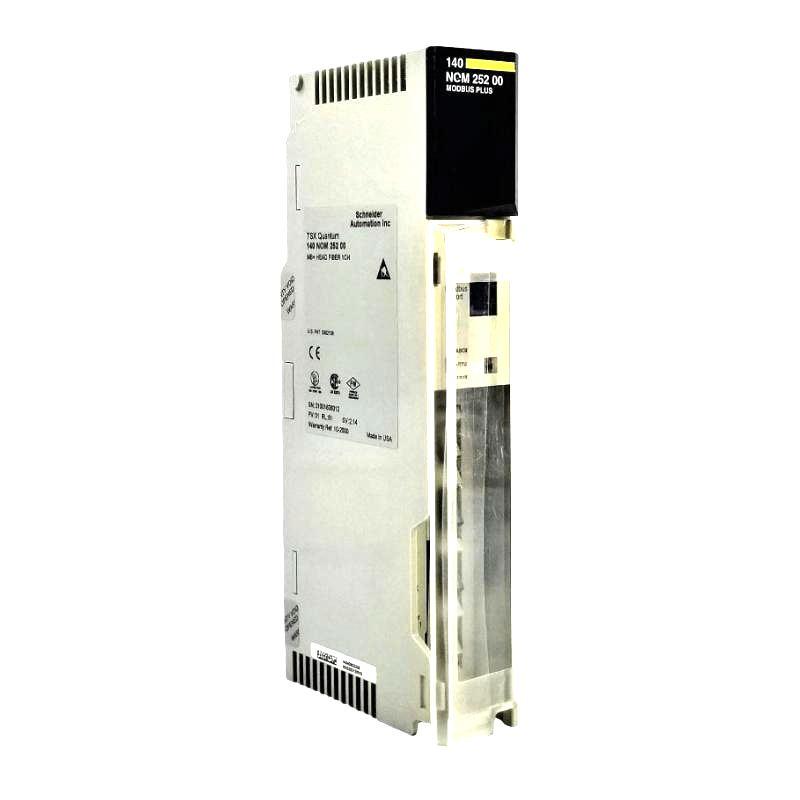

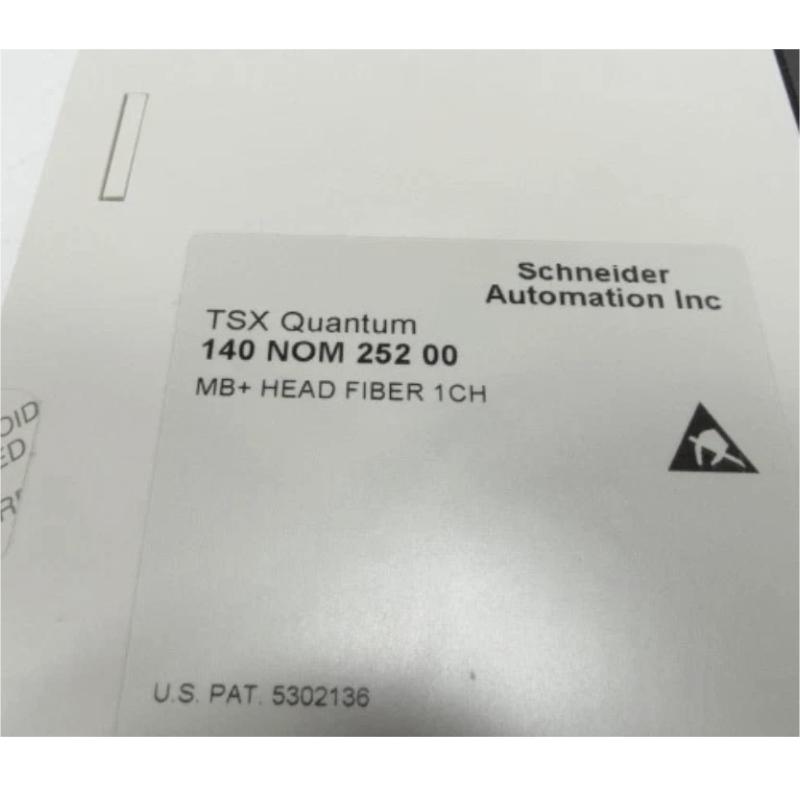

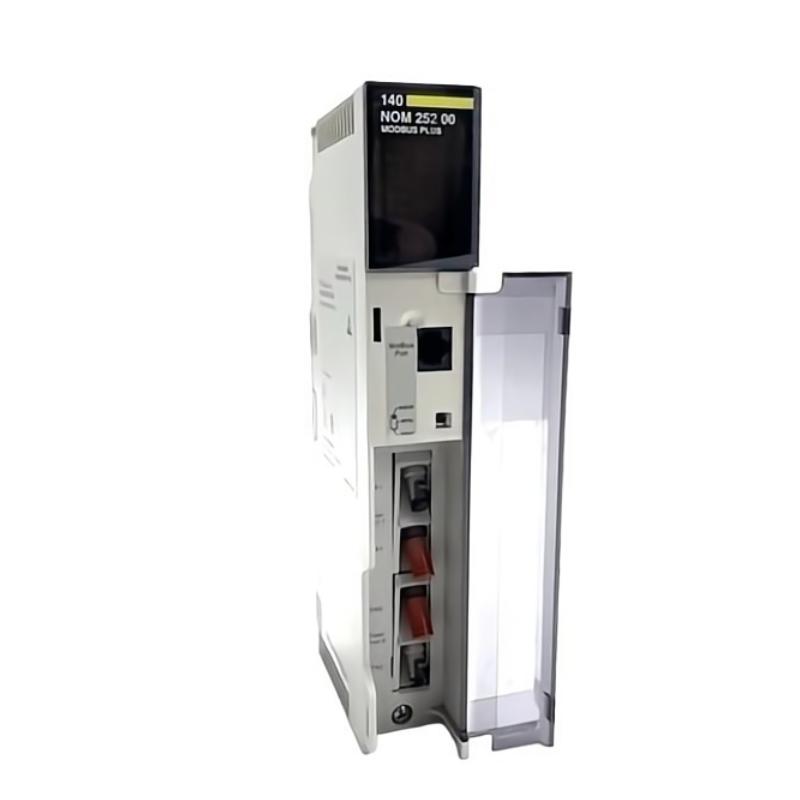

Schneider 140NOM25200 DIO Head-End Adapter

Overview

The Schneider 140NOM25200 is a DIO head-end adapter designed for Modicon Quantum automation systems. It serves as the communication interface between the controller and distributed I/O devices, enabling reliable data exchange and efficient integration of remote I/O networks in industrial automation applications.

General Information

Part Number: 140NOM25200

Manufacturer: Schneider Electric

Brand: Schneider Electric

Country of Origin: France

Series: Modicon Quantum

Product Type: DIO Head-End Adapter

Mounting Type: Rack installation in Quantum chassis

Function: Provides communication between the PLC and distributed I/O network

Design: Industrial communication adapter for remote I/O systems

Power Specifications

Supply Voltage: 5 V DC (via backplane)

Power Consumption: Low-power electronic module

Power Source: Quantum backplane power supply

Protection: Electrical isolation and industrial surge protection

Start-Up: Automatic initialization during controller startup

Communication & Interface

Interface Type: Distributed I/O (DIO) communication interface

System Role: Head-end adapter for remote I/O communication

Data Transfer: High-speed cyclic I/O data exchange

Diagnostics: LED indicators for power, communication, and fault status

System Integration: Compatible with Schneider Modicon Quantum automation systems

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial IEC standard compliant

Protection Rating: IP20 for cabinet installation

Installation Environment: Indoor industrial control enclosure

Dimensions & Weight

Dimensions (H × W × D): 103.9 × 40.3 × 250 mm

Weight: 0.3 kg
