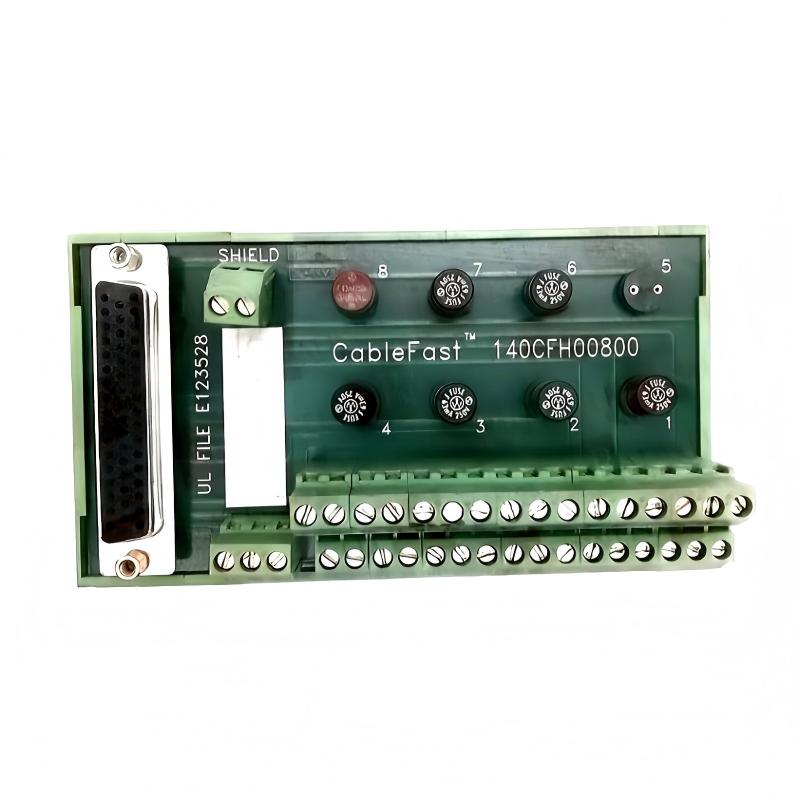

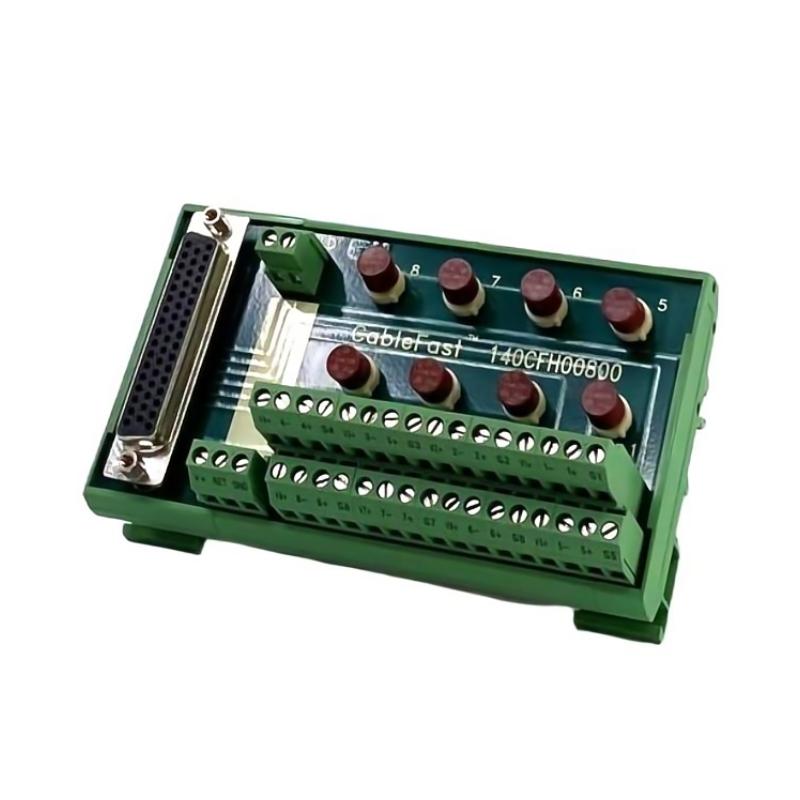

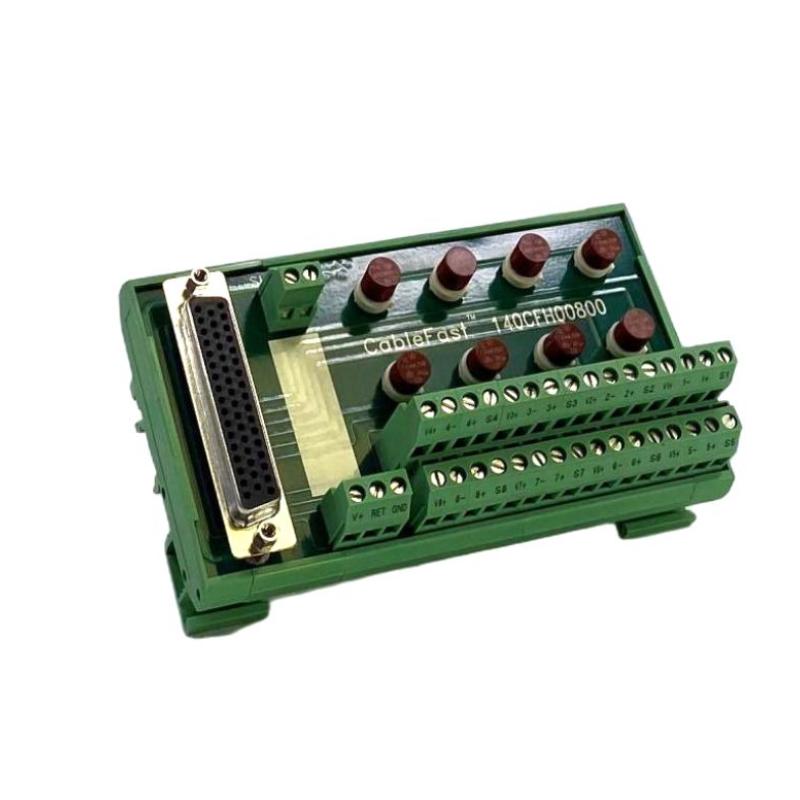

Schneider 140CFH00800 Analog Input Module

Overview

The Schneider 140CFH00800 is an analog input module designed for industrial automation systems. It provides precise signal acquisition from field devices, enabling accurate monitoring and control of process variables such as temperature, pressure, and flow.

General Information

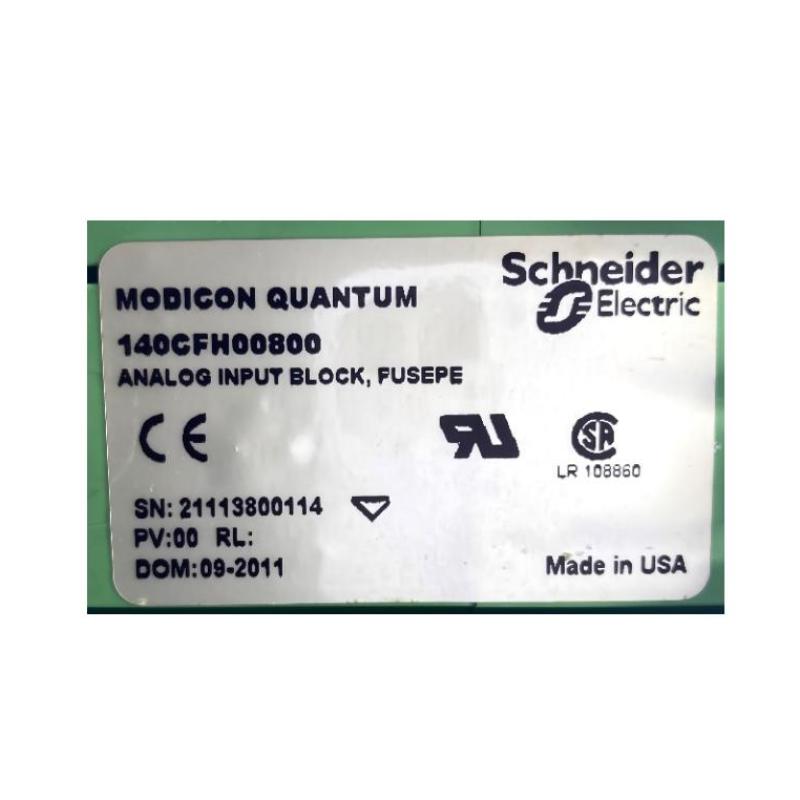

Part Number: 140CFH00800

Manufacturer: Schneider Electric

Brand / Country of Origin: Schneider Electric / France

Series: Modicon / Compact Fieldbus

Type: Analog Input Module

Mounting: DIN rail or panel installation within control cabinet

Technology: High-precision analog input with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input Protection: Surge and reverse-polarity protection

Indicators: LED indicators for power, communication, and fault

Communication & Interface

Bus Interface: Compatible with Modbus / Compact Fieldbus networks

Signal Inputs: Multiple analog channels with configurable ranges

Diagnostics: Monitors input signal integrity, channel faults, and communication status

Operator Interface: LEDs for power, channel status, and fault indicators

Reset Features: Supports soft and hardware reset via the control system

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 or standard industrial cabinet environment

Vibration / Shock: Compliant with industrial vibration and shock standards

Dimensions & Weight

Package Dimensions (L × W × H): 115 × 180 × 270 mm

Package Weight: ~ 0.41 kg
