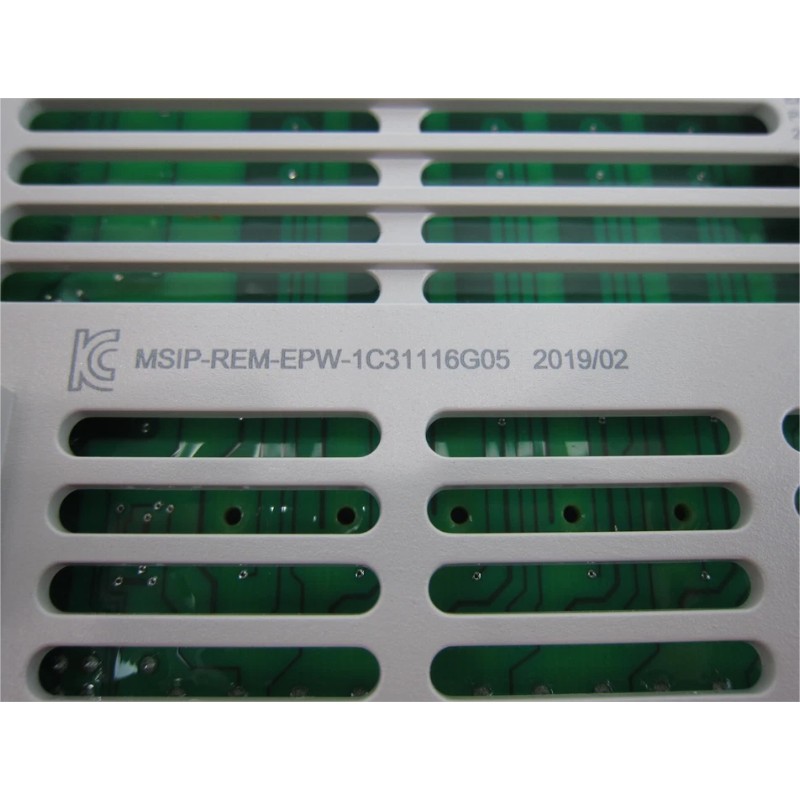

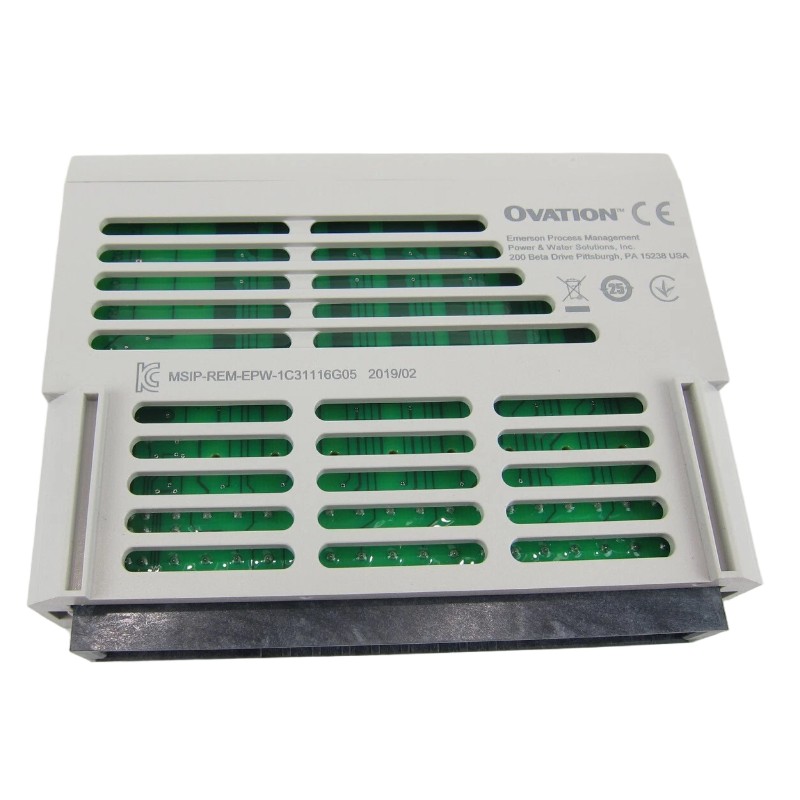

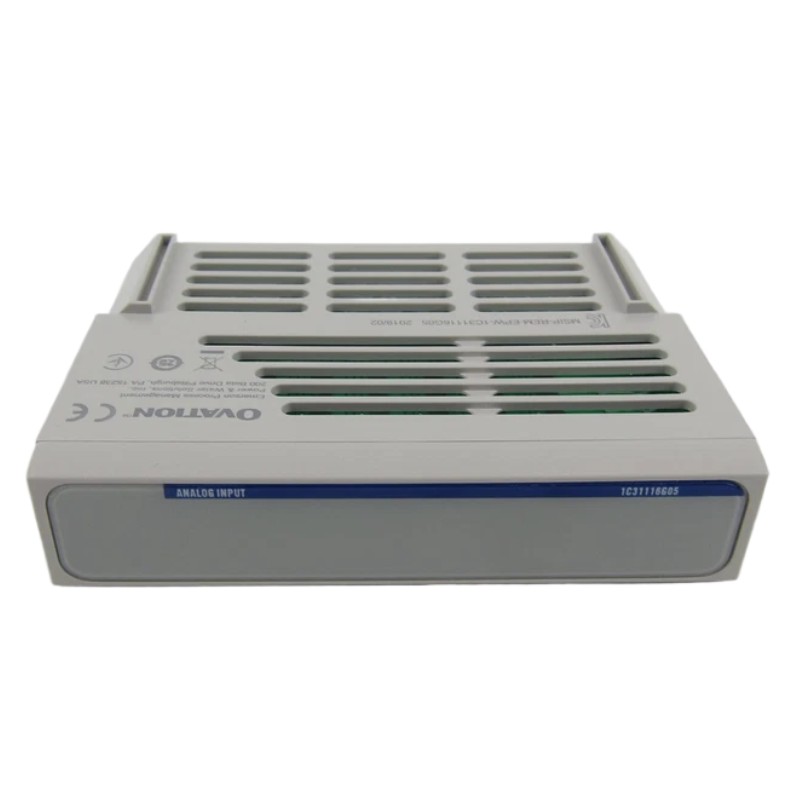

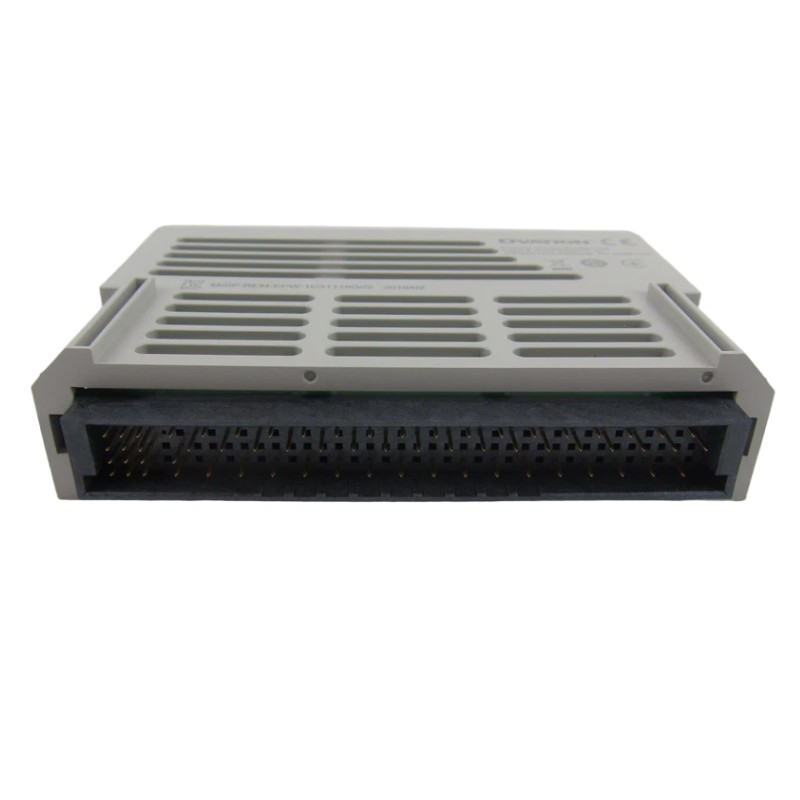

Ovation 1C31116G05 Analog Input Module

Overview

The Ovation 1C31116G05 is an analog input module designed for industrial automation systems to acquire and process continuous analog signals from field instrumentation. It provides stable signal conditioning and accurate data conversion for real-time process monitoring and control applications.

General Information

Part Number: 1C31116G05
Manufacturer: Emerson
System Series: Ovation DCS
Brand: Emerson (USA)
Country of Origin: USA
Type: Analog Input Module
Function: Multi-channel analog signal acquisition and conditioning
Installation: Rack-mounted module within Ovation control chassis
Compatibility: Ovation distributed control system
Technology: High-precision A/D conversion with built-in diagnostics

Power Specifications

Supply Voltage: 24 V DC (via system backplane)
Power Consumption: Typically ≤ 6 W
Input Power Source: System rack power supply
Protection: Over-voltage, short-circuit, reverse polarity protection
Status Indication: LED indicators for power and fault status

Communication & Interface

Signal Interface: Analog input channels for industrial transmitters
Input Types: 4–20 mA / 0–10 V (system dependent configuration)
Data Transfer: Digital communication through backplane to controller
Channel Isolation: Galvanic isolation between input channels
Diagnostics: Open-wire detection, fault reporting, channel health monitoring
System Integration: Fully compatible with Ovation control architecture

Environmental

Operating Temperature: 0 to +60 °C
Storage Temperature: −40 to +85 °C
Humidity: 5%–95% RH, non-condensing
Vibration Resistance: Industrial control cabinet standard
Protection Class: IP20

Dimensions & Weight

Dimensions (L × W × H): 180 × 35 × 120 mm
Weight: 0.113 kg
