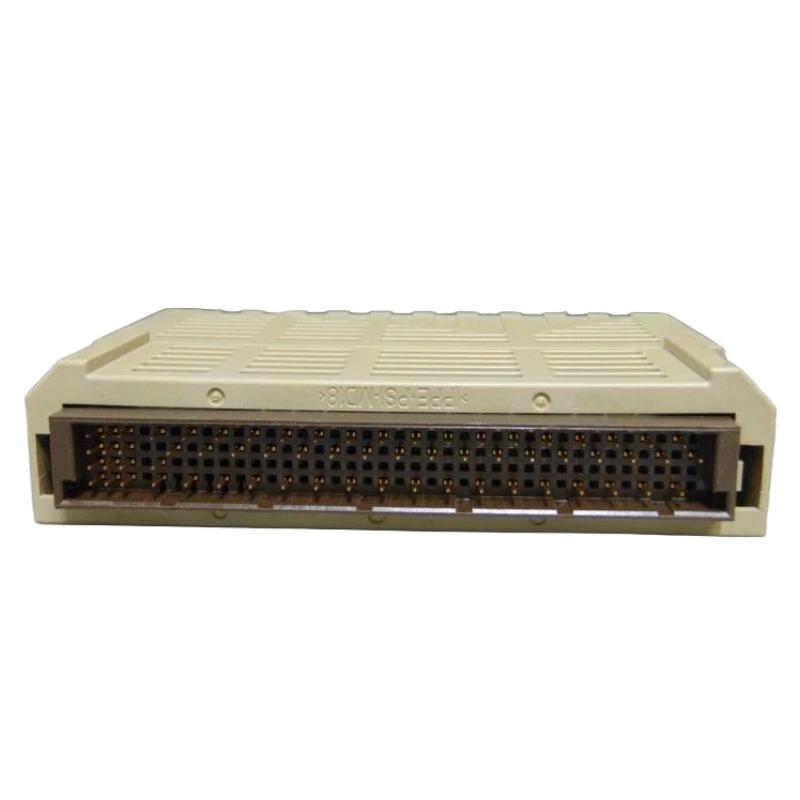

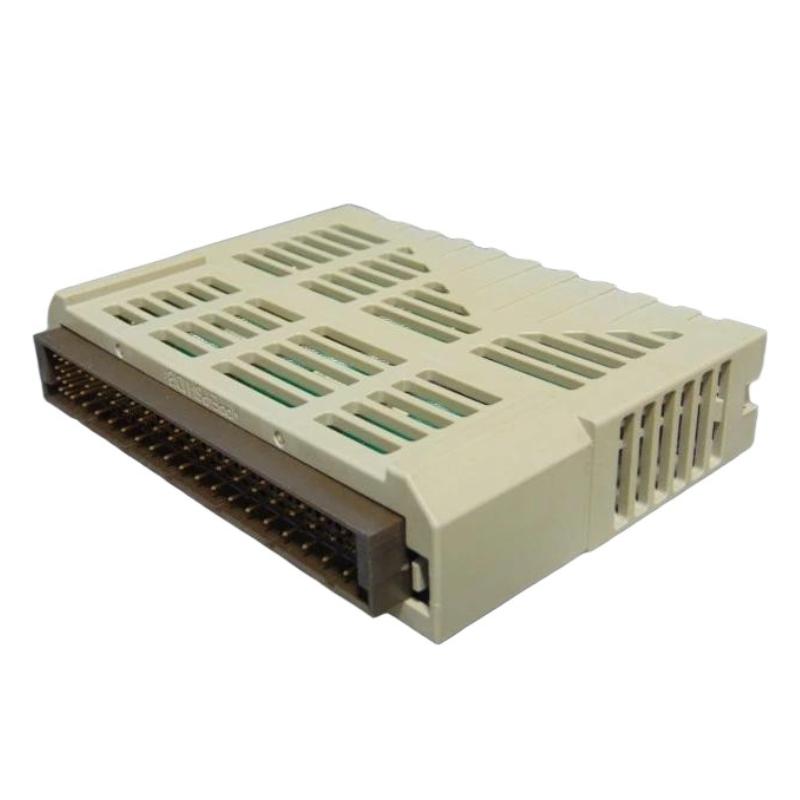

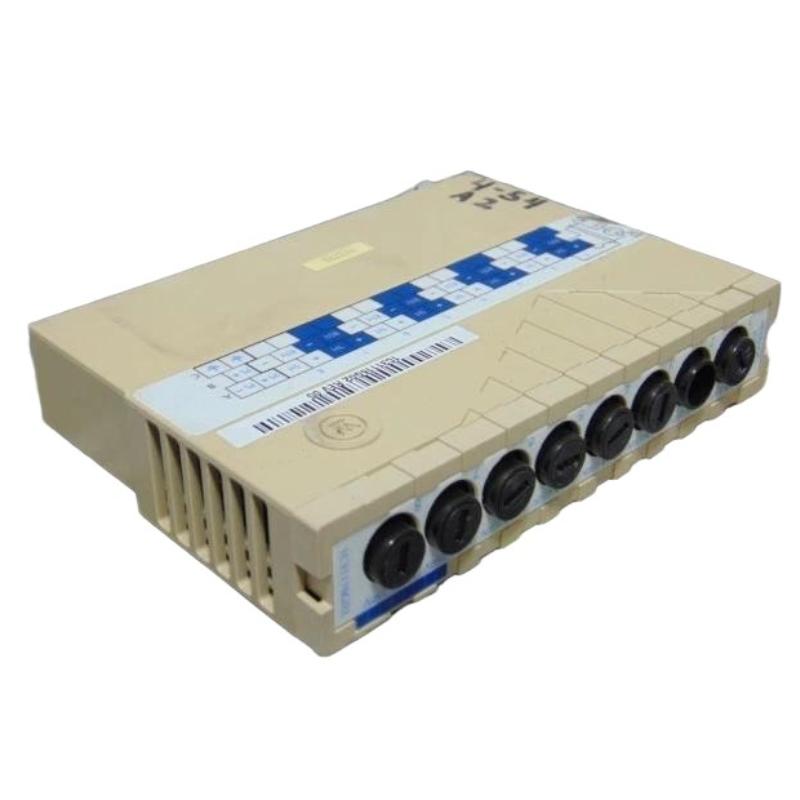

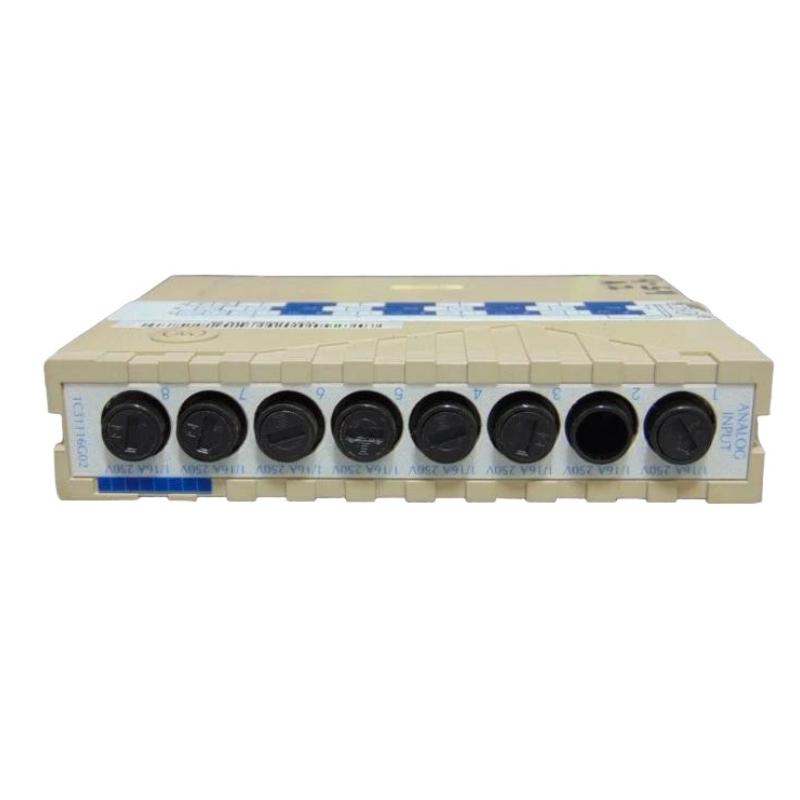

Ovation 1C31116G02 Analog Input Module

Overview

The Ovation 1C31116G02 is an industrial analog input module designed for Emerson Ovation control systems. It is used to acquire analog signals from field instruments such as transmitters and sensors and convert them into digital data for process monitoring and automation control. The module provides stable signal acquisition and reliable performance in power generation and industrial process environments.

General Information

Part Number: 1C31116G02

Manufacturer: Emerson

Brand: Ovation

Country of Origin: USA

Series: Ovation Control System

Type: Analog Input Module

Function: Converts field analog signals into digital values for control system processing

Mounting: Installed in Ovation system rack or control chassis

Technology: High-precision analog signal conditioning with A/D conversion architecture

Power Specifications

Operating Voltage: Supplied via system backplane

Power Consumption: Low power industrial module

Input Signal Types: Standard industrial analog signals (e.g., 4–20 mA, voltage inputs depending on configuration)

Protection: Overvoltage protection and channel isolation

Indicators: LED status indicators for module health and operational status

Communication & Interface

System Interface: Ovation control system backplane communication

Data Handling: Real-time analog data acquisition and transmission to controller

Diagnostics: Built-in self-diagnostics and fault detection functions

Channel Architecture: Multi-channel configurable input structure depending on system configuration

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control system rated

Protection Rating: Designed for rack or cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (H × W × D): 260 × 32 × 176 mm

Weight: 0.308 kg
