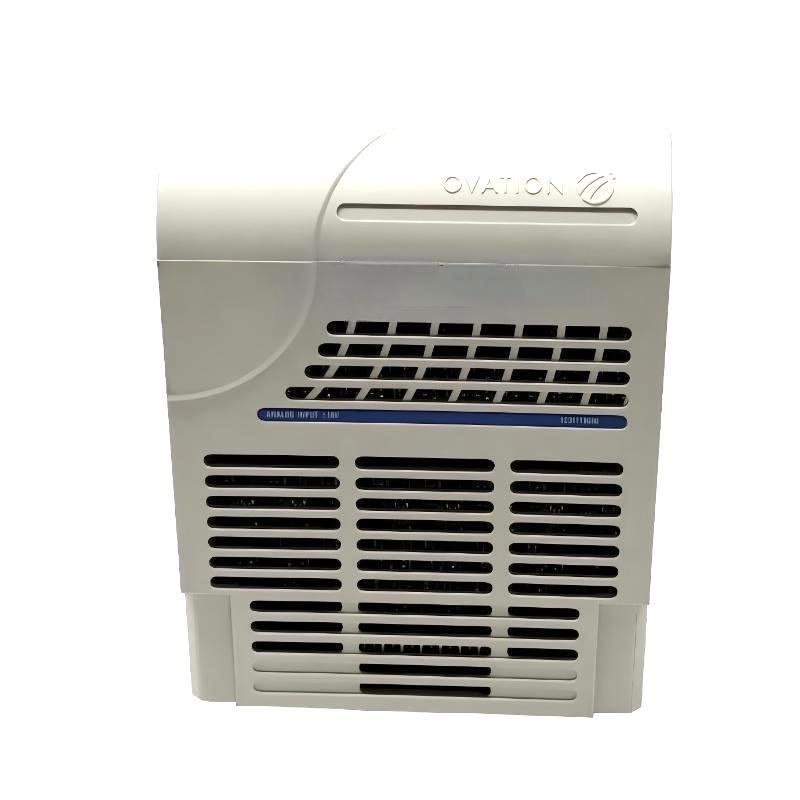

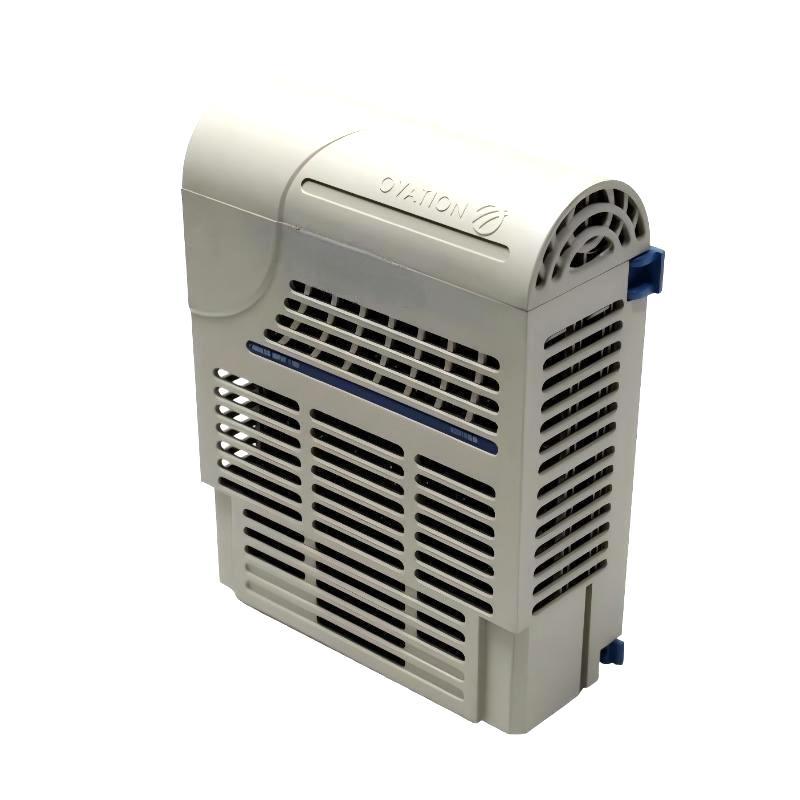

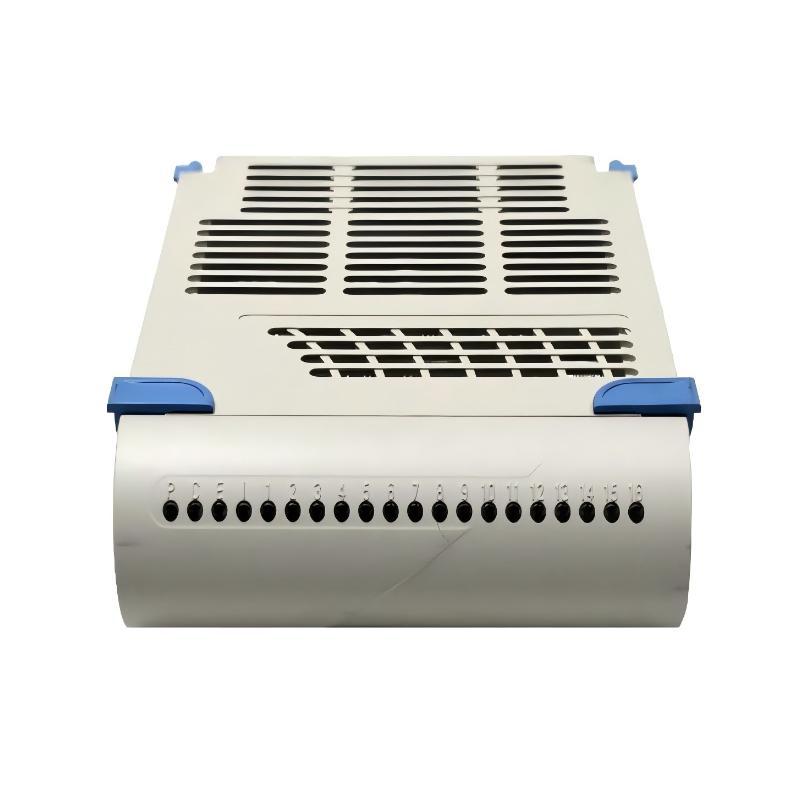

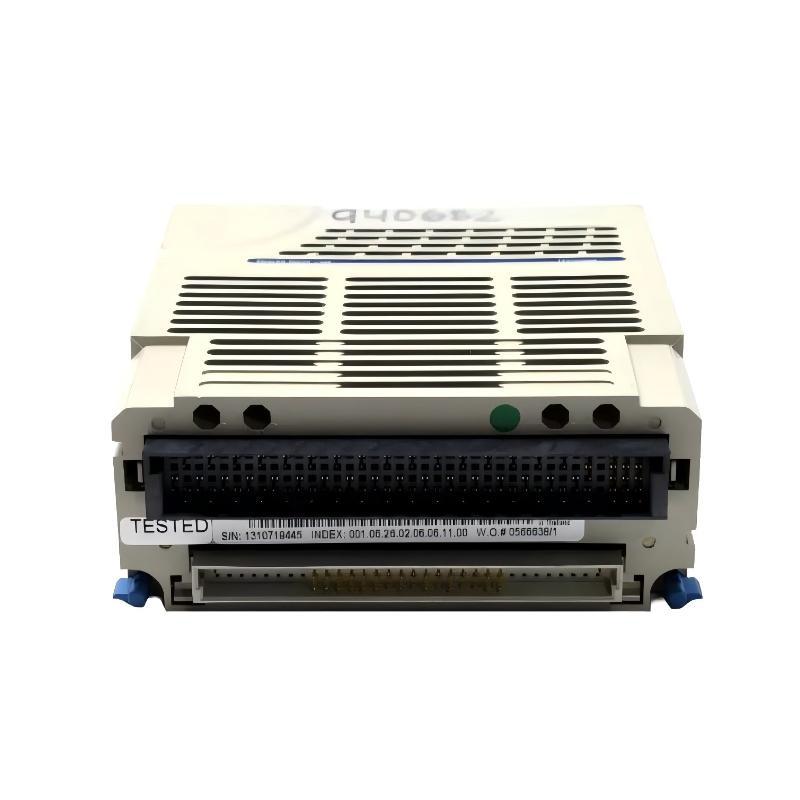

Ovation 1C31113G06 Analog Input Module

Overview

The Ovation 1C31113G06 is an industrial analog input module designed for Emerson Ovation control systems. It is used to acquire analog signals from field instruments such as transmitters and sensors and convert them into digital values for process monitoring and automation control. The module is widely used in power generation and heavy industrial applications requiring stable and accurate signal acquisition.

General Information

Part Number: 1C31113G06

Manufacturer: Emerson

Brand: Ovation

Country of Origin: USA

Series: Ovation Control System

Type: Analog Input Module

Function: Converts industrial analog signals into digital data for control system processing

Mounting: Installed in Ovation system rack or control chassis

Technology: High-precision analog signal conditioning with A/D conversion architecture

Power Specifications

Operating Voltage: Supplied via system backplane

Power Consumption: Low power industrial module

Input Signal Types: Industrial standard analog inputs (e.g., 4–20 mA, voltage signals depending on configuration)

Protection: Overvoltage protection and channel isolation

Indicators: LED status indicators for module health and operational status

Communication & Interface

System Interface: Ovation control system backplane communication

Data Handling: Real-time analog data acquisition and transmission to controller

Diagnostics: Built-in self-diagnostics and fault detection functions

Channel Architecture: Multi-channel configurable input structure depending on system setup

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control system rated

Protection Rating: Designed for rack or cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (H × W × D): 260 × 32 × 176 mm

Weight: 0.8 kg
