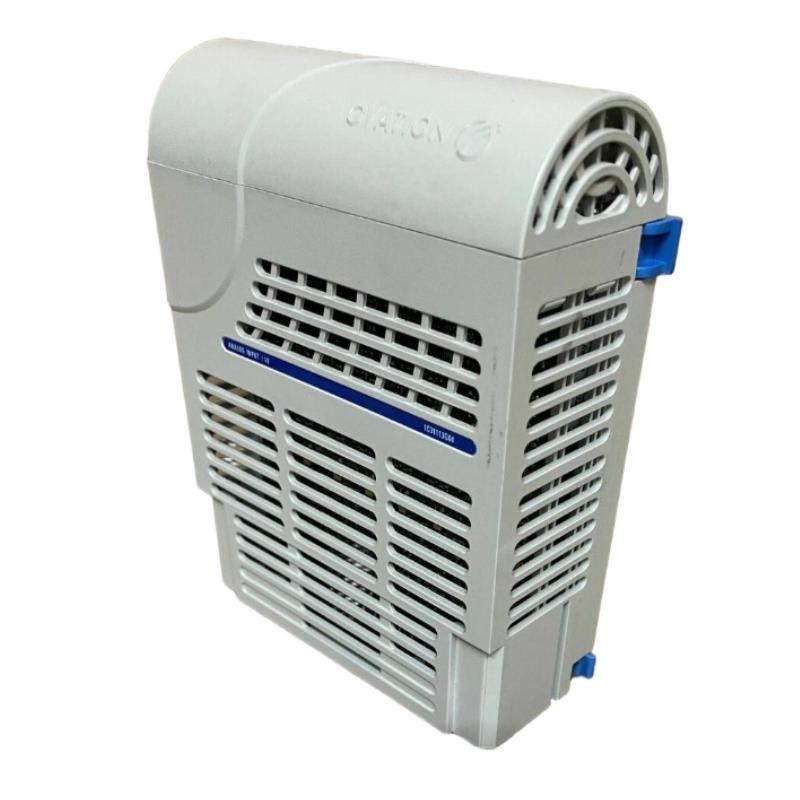

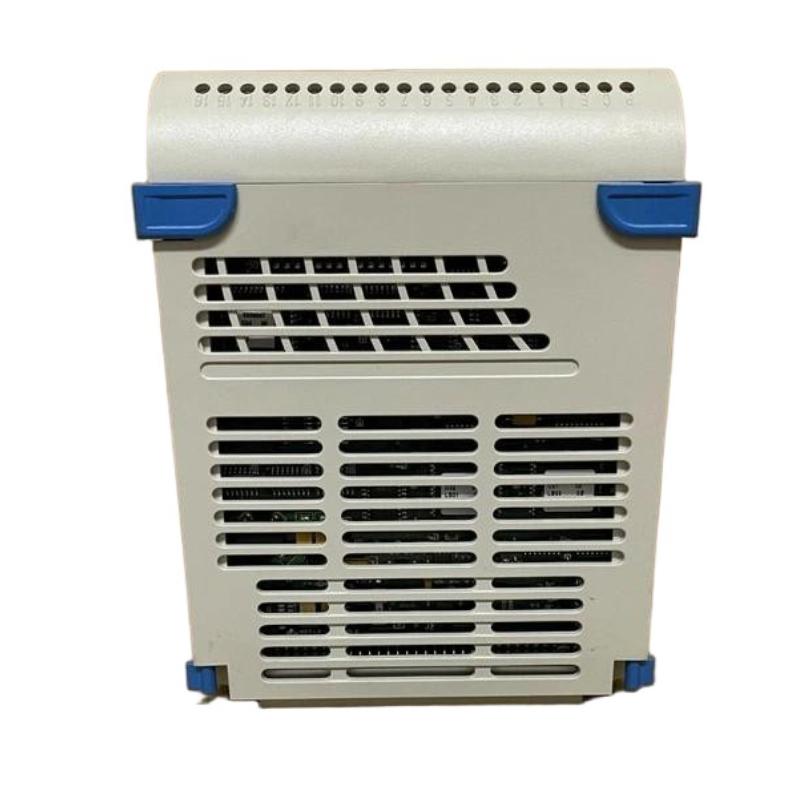

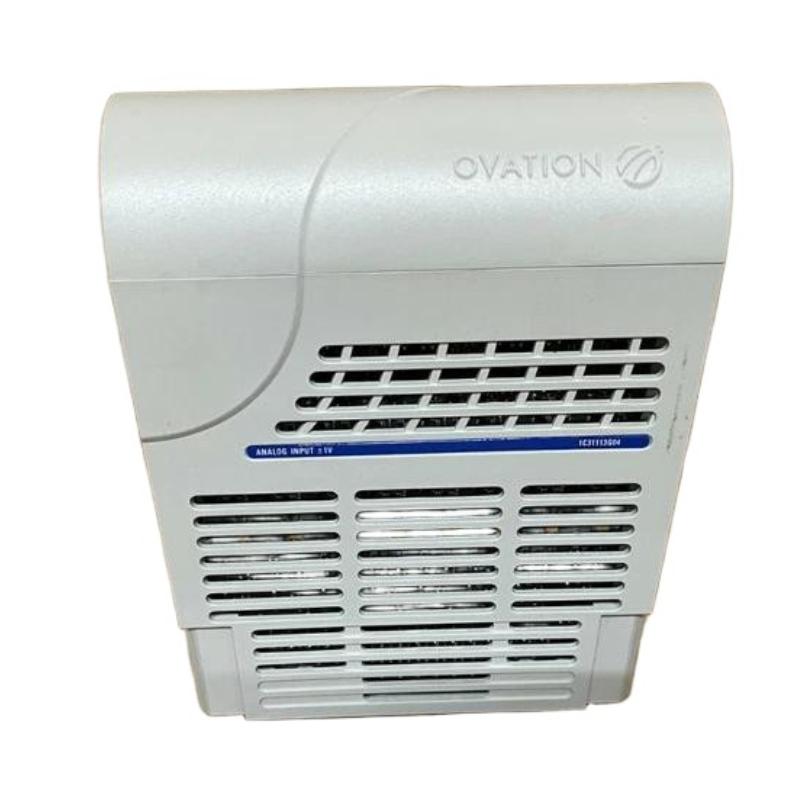

Ovation 1C31113G04 Analog Input Module

Overview

The Ovation 1C31113G04 is an industrial analog input module designed for Emerson Ovation control systems. It is used to acquire and convert analog signals from field devices such as pressure, temperature, and flow transmitters into digital data for process control applications. The module ensures stable signal acquisition and high accuracy in demanding industrial environments such as power generation and large-scale process automation.

General Information

Part Number: 1C31113G04

Manufacturer: Emerson

Brand: Ovation

Country of Origin: USA

Series: Ovation Control System

Type: Analog Input Module

Function: Converts industrial analog signals into digital values for control and monitoring

Mounting: Installed in Ovation system rack or control chassis

Technology: High-precision analog-to-digital conversion with signal conditioning circuitry

Power Specifications

Operating Voltage: Supplied via system backplane

Power Consumption: Low power industrial module

Input Signal Types: Standard industrial analog signals (e.g., 4–20 mA, voltage inputs depending on configuration)

Protection: Overvoltage protection and channel isolation

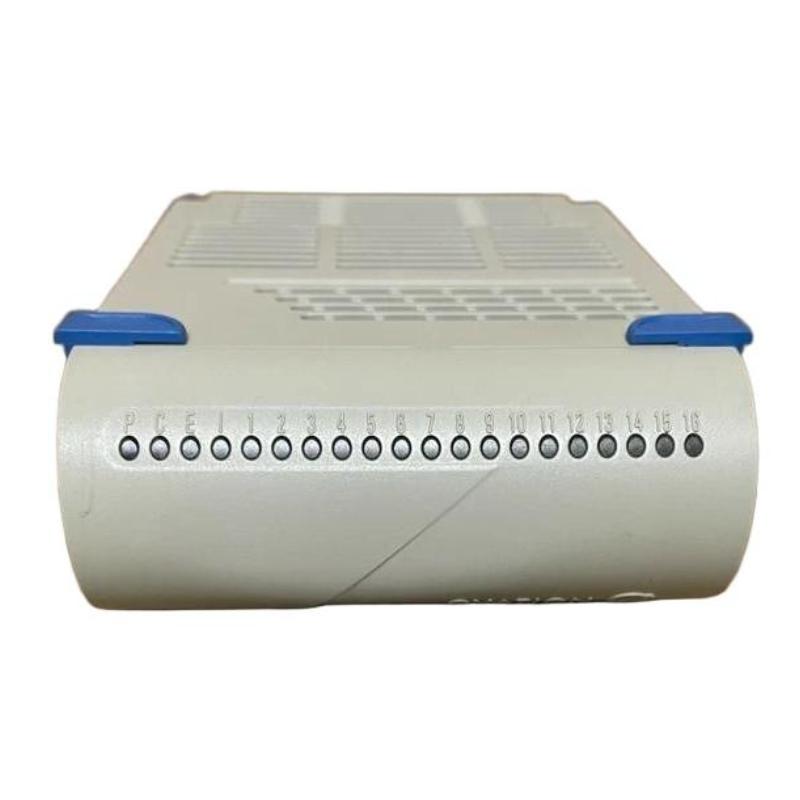

Indicators: LED status indicators for module health and channel operation

Communication & Interface

System Interface: Ovation system backplane communication

Data Handling: Real-time analog data acquisition and transmission to controller

Diagnostics: Built-in self-diagnostics and fault reporting functions

Channel Architecture: Multi-channel configurable input structure depending on system setup

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: −40 to 85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial control system rated

Protection Rating: Designed for enclosed rack or cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (H × W × D): 121 x 51 x 140 mm

Weight: 0.3 kg
