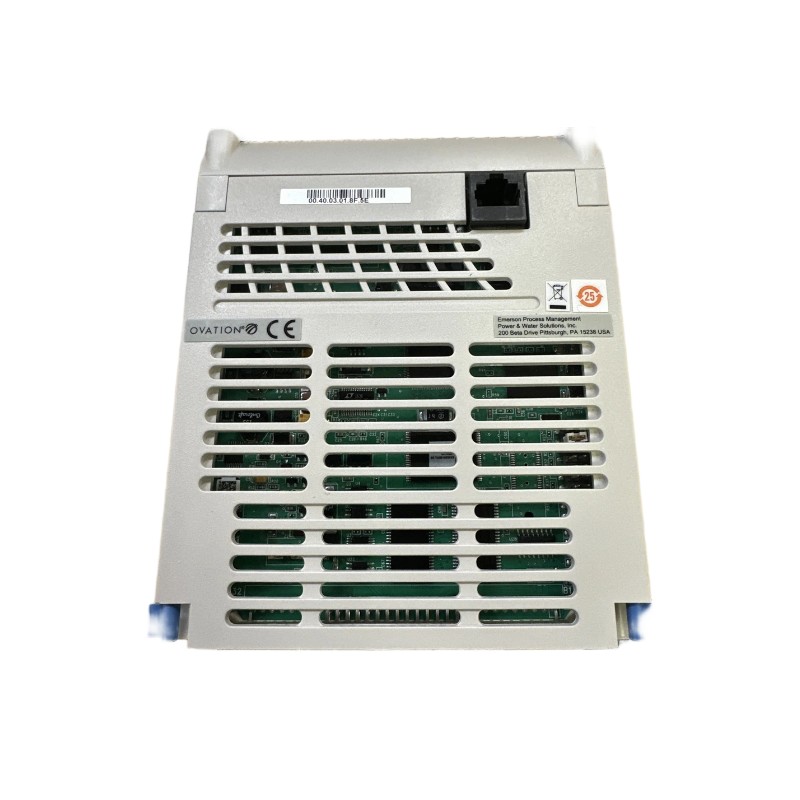

OVATION 5X00453G01 | Analog Input Module Efficient delivery

Overview

The OVATION 5X00453G01 is an analog input (AI) module used in Emerson’s Ovation DCS system. It is designed to acquire high-precision analog signals from field devices such as transmitters, sensors, and instrumentation. The module converts analog values into digital data for real-time control and monitoring.

General Information

Part Number: 5X00453G01

Manufacturer: Emerson / OVATION

Series: Ovation I/O Module Series

Type: Analog Input Module

Mounting: Installed in Ovation I/O rack

Technology: High-resolution A/D conversion, diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC (from I/O backplane)

Power Consumption: ≤ 10 W

Input: Backplane power distribution

Protection: Overvoltage protection, signal isolation

Indicators: LEDs for channel status, module health, fault

Communication & Interface

Interface Type: Ovation I/O bus

Input Signal Types: 4–20 mA, 0–10 V, or sensor-specified analog range

Diagnostics: Open-circuit detection, signal range check, noise filtering

Configuration: Parameter setup through Ovation engineering workstation

Reset Features: Supports module restart via system command

I/O & Channels

Input Channels: 16 analog input channels (typical)

Resolution: High-precision digital conversion

Isolation: Channel-to-channel and channel-to-bus isolation

External Load Support: Not applicable (input-only module)

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: Suitable for standard industrial cabinet (approx. IP20)

Dimensions & Weight

Dimensions (L × W × H): Approx. 180 × 80 × 120 mm

Weight: ~ 1.0 kg

Authentic brand-new products, 24/7 online support, stock available, rapid quotes provided.
