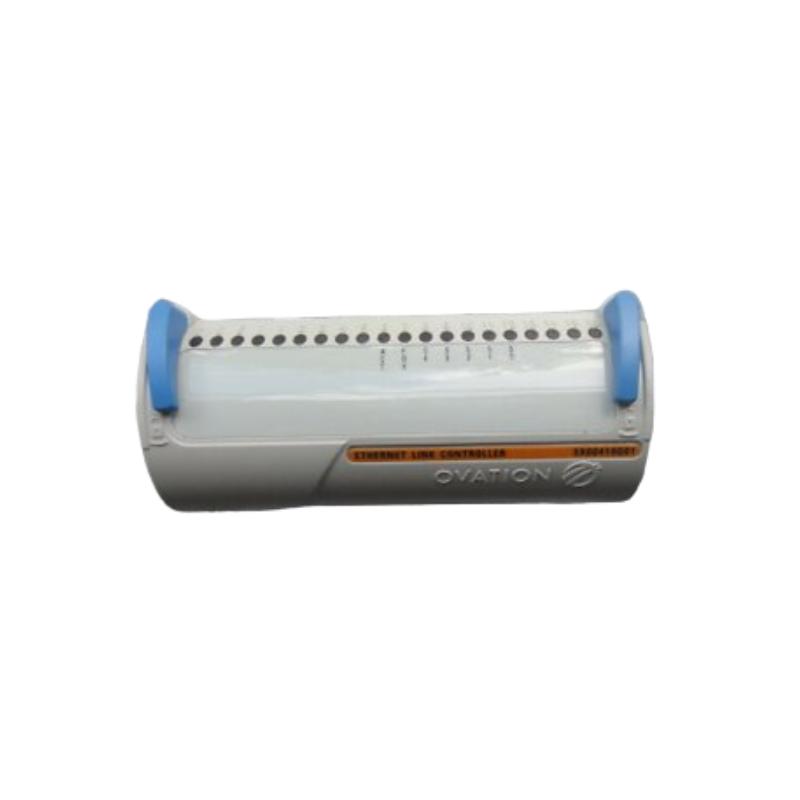

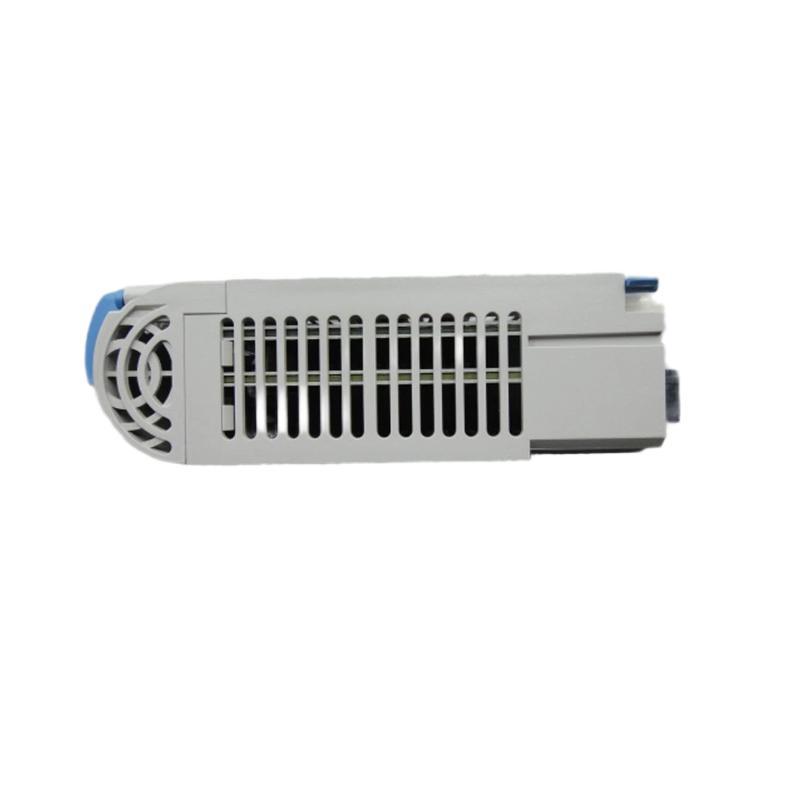

OVATION 5X00419G01 | Controller Communication Interface Module 100% New

Overview

The OVATION 5X00419G01 is a communication interface module used in Emerson’s Ovation DCS systems. It provides a stable, real-time communication link between the controller and various I/O subsystems, ensuring reliable data exchange and system coordination. It is widely used in power generation, petrochemical, and industrial automation fields.

General Information

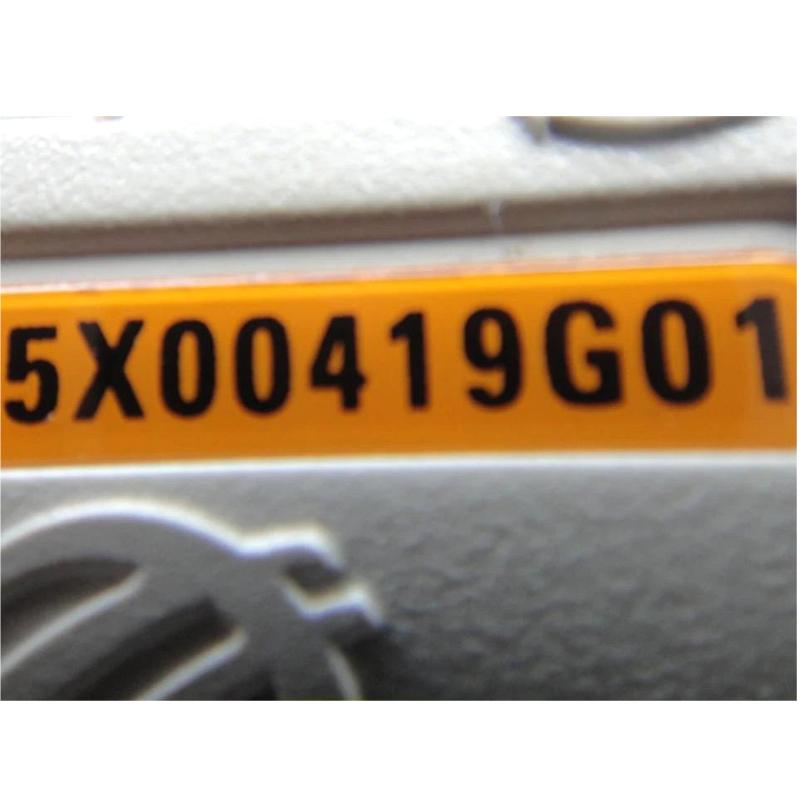

Part Number: 5X00419G01

Manufacturer: Emerson / OVATION

Series: Ovation Controller Interface Series

Type: Communication Interface Module

Mounting: Installed in Ovation controller rack / chassis

Technology: Digital communication bus, internal diagnostics, error detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered from the Ovation backplane

Protection: Overvoltage, surge, and reverse-polarity protection

Indicators: LEDs for module health, communication activity, fault

Communication & Interface

System Bus Port: Ovation Controller Communication Bus

Role: Provides data exchange between controller and I/O system

Diagnostics: Bus integrity checking, module status reporting, communication error detection

Operator Interface: LED indicators, configuration through Ovation engineering tools

Reset Features: Supports system reset and module restart

I/O & Channels

Relay Channels: None

External Load Support: None (module is for communication only)

I/O Function: Digital communication routing between controller and backplane/I/O networks

Environmental

Operating Temperature: 0 to +60 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: Standard industrial cabinet environment (approx. IP20)

Dimensions & Weight

Dimensions (L × W × H): Approx. 180 × 80 × 120 mm

Weight: ~ 1.1 kg

Brand-new originals, stock ready, professional customer support, get a quote instantly.
