Overview

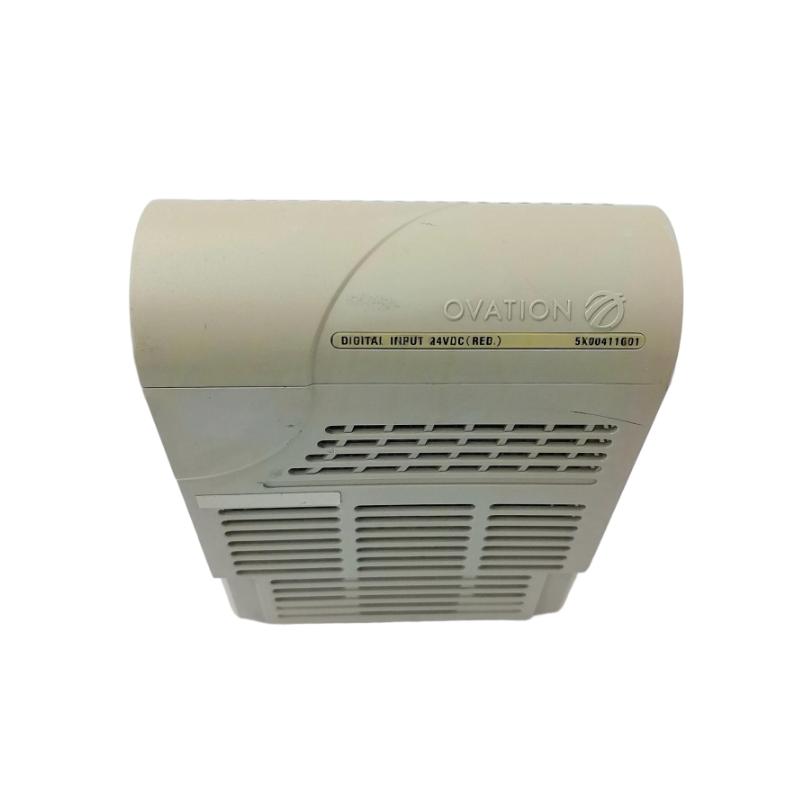

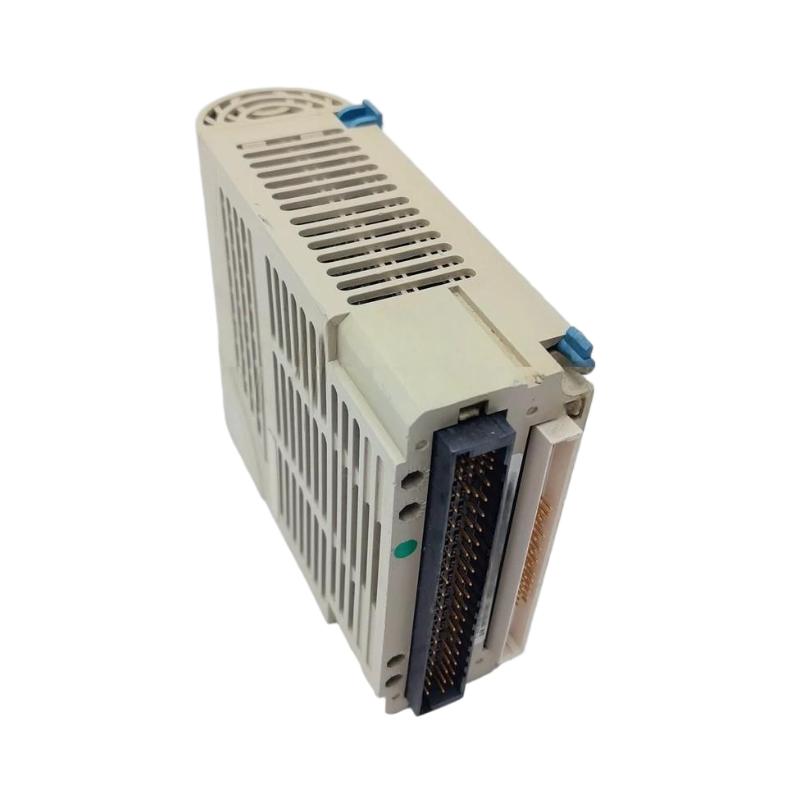

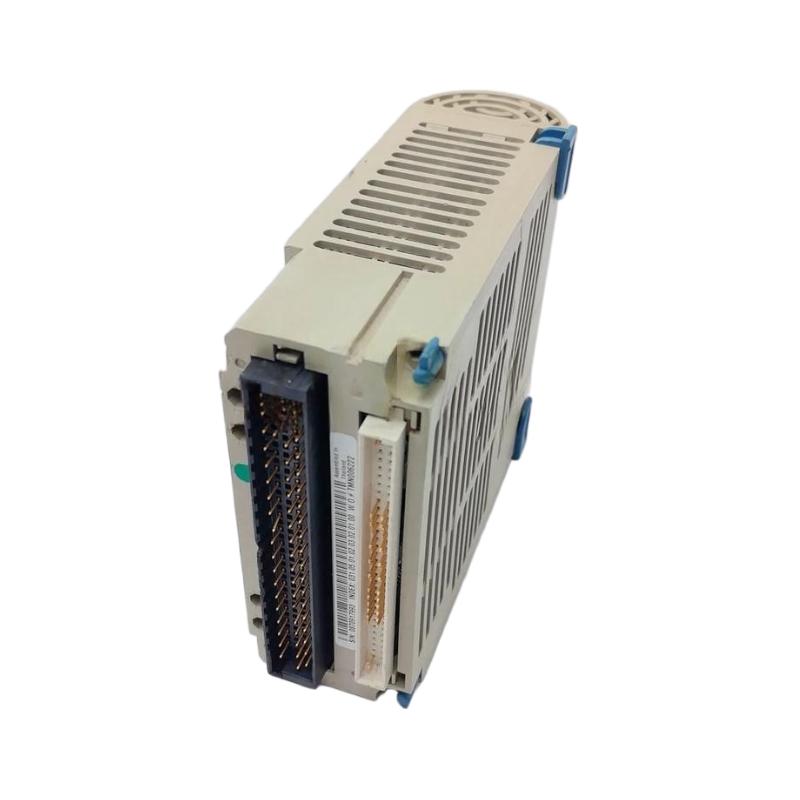

The OVATION 5X00411G01 is an I/O module used in Emerson’s Ovation distributed control system. It interfaces with field devices to acquire sensor signals and transmit control outputs, enabling accurate monitoring and automation of industrial processes.
General Information
Part Number: 5X00411G01
Manufacturer: Emerson
Country of Origin: USA
Module Type: Input/Output Module
Application: Collects data from sensors and sends control signals to actuators, supporting process control operations
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approximately 10 W
Protection: Provides overload and short-circuit protection for connected devices
Communication & Interface
Interface: Connected via Ovation system backplane
Communication Protocol: Supports Ovation bus for reliable I/O communication
Diagnostics: Monitors input/output channels and module status; reports faults to the controller
I/O & Channels
Analog Inputs/Outputs: Multiple channels for standard process control signals (e.g., 4–20 mA, 0–10 V)
Digital Inputs/Outputs: None
External Load Support: Powers field devices within rated specifications
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Mounting: Rack or cabinet installation in Ovation control systems
Dimensions & Weight
Dimensions (L × W × H): 180 × 80 × 120 mm
Weight: ~1.2 kg
