Overview

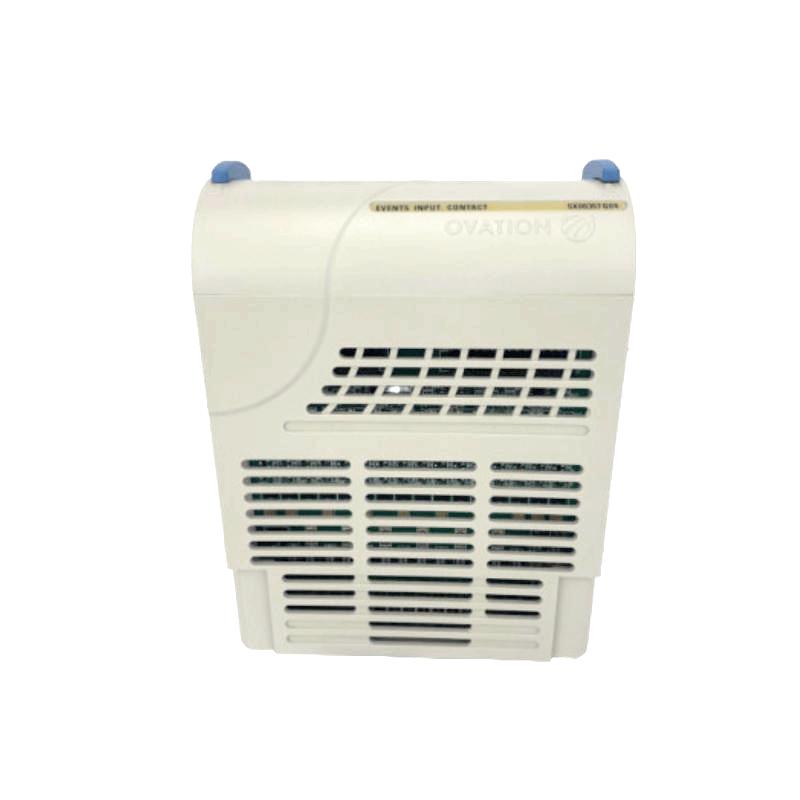

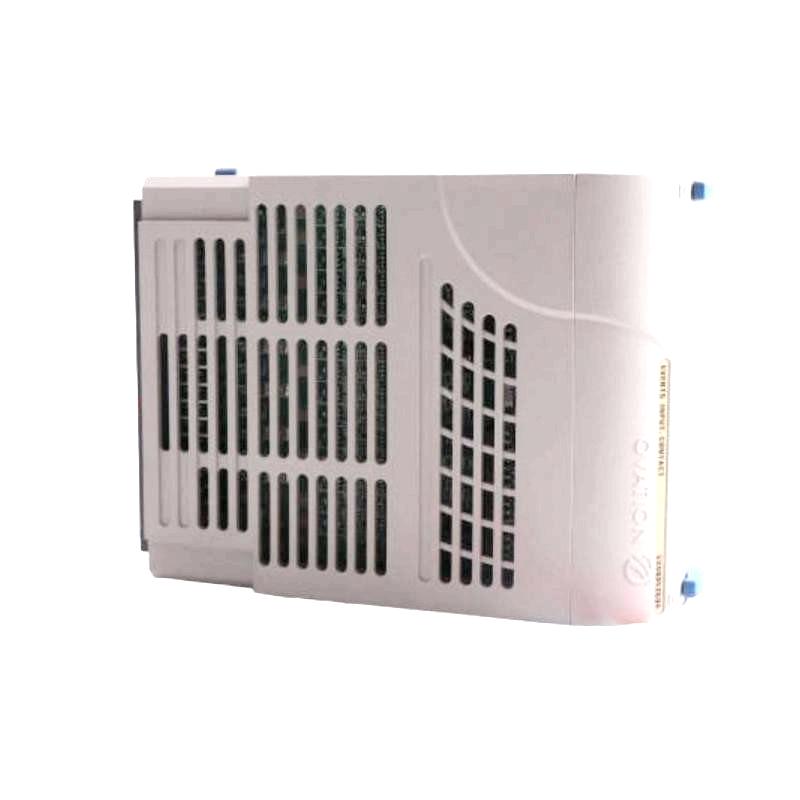

The OVATION 5X00357G04 is a communication interface module used in Emerson’s Ovation distributed control system. It facilitates reliable data exchange between the control processor and field I/O modules, ensuring efficient process monitoring and control.
General Information
Part Number: 5X00357G04
Manufacturer: Emerson
Country of Origin: USA
Module Type: Communication Interface Module
Application: Connects the Ovation controller to I/O modules and other system components, supporting robust communication for process control
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approximately 10 W
Protection: Provides protection against overcurrent and ensures stable operation of connected modules
Communication & Interface
Interface: Ovation system backplane
Communication Protocol: Supports Ovation bus for module-to-controller communication
Diagnostics: Monitors communication status and module health, reports faults to the system controller
I/O & Channels
Analog/Digital I/O: Interfaces with multiple I/O modules for signal transmission
External Load Support: None, used for signal routing and communication only
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Mounting: Rack or cabinet installation in Ovation control systems
Dimensions & Weight
Dimensions (L × W × H): 180 × 80 × 120 mm
Weight: ~1.2 kg
