Overview

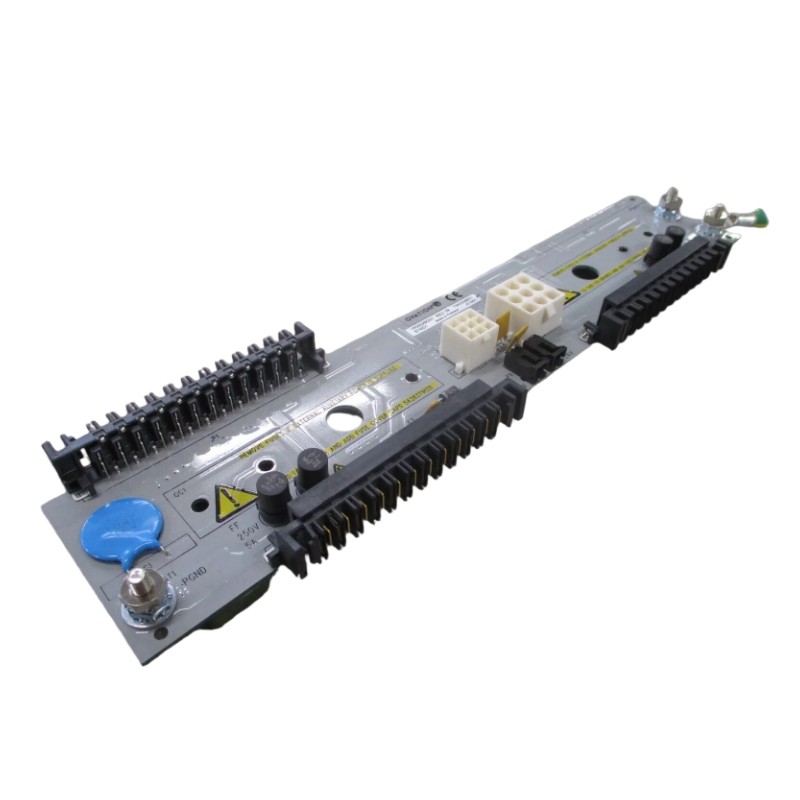

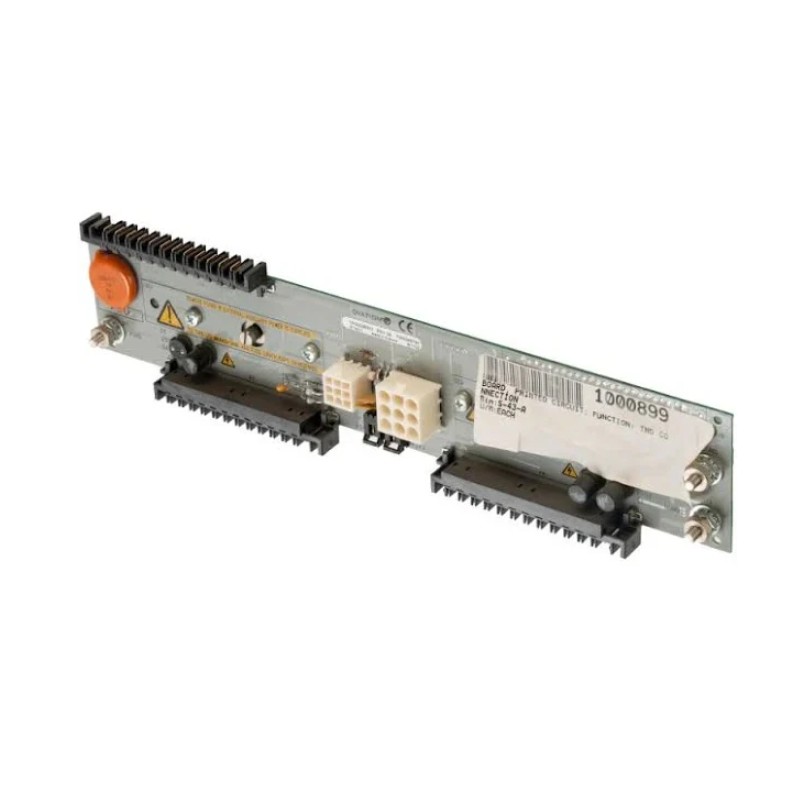

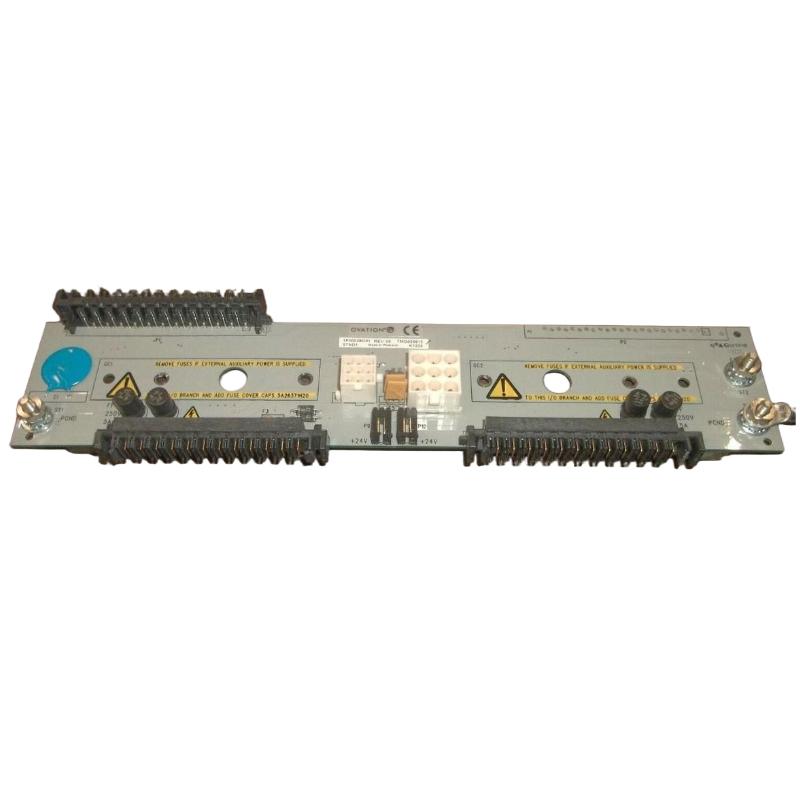

The OVATION 1P00028G01 is a power supply module used in Emerson’s Ovation distributed control system. It provides stable and regulated DC power to I/O modules and system electronics, ensuring reliable operation of the control system.
General Information
Part Number: 1P00028G01
Manufacturer: Emerson
Country of Origin: USA
Module Type: Power Supply Module
Application: Supplies power to Ovation system I/O and control modules, maintaining stable voltage and current for reliable system operation
Power Specifications
Supply Voltage: 120/240 V AC input
Output Voltage: 24 V DC
Output Current: Rated according to module capacity (~5–10 A depending on configuration)
Protection: Includes overload, short-circuit, and overvoltage protection
Communication & Interface
Interface: Direct connection to Ovation system backplane
Diagnostics: Monitors output voltage, current, and internal module health; reports faults to central controller
I/O & Channels
Relay Channels: None
External Load Support: Powers system electronics and connected I/O modules
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Mounting: Rack or cabinet installation in Ovation control systems
Dimensions & Weight
Dimensions (L × W × H): 180 × 80 × 120 mm
Weight: ~1.2 kg
