Overview

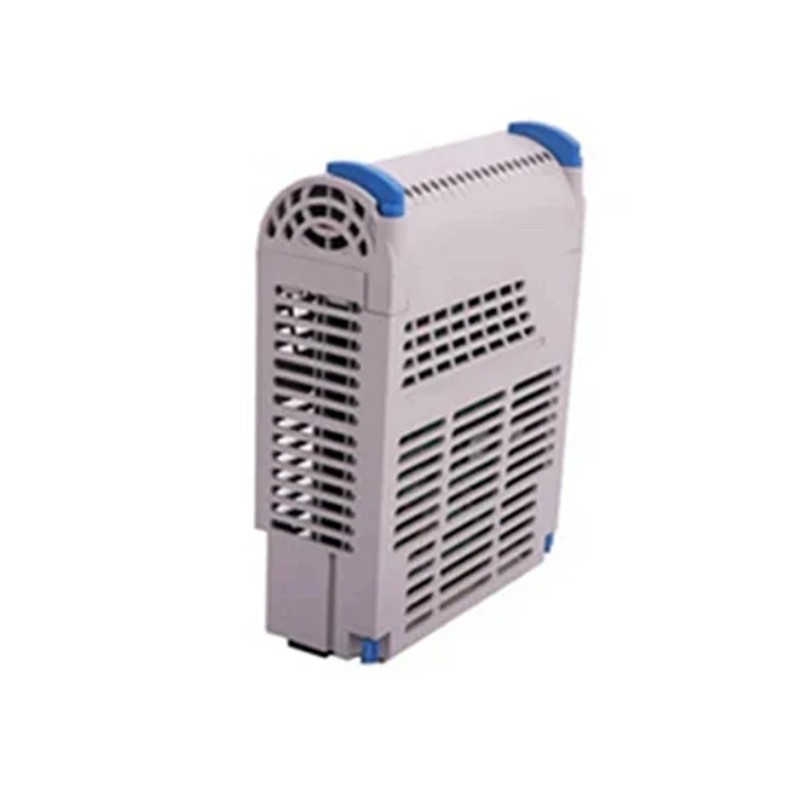

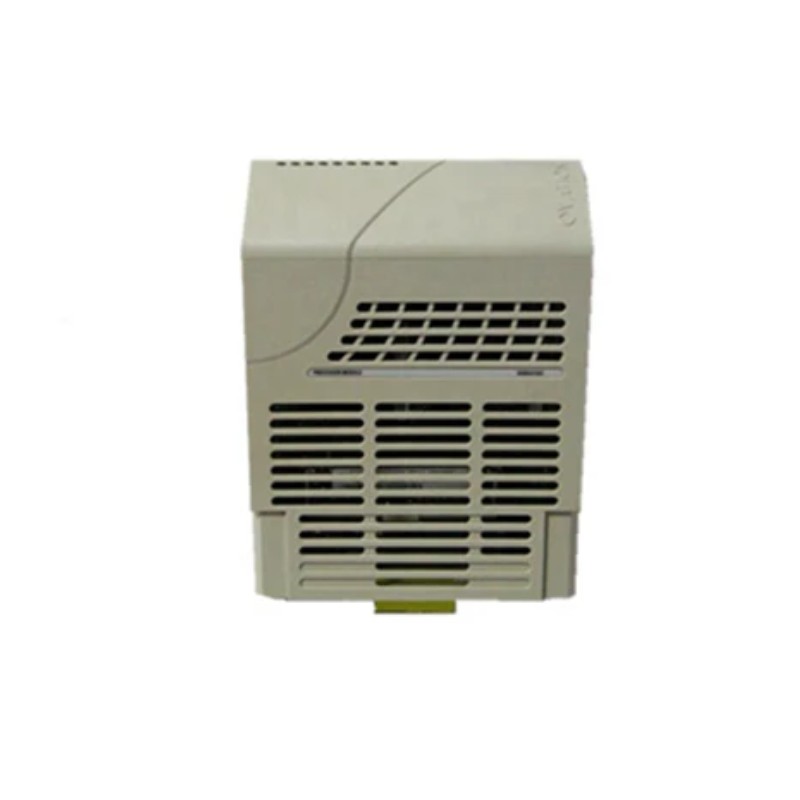

The OVATION 1C31122G02 is a control I/O module used in Emerson Ovation distributed control systems. It manages analog and digital signals, providing precise input/output handling for process control applications in power plants and industrial facilities.
General Information
Part Number: 1C31122G02
Manufacturer: Emerson
Series: Ovation
Type: Control I/O Module
Mounting: Rack or chassis-mounted within Ovation control cabinets
Function: Interfaces with field devices, processes input signals, and controls outputs for process automation
Power Specifications
Supply Voltage: 24 V DC (typical)
Power Consumption: ≤ 15 W
Input: Powered from system backplane
Protection: Surge protection, reverse-polarity protection
Indicators: LED indicators for module status and communication
Communication & Interface
Interfaces: Backplane communication with Ovation control processors
Analog Channels: Supports analog input/output signals
Digital Channels: Supports digital input/output signals
Diagnostics: On-board LEDs for operational and fault status
Operator Interface: LED indicators for quick status monitoring
Environmental
Operating Temperature: 0 to +60 °C
Humidity: Up to 95% RH, non-condensing
Protection Rating: IP20 or within industrial control cabinet
Dimensions & Weight
Dimensions (L × W × H): 330 × 280 × 50 mm
Weight: ~ 0.9 kg
