Overview

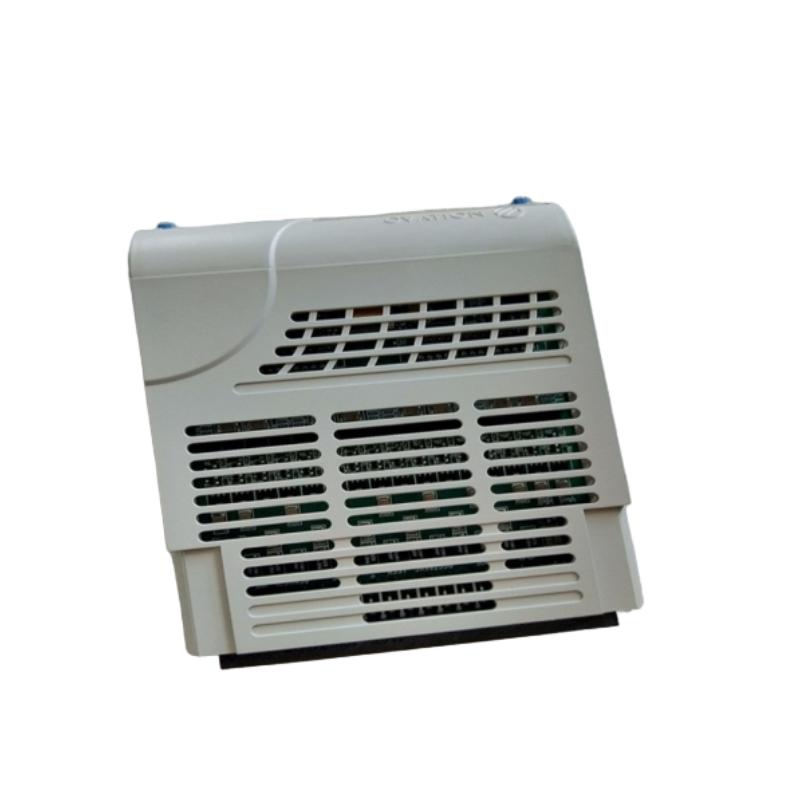

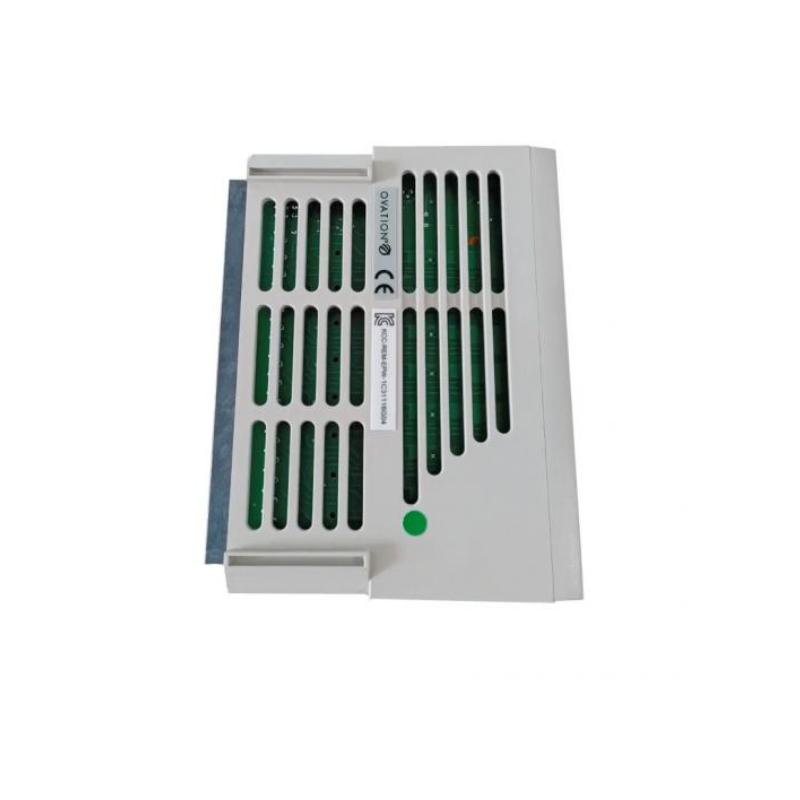

The OVATION 1C31107G02 is an analog input module designed for Emerson’s OVATION Distributed Control System (DCS). It receives analog signals from field sensors, converts them into digital data, and transfers the information to the controller. The module delivers reliable measurement performance, stable operation, and integrated diagnostics suited for industrial process environments.
General Information
Part Number: 1C31107G02
Manufacturer: Emerson
Series: OVATION I/O Modules
Type: Analog Input Module / Interface Module
Mounting: Installed within OVATION I/O chassis
Technology: Analog signal conversion, isolation, diagnostic supervision
Power Specifications
Supply Voltage: 5 V DC or 24 V DC provided from the backplane
Power Consumption: ≤ 6 W
Input: Backplane powered
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for power, status, and fault indication
Communication & Interface
Field Signal Input: Supports common process signals such as 4–20 mA or 1–5 V depending on model configuration
Controller Interface: Converts analog inputs to OVATION-compatible digital data
Diagnostics: Signal integrity checks, channel health monitoring, and fault detection
Operator Interface: LEDs indicating operating state and channel conditions
Reset Features: Software-based soft reset through OVATION engineering tools
I/O & Channels
Analog Input Channels: Up to 8 channels per module
Relay / Output Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: 0 to 55 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: IP20, suitable for standard control cabinet mounting
Dimensions & Weight
Dimensions (L × W × H): 160 × 40 × 120 mm
Weight: ~0.45 kg
