Overview

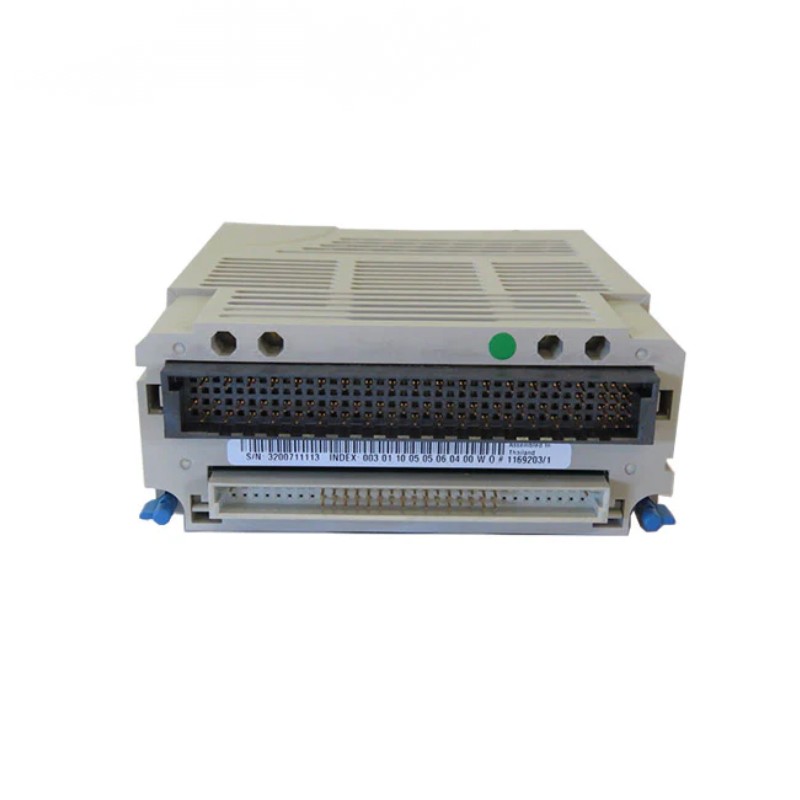

The OVATION 1C31107G01 is an analog input module used in Emerson’s OVATION Distributed Control System (DCS). It captures analog signals from field transmitters and converts them into digital data for the controller. The module provides stable measurement performance, fast sampling, and built-in diagnostics to ensure reliable operation in process automation environments.
General Information
Part Number: 1C31107G01
Manufacturer: Emerson
Series: OVATION I/O Modules
Type: Analog Input Module / Interface Module
Mounting: Rack installation within OVATION I/O chassis
Technology: Analog signal conversion, isolation, diagnostic monitoring
Power Specifications
Supply Voltage: 5 V DC or 24 V DC from chassis backplane
Power Consumption: ≤ 6 W
Input: Powered through backplane
Protection: Overvoltage and reverse-polarity protection
Indicators: LEDs for power, module status, and fault indication
Communication & Interface
Field Signal Input: Supports standard analog inputs such as 4–20 mA or 1–5 V (depending on configuration)
Controller Interface: Provides digitized signal data to the OVATION controller
Diagnostics: Signal integrity monitoring, channel health detection, fault reporting
Operator Interface: LEDs for power, communication, and fault
Reset Features: Supports software soft reset through OVATION tools
I/O & Channels
Analog Input Channels: Up to 8 channels per module
Relay / Output Channels: None
External Load Support: Not applicable
Environmental
Operating Temperature: 0 to 55 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: Standard industrial cabinet, IP20 equivalent
Dimensions & Weight
Dimensions (L × W × H): 160 × 40 × 120 mm
Weight: ~0.45 kg
