Overview

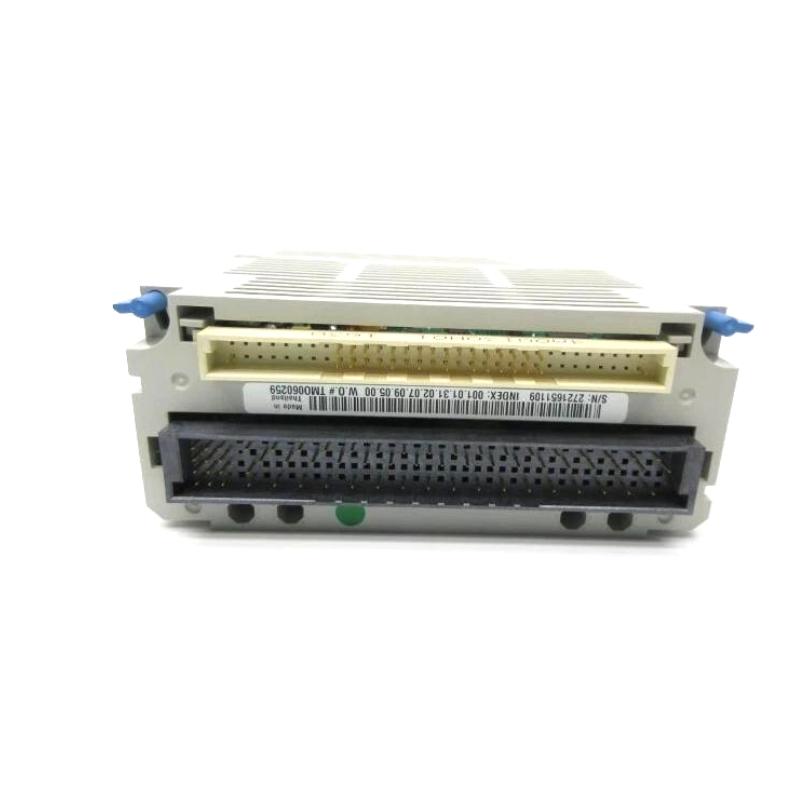

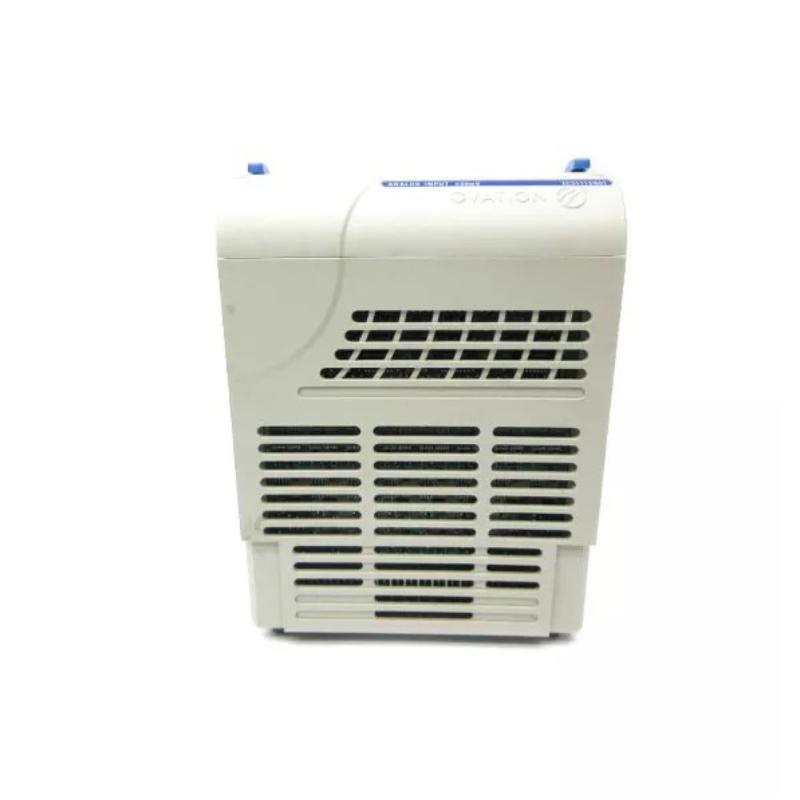

The OVATION 1C31113G01 is an analog input module designed for Emerson’s OVATION Distributed Control System (DCS). It receives signals from field instruments, converts them into digital data, and provides this information to the control system. The module is built for high-accuracy measurement, rapid data acquisition, and includes integrated diagnostics to ensure reliable and continuous operation.
General Information
Part Number: 1C31113G01
Manufacturer: Emerson
Series: OVATION I/O Modules
Type: Analog Input Module / Interface Module
Mounting: Rack installation within OVATION I/O chassis
Technology: Signal conversion, channel isolation, diagnostic monitoring, fault detection
Power Specifications
Supply Voltage: 5 V DC or 24 V DC via chassis backplane depending on chassis type
Power Consumption: ≤ 6 W
Input: Powered through backplane
Protection: Overvoltage and reverse-polarity protection

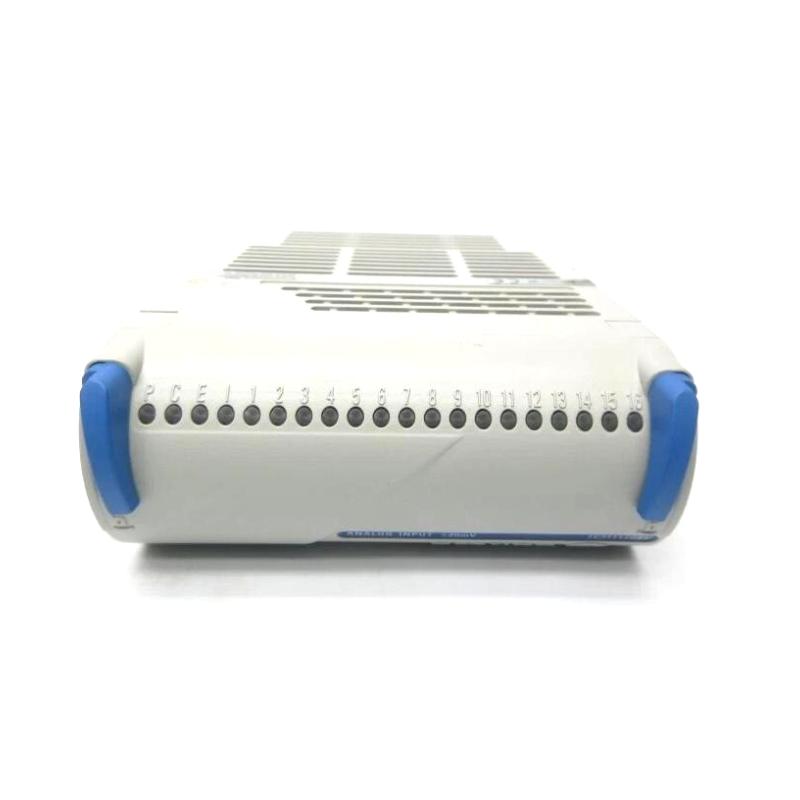

Indicators: LEDs for power, module status, and fault
Communication & Interface
Field Signal Input: Supports 4–20 mA, 0–10 V, or thermocouple signals depending on module configuration
Controller Interface: Converts analog signals into digital data compatible with OVATION DCS
Diagnostics: Channel health monitoring, signal failure detection, and status reporting
Operator Interface: LEDs for power, communication, and fault
Reset Features: Supports soft reset via OVATION system software
I/O & Channels
Analog Input Channels: Up to 8 channels per module
Relay / Output Channels: None, used for signal acquisition only
External Load Support: Not applicable
Environmental
Operating Temperature: 0 to 55 °C
Humidity: 10–90% RH, non-condensing
Protection Rating: Standard industrial cabinet, IP20 equivalent
Dimensions & Weight
Dimensions (L × W × H): 160 × 40 × 120 mm
Weight: ~0.45 kg
