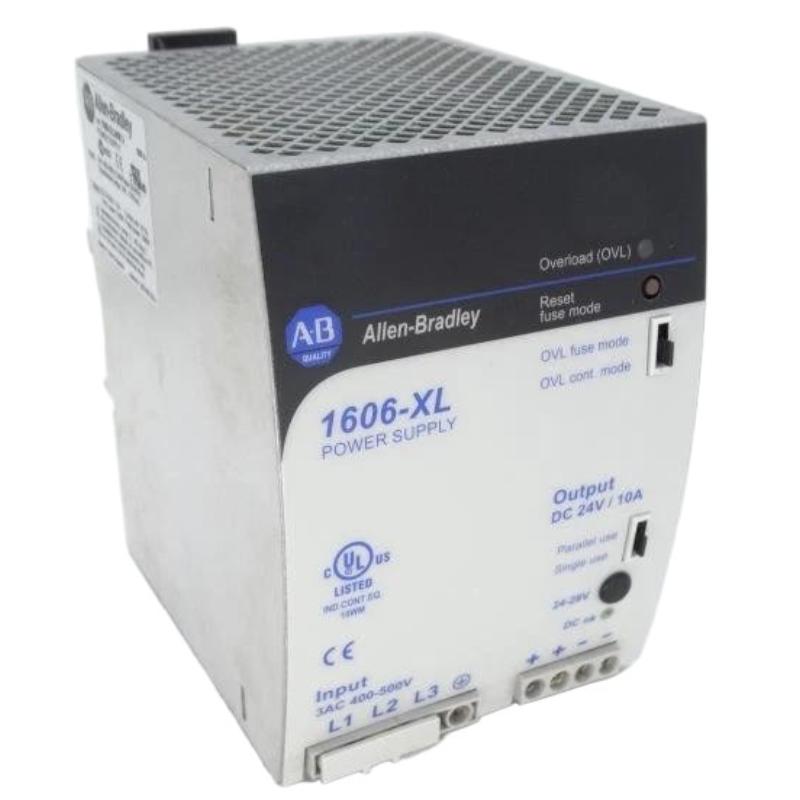

Allen Bradley 1606-XL240E-3 Power Supply Installation Overview
The Allen Bradley 1606-XL240E-3 Power Supply installation process focuses on stable 24VDC distribution, correct three-phase input wiring, and reliable commissioning for industrial control systems. As a 240 W industrial power supply, the 1606-XL240E-3 is commonly applied in PLC Controller cabinets to provide regulated DC power for controllers, communication Module devices, sensors, and field instruments.
Brand: Allen Bradley
Product Type: Industrial Power Supply
Model: 1606-XL240E-3
Country of Origin: USA
In real automation projects, many control failures are not caused by PLC hardware or software problems but by unstable DC power conditions. A properly installed power supply ensures that the entire System Configuration operates with consistent voltage and sufficient load capacity.
Allen Bradley 1606-XL240E-3 Power Supply Preparation Before Installation
Before starting the Allen Bradley 1606-XL240E-3 Installation Guide procedure, engineers should evaluate the complete electrical design of the control cabinet.
The preparation process should include:
Confirming AC input requirements.
Calculating total 24VDC load consumption.
Reviewing PLC Controller and Module power requirements.
Checking protection devices.
Evaluating cabinet temperature and ventilation.
The 1606-XL240E-3 provides a regulated 24VDC output suitable for industrial automation applications. However, selecting a power supply only according to PLC Controller consumption may create problems when additional devices are added later.
Typical connected loads may include:
PLC CPU modules.
Remote I/O stations.
Industrial communication equipment.
Analog input and output Modules.
Sensors and transmitters.
Safety control components.
During one commissioning project, a machine upgrade added several communication Modules and additional sensors. The original power calculation did not include the new devices. The system showed random controller resets during startup.
Field measurement results:
Normal DC output: 24.3 VDC
Voltage during startup peak: 21.8 VDC
After reviewing the System Configuration and separating high-current devices, the control system returned to stable operation.
Allen Bradley 1606-XL240E-3 Power Supply Wiring Installation Procedure
Correct wiring is essential for reliable Allen Bradley 1606-XL240E-3 Power Supply operation.
The installation engineer should verify:
AC input terminal connection.
Protective earth wiring.
Positive and negative DC polarity.
Cable size selection.
Terminal tightening condition.
A recommended control cabinet power structure:
Three-phase AC Input
→ Allen Bradley 1606-XL240E-3 Power Supply
→ DC Protection Distribution
→ PLC Controller / Module / Sensor Loads
Separating different DC branches improves future Troubleshooting efficiency because individual circuits can be isolated during Fault Diagnosis.
One common field issue is improper cable routing. When DC power cables are installed together with motor cables or high-frequency switching lines, electrical noise may affect sensitive analog signals and communication Modules.
Good installation practice includes:
Keeping signal wiring separated from power cables.
Using proper grounding methods.
Avoiding unnecessary cable loops.
Labeling DC branches clearly.
Allen Bradley 1606-XL240E-3 Setup and Commissioning Process
The Setup and Commissioning stage verifies whether the power supply performs correctly under actual operating conditions.
The commissioning engineer should complete:
Output Voltage Verification
Measure the DC output before connecting the complete system.
Expected observation:
Stable 24VDC output.
No abnormal voltage fluctuation.
Correct polarity.
Load Testing
Connect automation devices gradually:
PLC Controller.
Communication Module.
Sensors.
Field actuators.
Monitor whether voltage remains stable during machine operation.
System Operation Check
Confirm:
PLC startup sequence.
Network communication.
I/O response.
Sensor feedback signals.
In one field commissioning case, the 1606-XL240E-3 was installed in a packaging machine cabinet. Initial startup testing showed:
Output voltage: 24.4 VDC
PLC Controller status: Normal
Communication Modules: Stable
Sensor signals: Correct
After continuous operation testing, the system completed production cycles without power-related alarms.
Allen Bradley 1606-XL240E-3 Installation Guide Long-Tail Keywords
This Installation Guide covers common automation engineering requirements:
Allen Bradley 1606-XL240E-3 Power Supply Installation Guide
1606-XL240E-3 wiring and commissioning
Allen Bradley 24VDC power supply setup
PLC Controller power supply configuration
Industrial automation System Configuration setup
A correct installation process improves machine reliability and reduces unexpected downtime caused by unstable control power.
