Honeywell 05701-A-0301 Single Channel Control Card Installation Guide
Time:2026-07-14 Browse: 1
Honeywell 05701-A-0301 Single Channel Control Card Installation Overview
Honeywell 05701-A-0301 Installation Guide procedures focus on reliable signal connection, correct System Configuration, and accurate commissioning of the gas detection channel. In practical industrial installations, most startup problems are related to field wiring mistakes, unstable power supply, or incorrect parameter settings rather than failure of the control card itself.

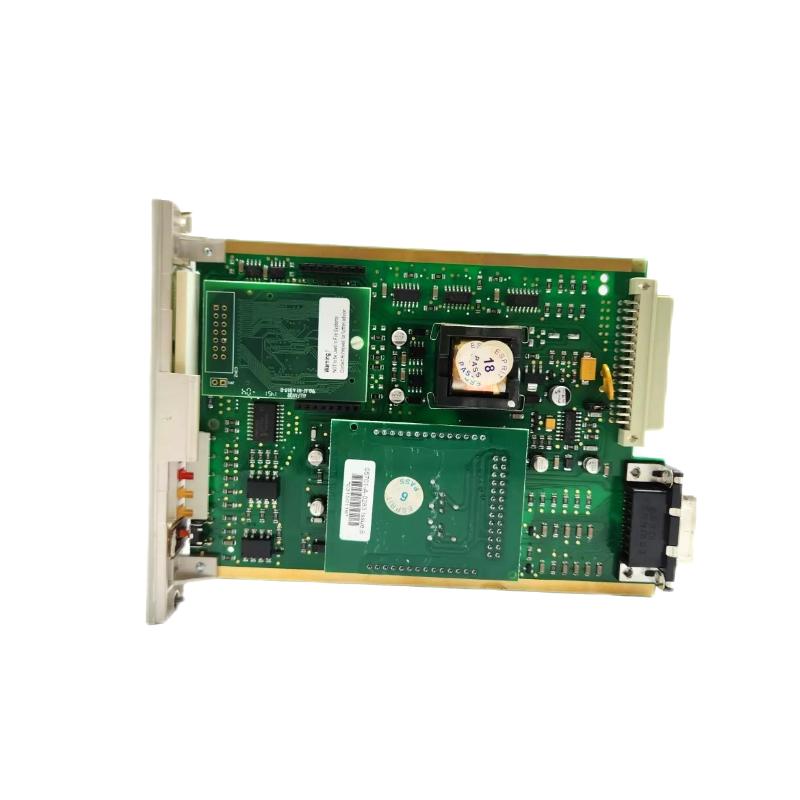

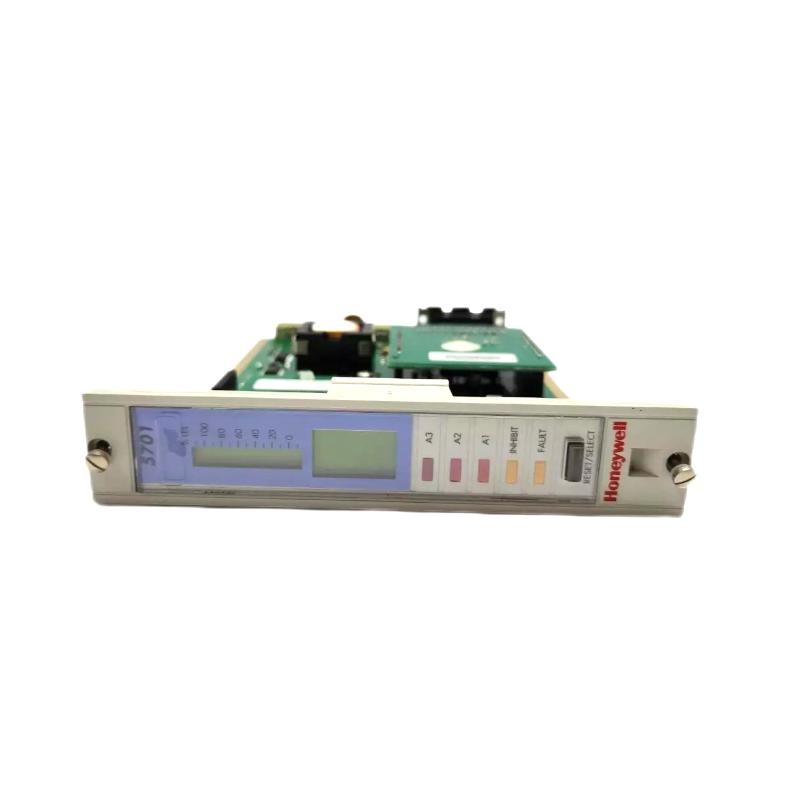

The Honeywell 05701-A-0301 Single Channel Control Card is designed for gas detection applications where one sensor input channel requires continuous monitoring, alarm processing, and fault supervision. As a key PLC Controller style module in the detection system, it receives field sensor signals, processes measurement values, and manages alarm functions according to configured operating parameters.
A complete installation should confirm the full signal path:
Sensor → Sensor Interface → Honeywell 05701-A-0301 Control Card → Alarm Output System
The purpose of commissioning is not only to start the module but also to verify that every part of the measurement chain operates correctly.
Honeywell 05701-A-0301 Module Preparation Before Setup
Before installing the Honeywell 05701-A-0301 Module, engineers should review the application conditions and confirm that the selected configuration matches the field device.
Important preparation work includes:
Confirming the connected gas sensor type
Checking the required input signal format
Inspecting cabinet power capacity
Reviewing alarm settings
Verifying cable routing and shielding method
The installation environment has a direct influence on measurement stability. Signal cables installed near motors, variable frequency drives, or high-current equipment may introduce electrical noise and create abnormal readings.
During one commissioning project in a chemical processing area, a newly installed Honeywell 05701-A-0301 showed a fault indication immediately after startup. The engineering team initially suspected a damaged control card.
After checking the power supply, the measured voltage dropped from 24.2VDC to 21.4VDC when multiple field detectors started simultaneously. The actual problem was insufficient power distribution capacity. After correcting the DC supply arrangement, the control card operated normally.
This case shows why system-level inspection is important before replacing hardware.
Honeywell 05701-A-0301 Wiring Installation and Signal Connection
Correct wiring is the foundation of Honeywell 05701-A-0301 Setup and Commissioning.
The main wiring checks include:
Correct signal polarity
Secure terminal connections
Proper cable shielding
Reliable grounding method
Separation between signal and power cables
The 4-20mA signal loop should be checked before final commissioning. Engineers normally verify that the current value changes smoothly according to the sensor condition.
During field testing, typical signal verification includes:
A 4mA input represents the normal low measurement condition.
A middle-range current confirms that the control card can process changing sensor values.
A 20mA input verifies full-scale response and alarm processing.
If the displayed value does not match the measured current, engineers should investigate the sensor loop and configuration before replacing the Honeywell 05701-A-0301 Module.
Honeywell 05701-A-0301 Setup and Commissioning Process
The Honeywell 05701-A-0301 Commissioning stage requires functional testing of the complete control channel.
Engineers normally check:
Power indication status
Display operation
Sensor input response
Alarm activation
Fault monitoring function
A practical commissioning test can be performed by applying simulated sensor signals and observing the response of the Single Channel Control Card.
During one site acceptance test, engineers recorded the following values:
The zero condition signal was measured at 4.03mA.
The mid-range simulation produced a stable display response.
The alarm test signal increased to 16mA, and the configured alarm output activated correctly.
The test confirmed that the Honeywell 05701-A-0301 was correctly processing input signals and executing the programmed alarm logic.
Honeywell 05701-A-0301 System Configuration Verification After Installation
After successful startup, the final Installation Guide verification should focus on long-term stability.
Engineers should confirm:
Stable sensor readings
Correct alarm thresholds
Normal fault monitoring
Proper recovery after power interruption
A reliable System Configuration ensures that the Honeywell 05701-A-0301 Single Channel Control Card can continue providing accurate monitoring during continuous industrial operation.
Field experience shows that careful commissioning reduces unnecessary maintenance problems and prevents false alarms caused by installation errors.
