Schneider Electric Servo System: ATV71WD75N4/XENG1491/XALK174 Overview

In industrial automation, precise motion control is essential for achieving high-efficiency production. Schneider Electric, a leading provider in this field, offers comprehensive solutions spanning drives, feedback modules, and connected actuators. This article focuses on the Schneider Electric servo system configuration: ATV71WD75N4/XENG1491/XALK174, examining its technical components and application scenarios.

This complete model identifier typically represents a specific servo system configuration, including a servo drive, encoder feedback module, and necessary connection cables.

Component Breakdown

1. ATV71WD75N4 Servo Drive
   The ATV71WD75N4 is part of Schneider Electric’s ATV71 series of high-performance drives and servo controllers, widely used for applications requiring precise speed and torque control. The suffix "WD75N4" defines specific electrical ratings such as power level, supply voltage, and design version.

2. XENG1491 Encoder Module & XALK174 Cable

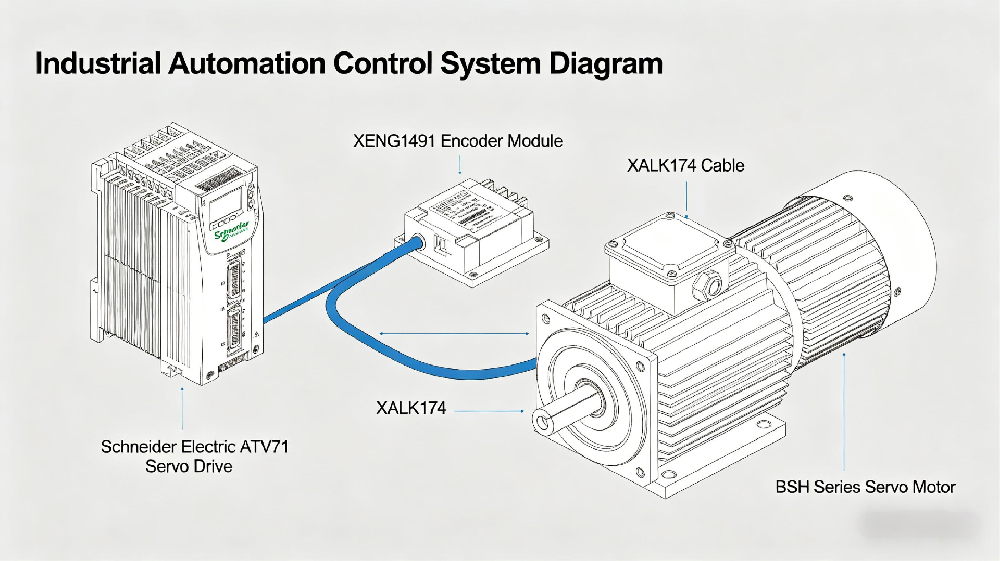

   XENG1491 is an encoder interface module providing high-resolution feedback to the drive, while XALK174 is the associated connection cable linking the servo motor to the drive. This modular design allows flexible system configuration, accommodating different encoder types and communication protocols.

3. Servo Motors
   The system pairs with Schneider Electric’s servo motor series, such as the BSH series synchronous motors, including models like BSH1404P11A1P, BSH1404P11A2P, and BSH1404P11F1P. These motors typically feature:

• Frame size: 140 mm

• Rated torque: 32.1 Nm

• Shaft type: keyed

• Protection: IP40
  Suffixes such as “A1P” or “F2P” indicate electrical configurations, feedback types, or brake options.

Other series like ILA2 and ILE1 offer motors for varying loads, inertias, and dynamic performance. Their model codes convey key specifications: series, frame size, performance level, feedback system, and mechanical/electrical interfaces.

Application Scenarios

Q1: What control requirements does the ATV71WD75N4 + XENG1491 + XALK174 combination address?
This setup forms a closed-loop servo system capable of high-precision position, speed, and torque control. The XENG1491 module provides the drive with real-time position and velocity feedback from the motor encoder via the XALK174 cable. The ATV71WD75N4 compares the feedback to the command input and adjusts motor output in real-time, ensuring precise motion. Typical applications include CNC machine axes, printing press registration units, and robotic joints.

Q2: How to select a suitable servo motor from numerous options (e.g., ILA2E572TB1A0 or ILA2P571PC1F0)?
Selection depends on multiple factors:

1. Load characteristics: Continuous and peak torque, load inertia, and inertia matching.

2. Speed requirements: Maximum speed, acceleration, and deceleration.

3. Precision and feedback: Encoder type and resolution must match the drive’s capabilities.

4. Environment and installation: IP rating, cooling, mounting method, and brake requirements.

5. Drive compatibility: Rated voltage, current, and feedback protocol must align with the ATV71 drive and XENG1491 module.

Q3: Key points for system integration and maintenance:

• Electrical installation: Correct voltage, proper cable separation, grounding, and cable length.

• Parameter setup: Accurate motor parameters, encoder type, and resolution configuration.

• Mechanical installation: Proper shaft alignment, coupling, and brake wiring if applicable.

• Maintenance and diagnostics: Regular checks on motor temperature, load, cable integrity, and operation noise.

Conclusion

The ATV71WD75N4/XENG1491/XALK174 configuration represents a classic, complete servo solution. With a modular design spanning the drive, encoder interface, connection cables, and compatible servo motors (BSH, ILA2, ILE1 series), it provides a solid foundation for building high-precision motion control systems. Understanding the technical meaning behind these model codes, along with careful selection, installation, and commissioning, is crucial for achieving reliable, precise, and efficient operation in industrial applications. Always refer to the latest official technical documentation for final system configuration.
