Overview

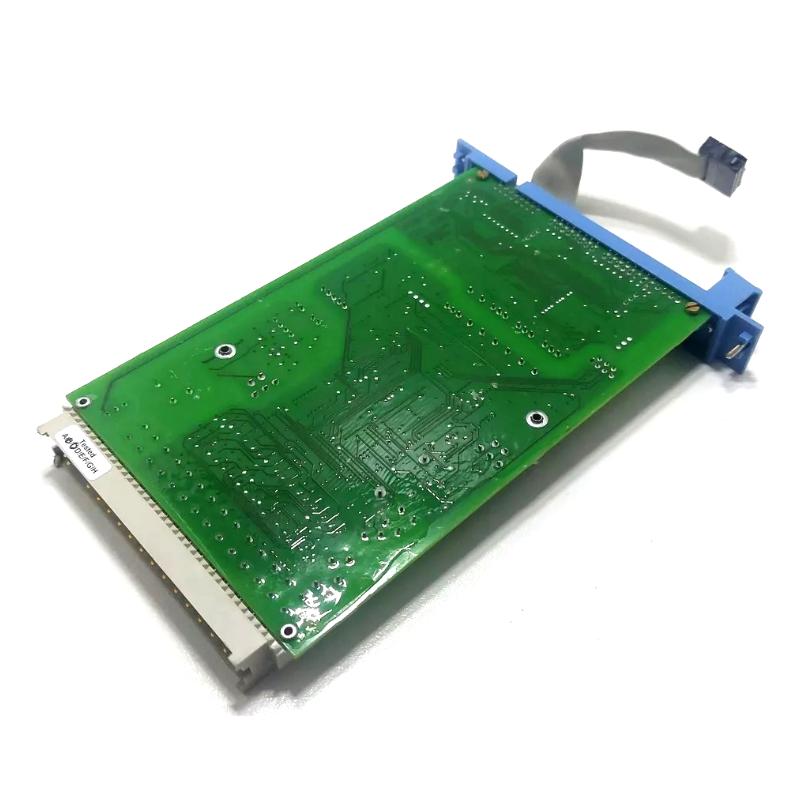

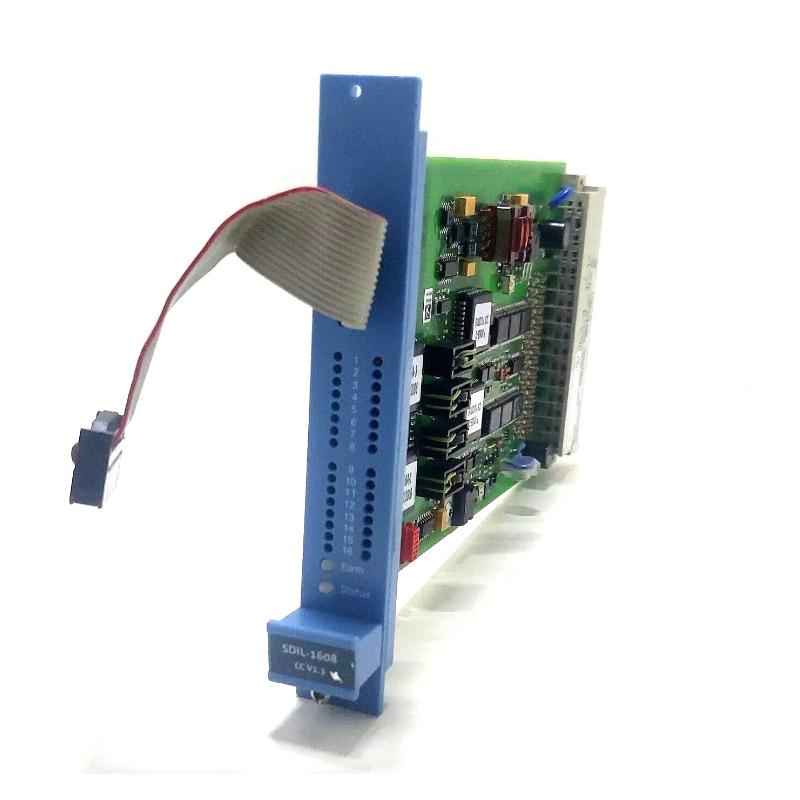

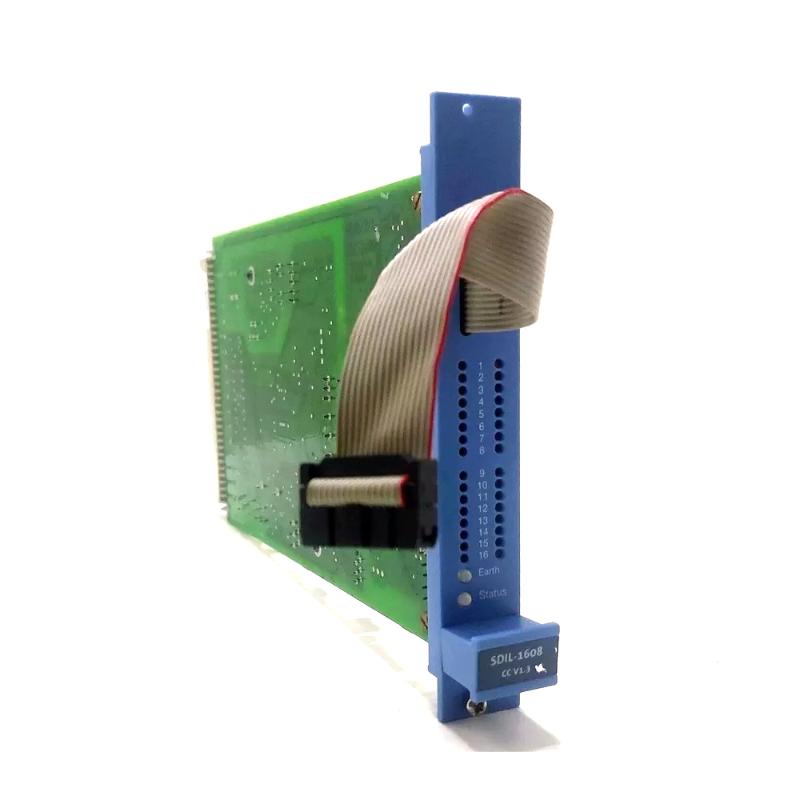

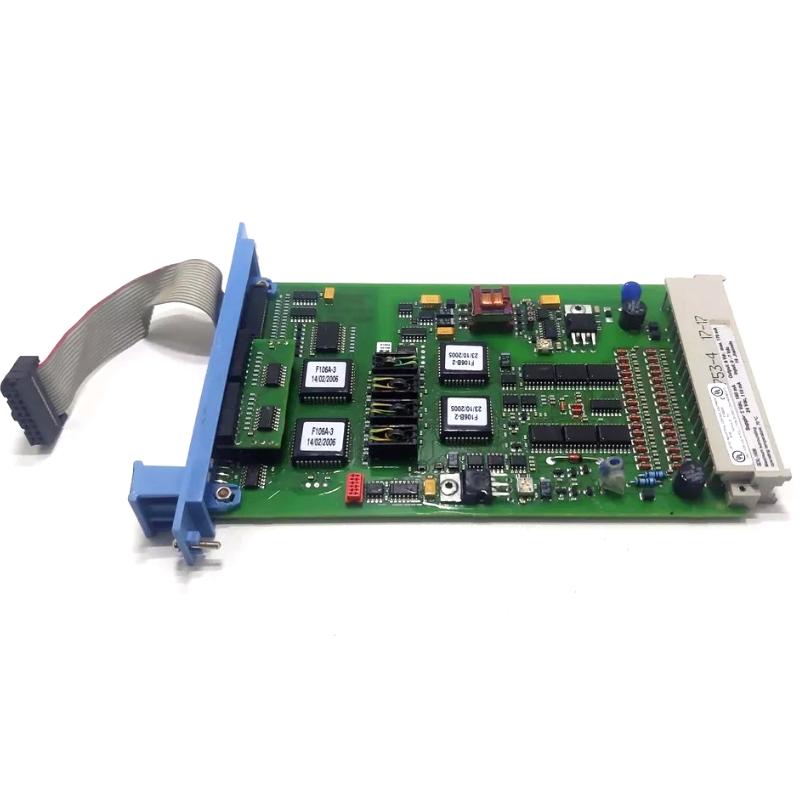

The Honeywell FC-SDIL-1608 is a safety-rated digital input module designed for use in industrial safety systems under the Safety Manager/FC series platform. It provides multiple digital input channels with loop-monitoring and line integrity detection, suitable for Safety Instrumented System (SIS) applications.

General Information

• Model / Type: FC-SDIL-1608

• Manufacturer: Honeywell

• Country of Origin: United States

• Product Category: Safe Digital Input Module – 16 channels, line-monitored

• Platform: Safety Manager / FC series for industrial safety systems

Electrical & Functional Specifications

• Number of Input Channels: 16

• Input Signal Type: Loop-monitored digital inputs or status signals from proximity switches (NAMUR / DIN 19234)

• Switch Level: 1.4–1.9 mA

• Hysteresis: 0.2 mA ± 0.05 mA

• Input Filter: First-order low pass at 100 Hz

• Maximum Field Wire Resistance: 50 Ω

• 8 V Loop Supply Output on Module: Output voltage 7.9–8.7 V, Output current 170 mA (short-circuit proof)

• Power Requirements: 5 V DC, 160 mA; 24 V DC, 110 mA

• Approvals / Certifications: CE, TUV, UL, CSA, FM

Environmental Conditions

• Operating Temperature Range: Approximately –20 °C to +60 °C (depending on variant)

• Storage Temperature Range: Approximately –40 °C to +85 °C

• Humidity: Up to 95% RH, non-condensing

• Mounting: Module fits rack / chassis mounting; occupies 4 TE width × 3 HE height unit size

Dimensions & Weight

• Dimension: Approx. 190  × 149  × 74 mm

• Weight: Approximately 0.14 kg
