Overview

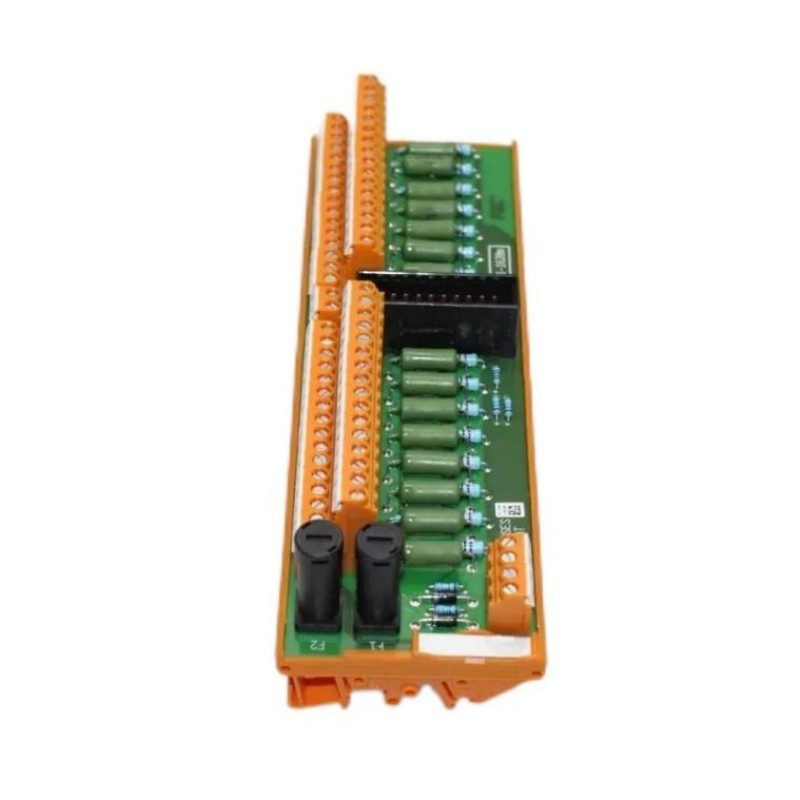

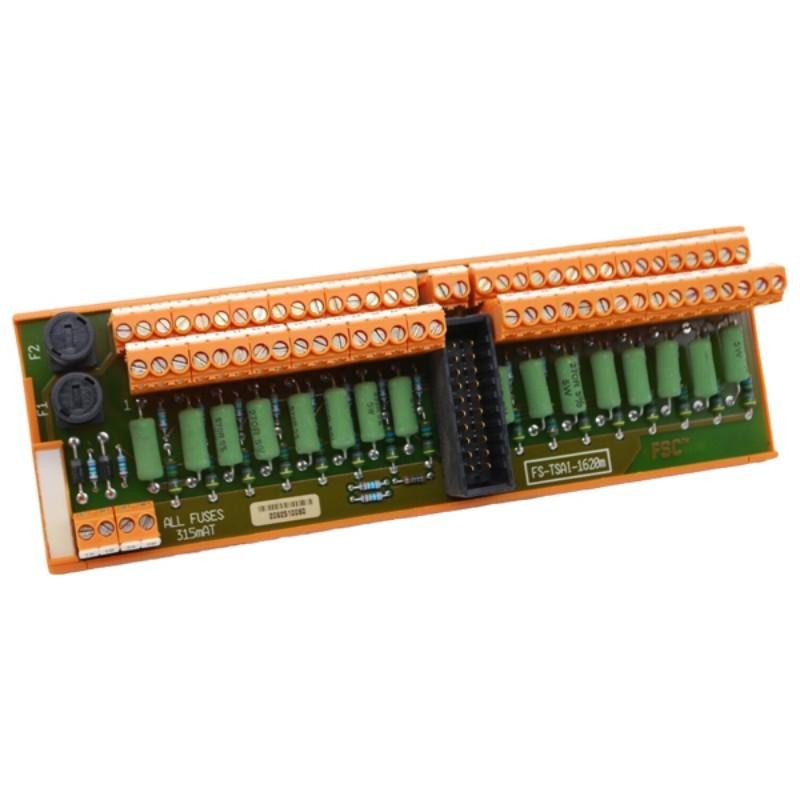

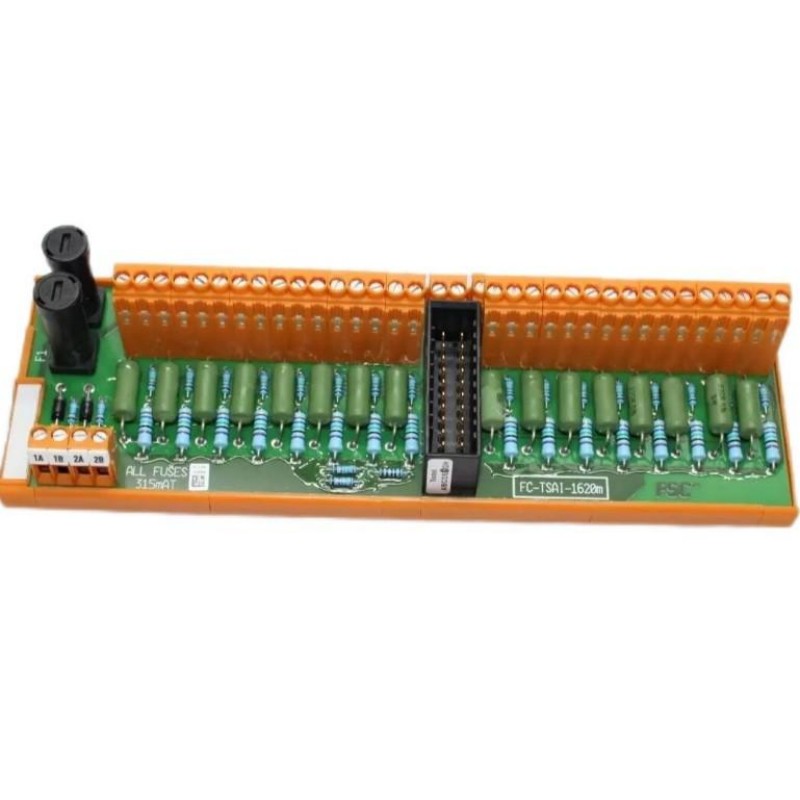

The FC‑TSAI‑1620M is a 16‑channel analog input field termination assembly for 0(4)‑20 mA signals. It provides secure wiring and interfaces with Honeywell safety input modules. Brand: Honeywell. Country of Origin: USA.
General Information
Part Number: FC‑TSAI‑1620M
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Analog Input Field Termination Assembly
Channels: 16 (two groups of 8)
Function: Interfaces field transmitters to safety input modules
Power Specifications
Supply Voltage: 30 V DC (~3 mA idle)
Input Range: 0–25 mA per channel
Input Resistance: 250 Ω
Transmitter Supply Output: 270 Ω, max 120 mA per channel
Communication & Interface
Signal Type: 0/4–20 mA analog input
Connections: Screw terminals, DIN rail mounting
Diagnostics: Monitors supply and loop integrity
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Rack or cabinet
Dimensions & Weight
Dimensions: 210 × 70 × 60 mm
Weight: 0.3 kg
