Honeywell FC‑TDOL‑0724P | Digital Output Module Quality Selection

Overview

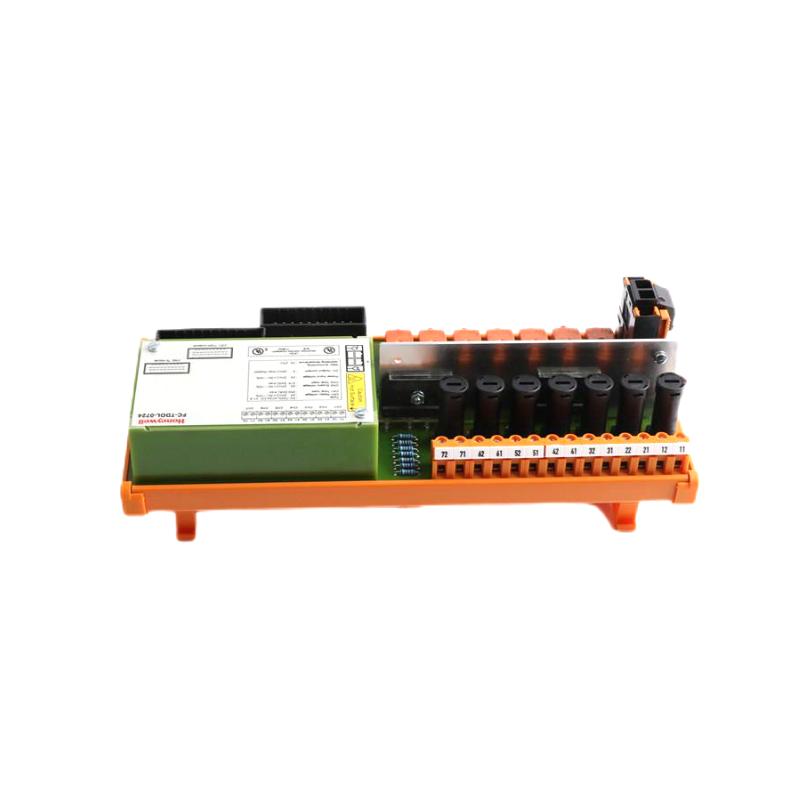

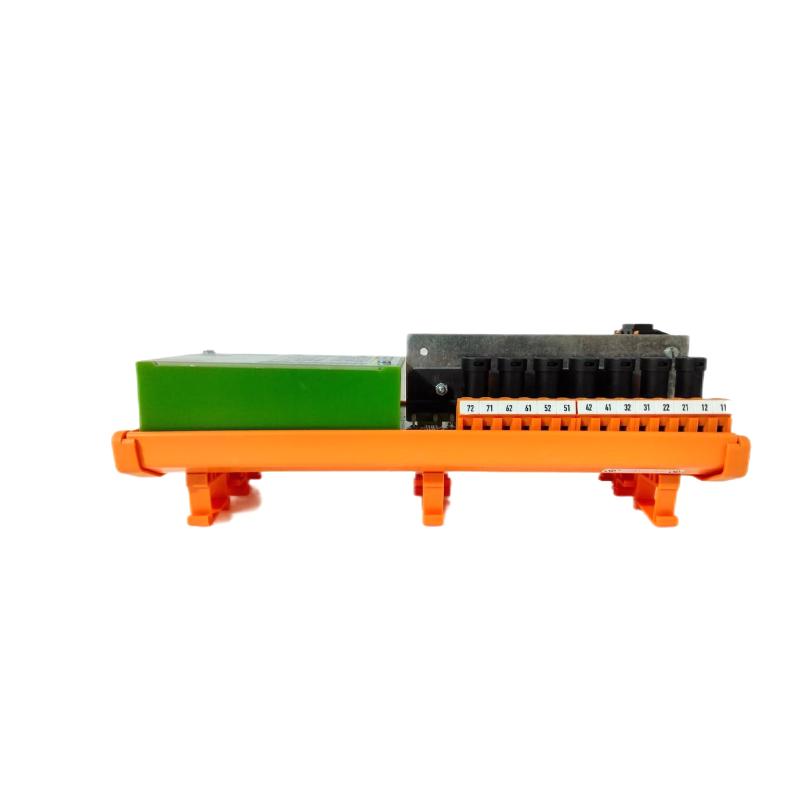

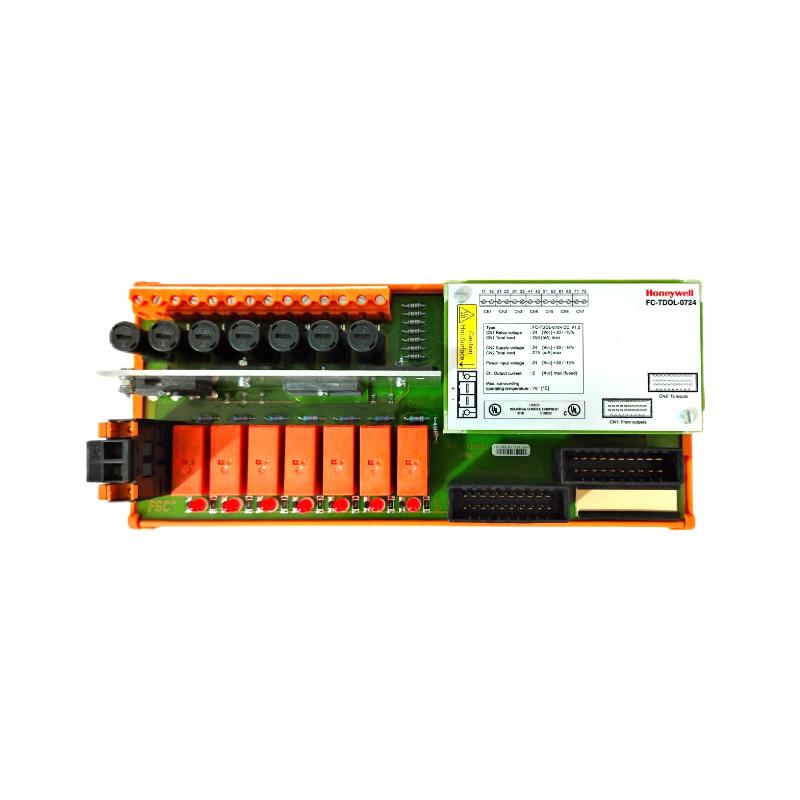

The FC‑TDOL‑0724P is a 7‑channel digital output module featuring loop‑monitoring for 24 V DC field loads in safety control systems. Brand: Honeywell. Country of Origin: USA.

General Information
Part Number: FC‑TDOL‑0724P
Manufacturer: Honeywell Safety Manager Systems
Brand: Honeywell
Country of Origin: USA
Type: Field Termination Assembly — Digital Output Module
Channels: 7 monitored output loops
Function: Provides digitally controlled DC outputs with loop monitoring (short‑circuit and open‑circuit detection) for 24 V loads

Power Specifications
Supply Voltage: 24 V DC nominal
Max Output Current: 2 A per channel (24 V DC resistive or inductive load)
Channel Fuses: Slow‑acting 2 A per channel
Max Load Resistance: Up to ~2200 Ω depending on ambient conditions
Leakage Current: Approx. 1.1 mA at 24 V

Communication & Interface
Signal Type: 24 V DC digital outputs
Monitoring: Each channel supervises load line for open or short condition

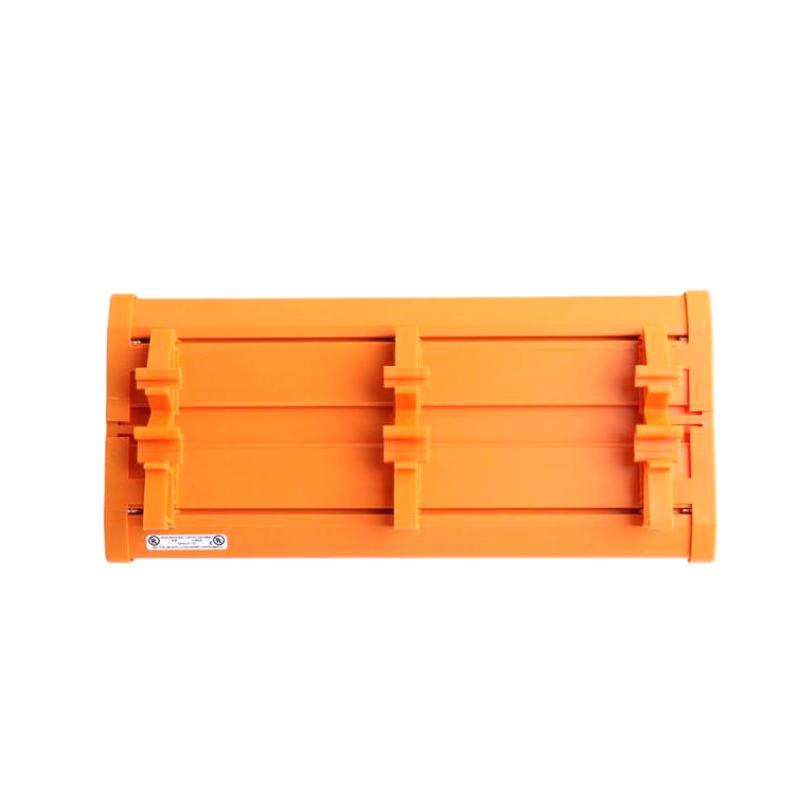

Interface: Mounted on DIN rail or inside control cabinet; status LEDs for each channel indicate output and fault conditions

Environmental
Operating Temperature: ‑20 °C to +70 °C
Storage Temperature: ‑40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Installation: Suitable for industrial control cabinets

Dimensions & Weight
Dimensions: 240  × 109  × 71 mm (approximate)
Weight: ~1 kg
