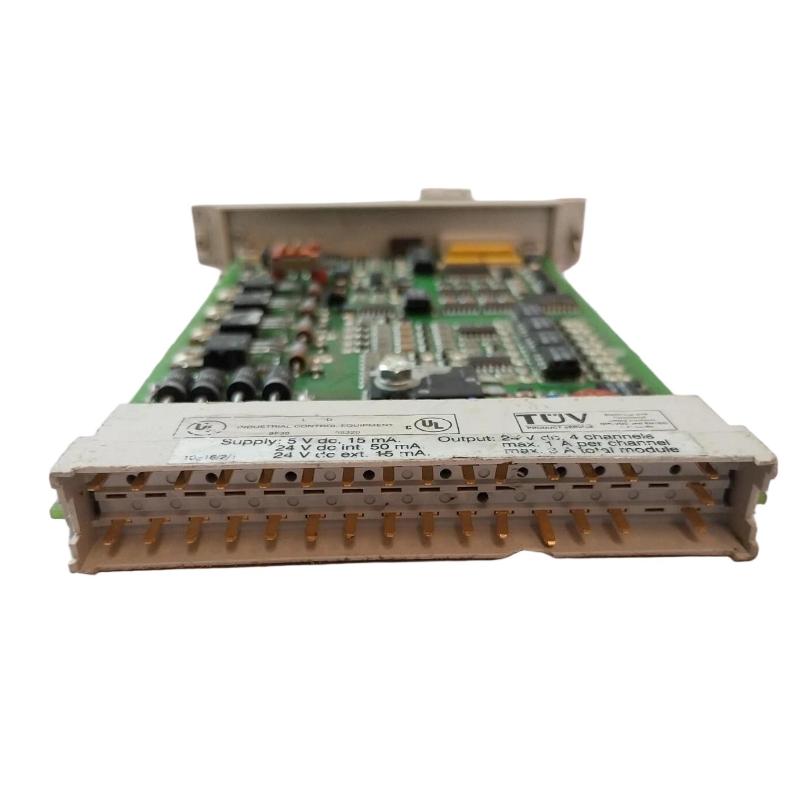

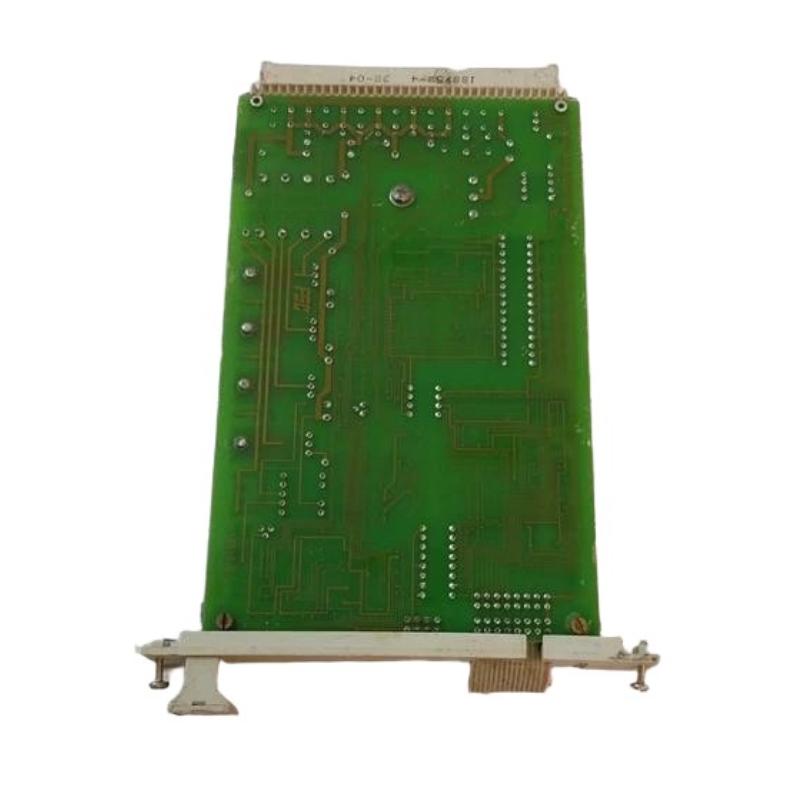

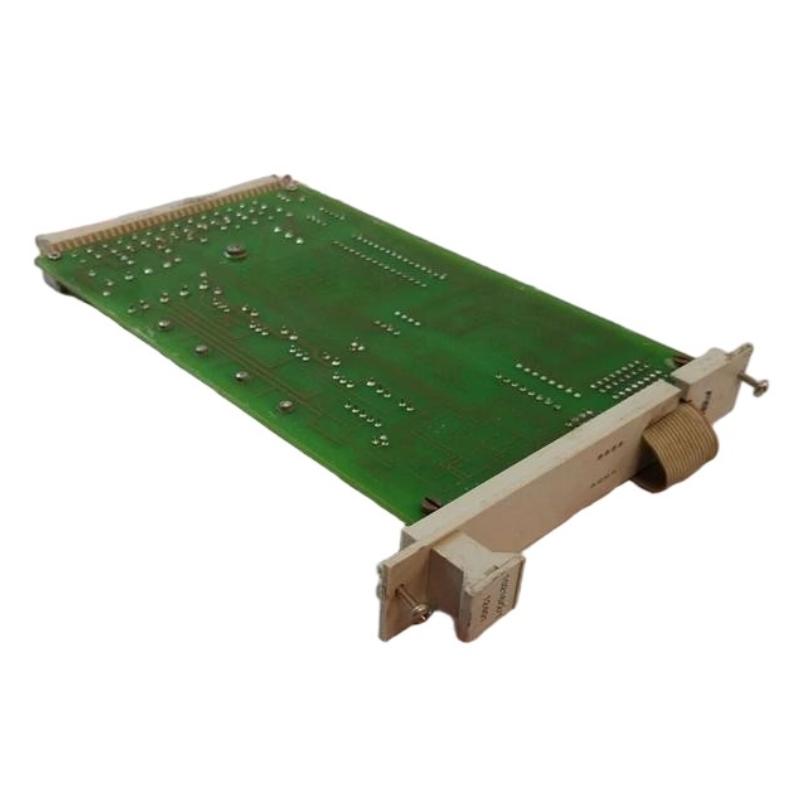

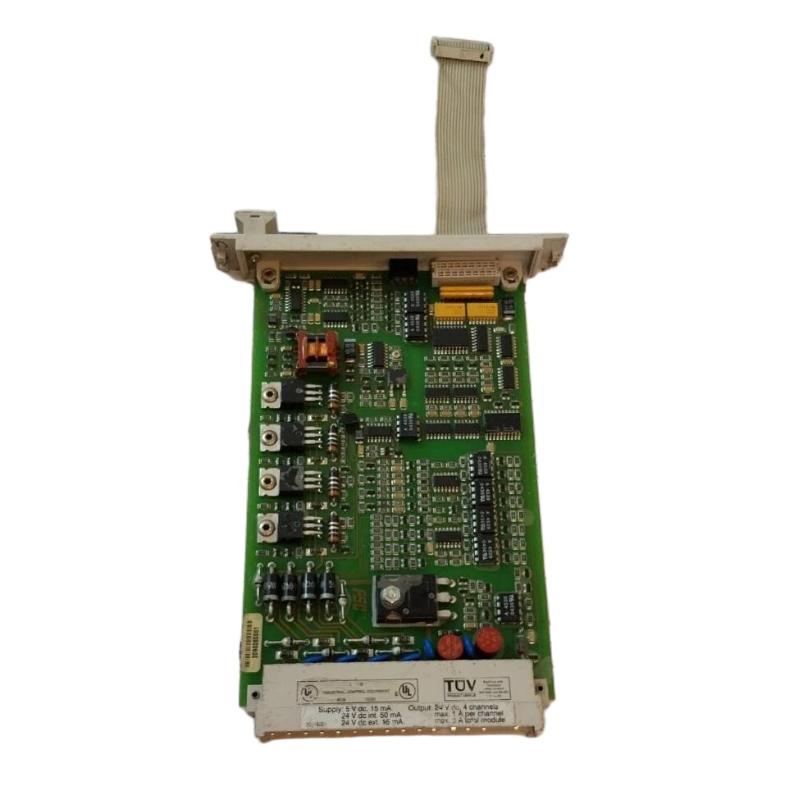

Honeywell 10216/2/1 Fail-Safe Digital Output Module

Overview

The Honeywell 10216/2/1 is a fail-safe digital output module developed for safety-critical industrial control systems. It delivers dependable output switching while ensuring that all channels transition to a safe state in the event of faults. This makes it well-suited for applications requiring high reliability and system integrity.

General Information

Part Number: 10216/2/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Fail-Safe Digital Output Modules

Type: Fail-Safe Digital Output Module

Application: Safety systems, process automation, and critical control operations

Mounting: Rack-mounted within industrial control cabinets

Technology: Fail-safe solid-state outputs with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input Power Source: Backplane supply

Protection: Overvoltage, overload, and short-circuit protection

Indicators: LED indicators for power, channel status, and fault conditions

Communication & Interface

Interface Type: Backplane communication interface

Output Type: Fail-safe digital outputs

Channels: Multiple independent output channels

Diagnostics: Continuous self-monitoring and fault reporting

Status Indication: Per-channel LED status display

Configuration: Controller-based configuration

Isolation: Electrical isolation between system and output channels

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial environments

Protection Rating: IP20 (cabinet installation required)

Dimensions & Weight

Dimensions (L × W × H): 25.4 × 127 × 203.2 mm

Weight: 0.099 kg
