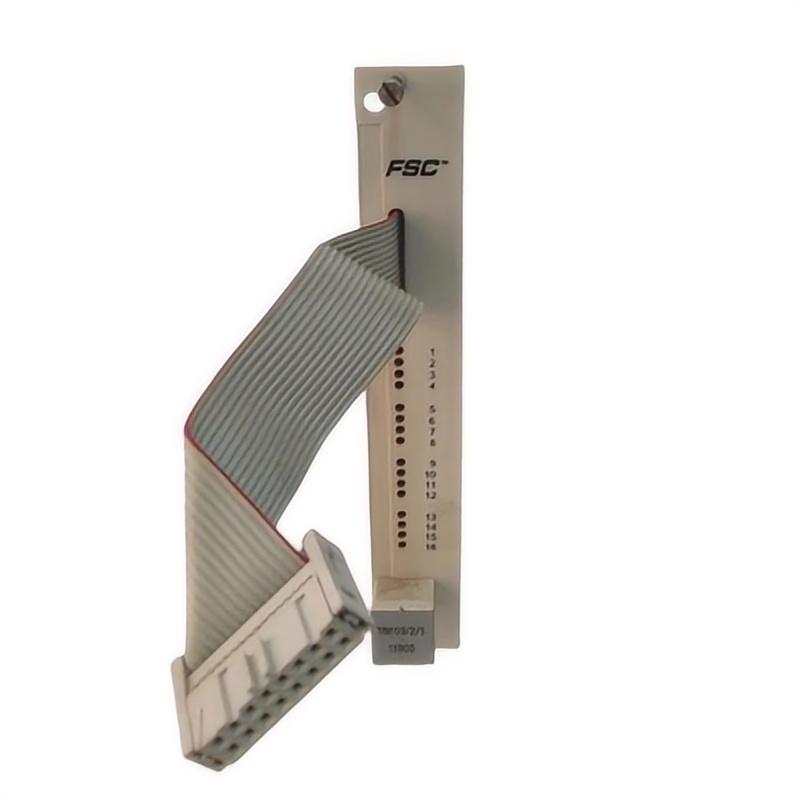

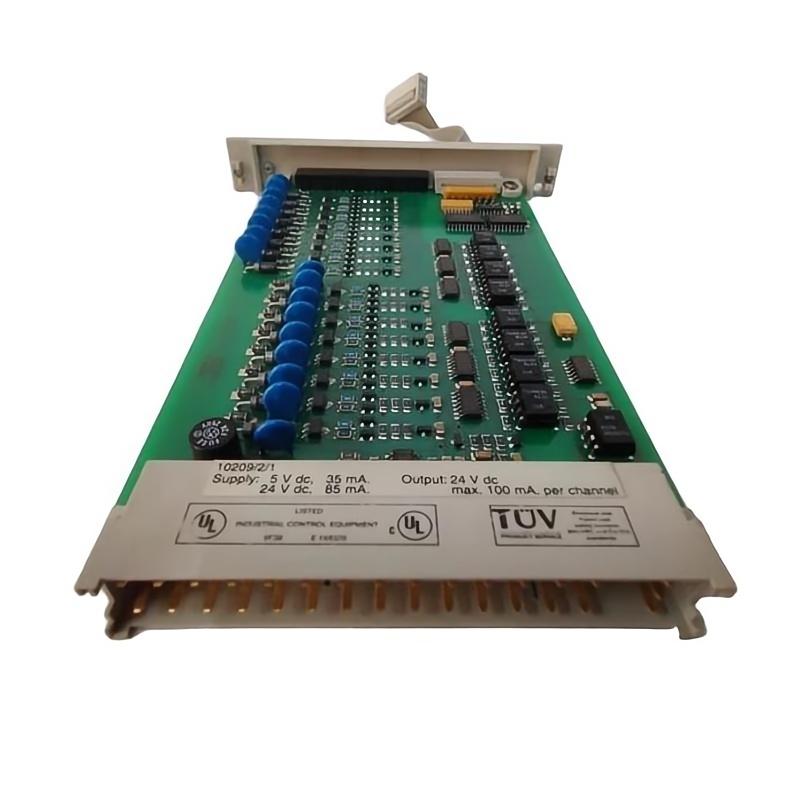

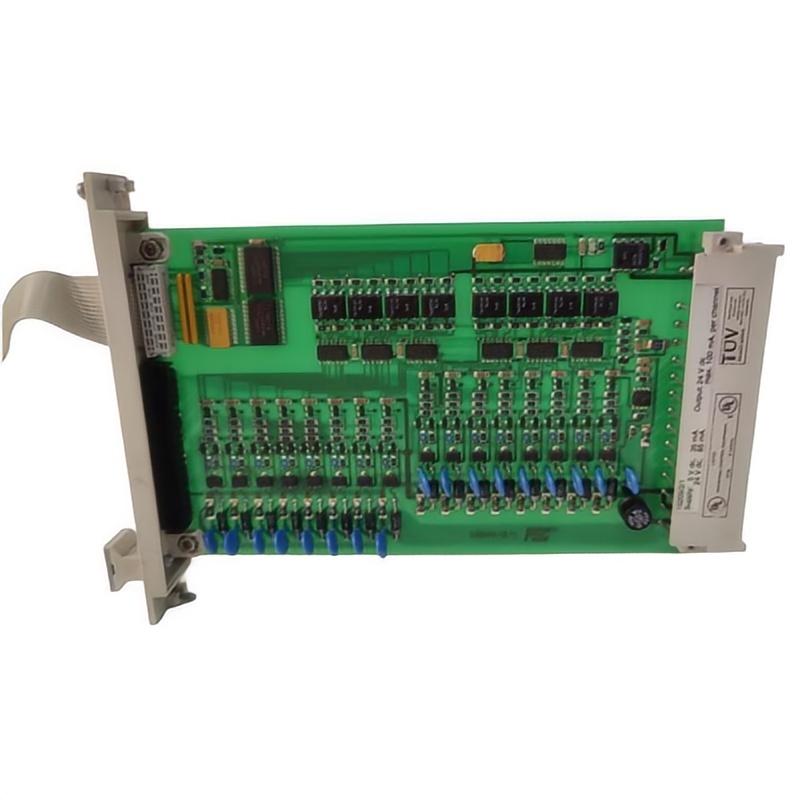

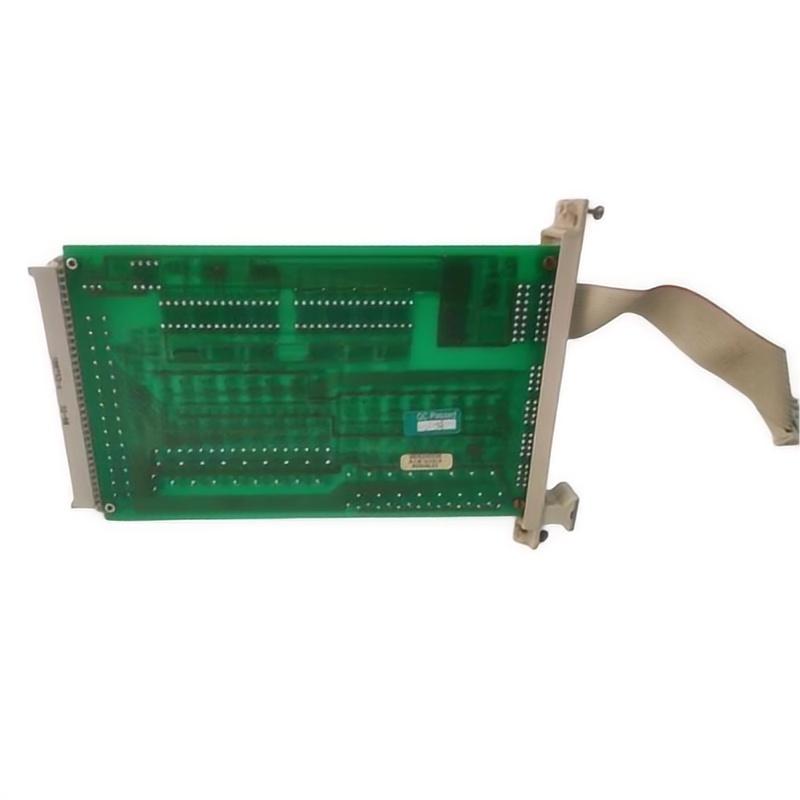

Honeywell 10209/2/1 Digital Output Module

Overview

The Honeywell 10209/2/1 is a digital output module designed for industrial automation and control systems. It provides reliable signal switching to field devices, ensuring precise control and stable operation. Built for durability, the module supports continuous performance in demanding industrial environments.

General Information

Part Number: 10209/2/1

Manufacturer: Honeywell

Brand / Country of Origin: Honeywell / United States

Series: Digital Output Modules

Type: Digital Output Module

Application: Process control, automation systems, and equipment interfacing

Mounting: Rack or panel-mounted within control cabinets

Technology: Solid-state digital output with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 9 W

Input Power Source: Backplane or external DC supply

Protection: Overvoltage, overload, and short-circuit protection

Indicators: LED indicators for power, output status, and fault conditions

Communication & Interface

Interface Type: Backplane communication with controller

Output Type: Digital outputs (transistor-based or solid-state)

Channels: Multiple output channels (depending on configuration)

Diagnostics: Continuous monitoring and fault detection

Status Indication: Per-channel LED indicators

Configuration: System-configurable parameters

Isolation: Electrical isolation between system and output circuits

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 (for cabinet installation)

Dimensions & Weight

Dimensions (L × W × H): 130 × 40 × 180 mm

Weight: 0.65 kg
