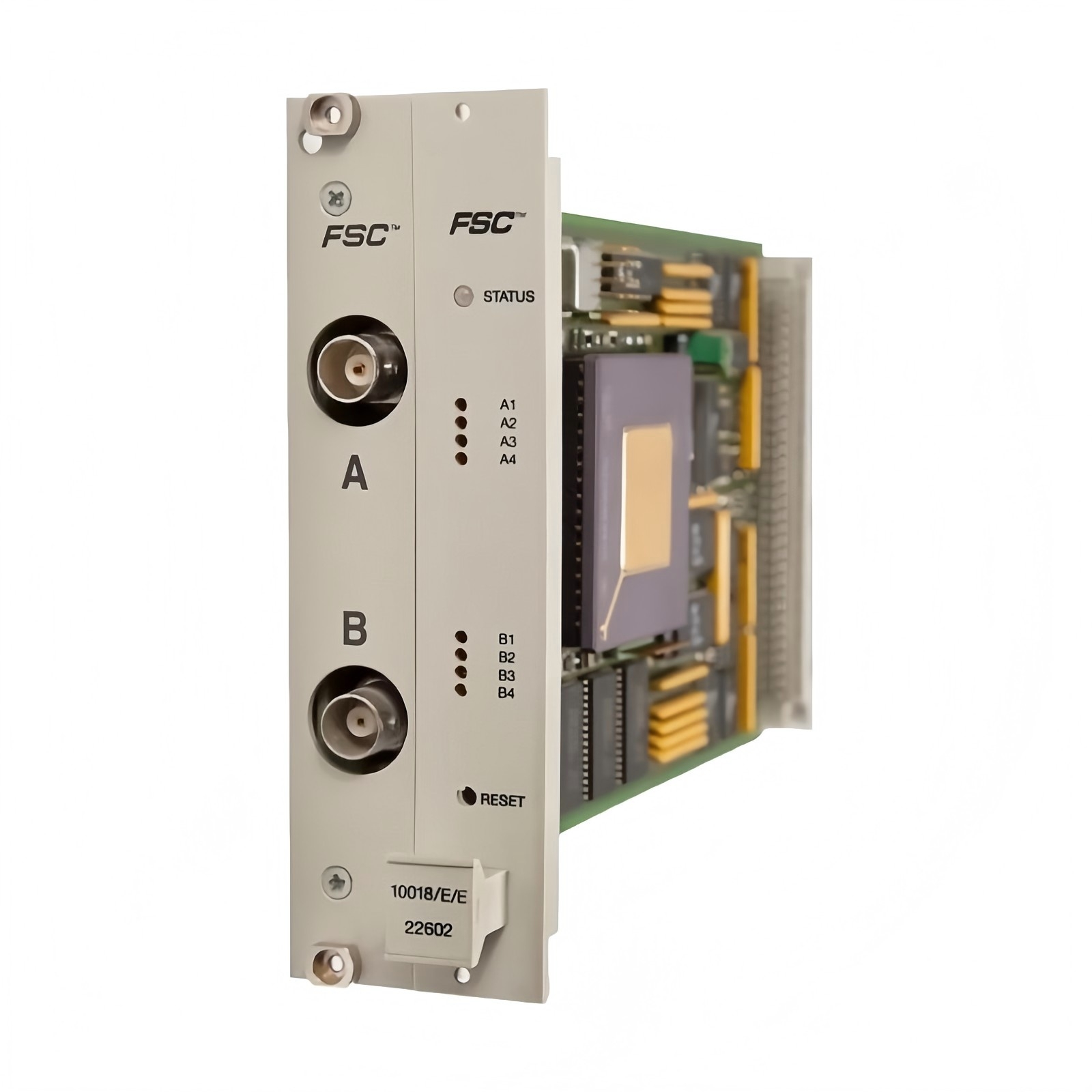

Honeywell 10018/E/E FSC Ethernet Module

Overview

The Honeywell 10018/E/E FSC Ethernet Module is designed for industrial automation systems requiring reliable and secure network communication. As part of a fail-safe control environment, it enables high-speed Ethernet connectivity between controllers and supervisory systems, ensuring stable data exchange and continuous process monitoring.

General Information

Part Number: 10018/E/E

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: FSC (Fail Safe Controller) Modules

Type: Ethernet Communication Module

Application: Industrial Ethernet communication for safety and control systems

Installation: Panel or rack-mounted within FSC control systems

Technology: Ethernet-based interface with integrated diagnostics and fail-safe compatibility

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system backplane or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, link status, activity, and fault indication

Communication & Interface

Interface Type: Ethernet port (RJ45 or industrial equivalent)

Protocol Support: Industrial Ethernet protocols (system dependent)

Data Integration: Connects FSC controllers, PLCs, and supervisory systems

Diagnostics: Network status monitoring, fault detection, and communication diagnostics

Reset Features: Supports module-level and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 136 × 97 × 30 mm

Weight: 0.25 kg

Reliable networking performance, ready to support your critical control systems.
