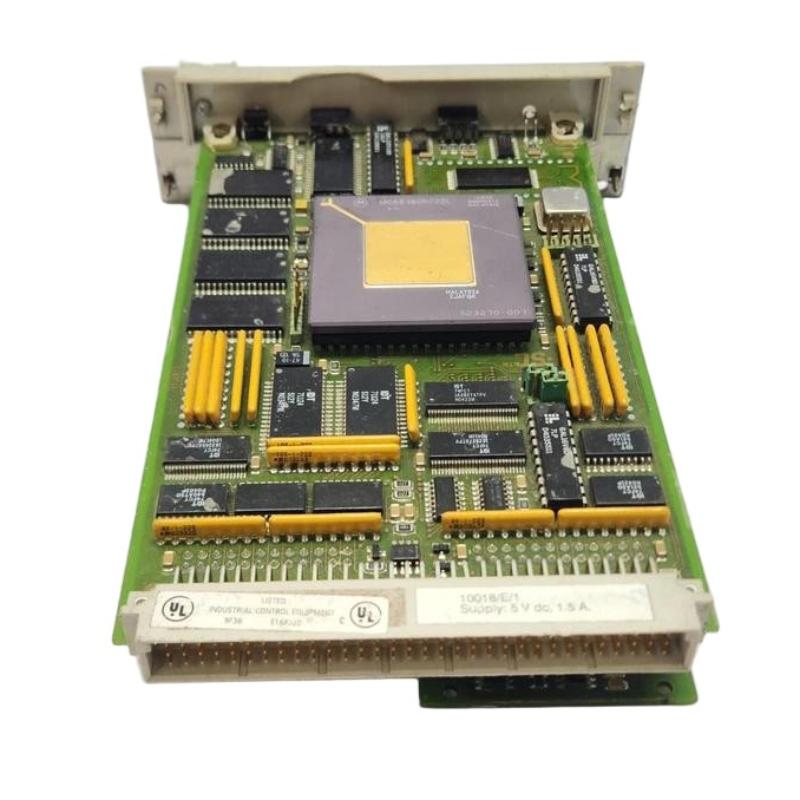

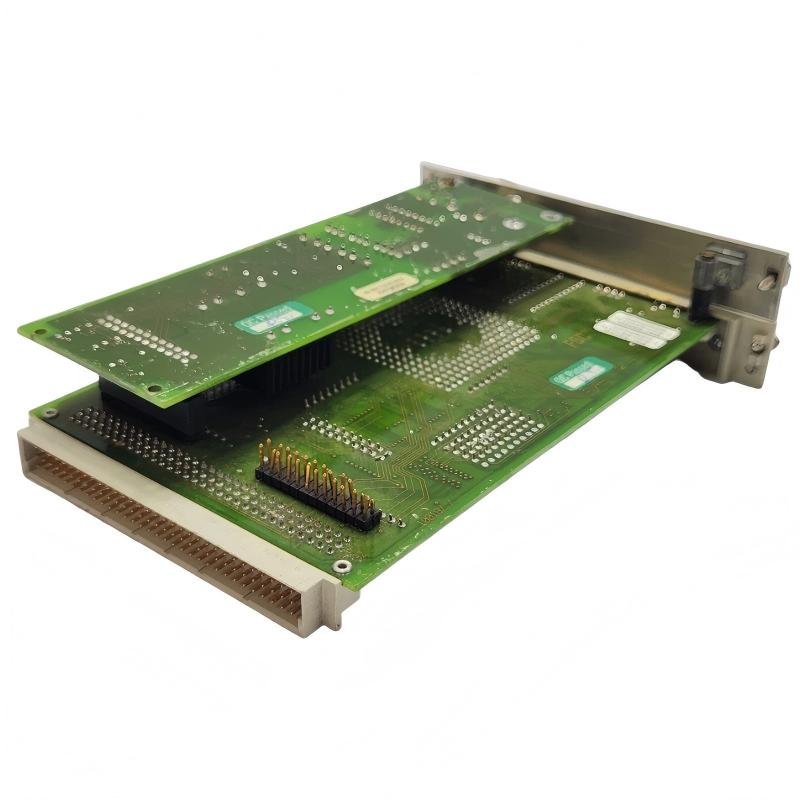

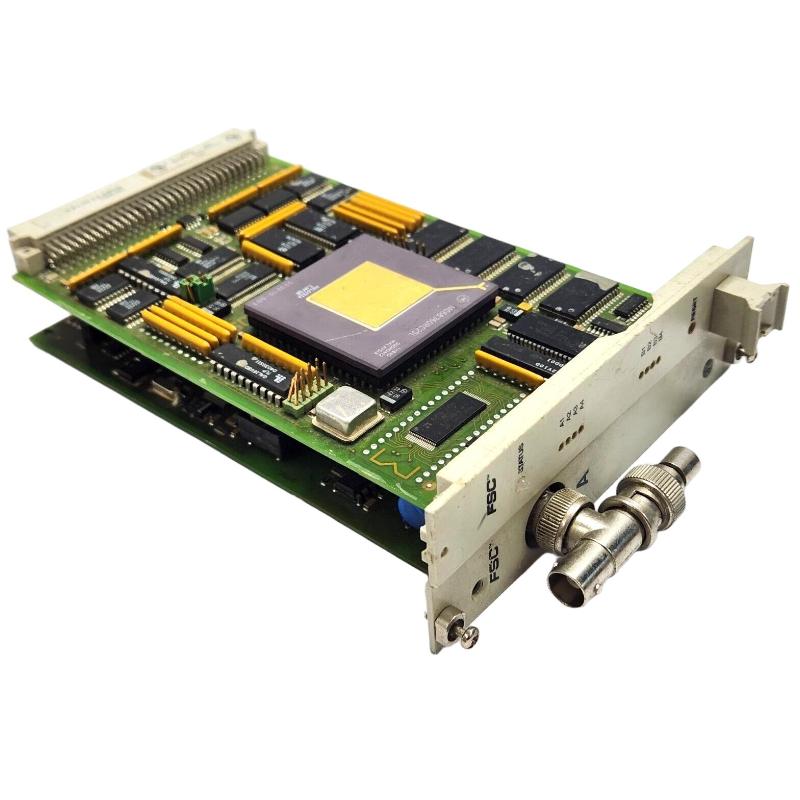

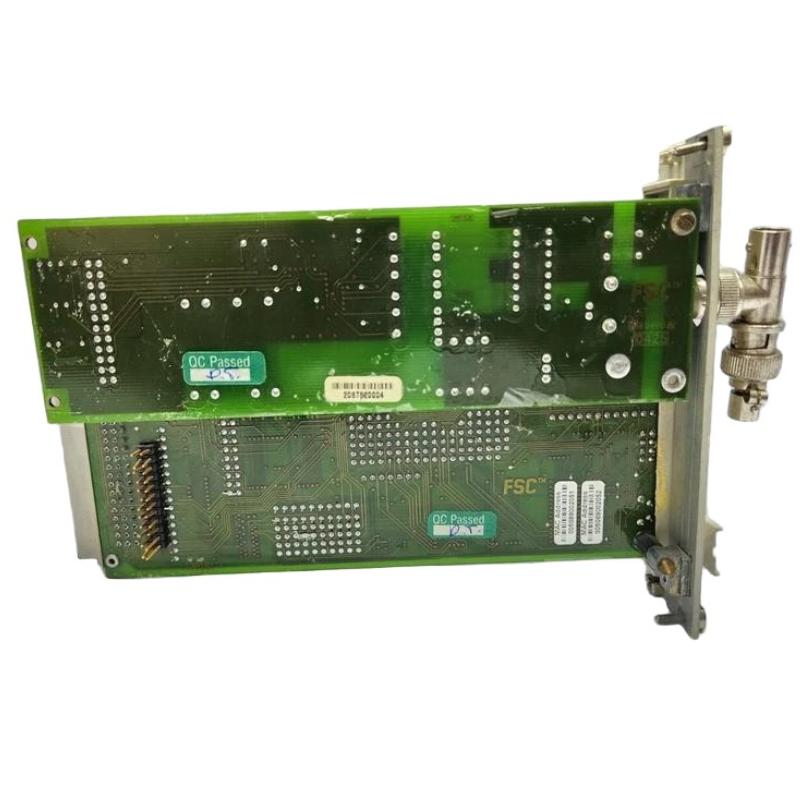

Honeywell 10018/E/1 FSC Ethernet Module

Overview

The Honeywell 10018/E/1 FSC Ethernet Module is designed for high-reliability industrial automation systems, particularly within safety-critical FSC (Fail Safe Controller) environments. It enables fast and secure Ethernet communication between controllers, supervisory systems, and network devices, ensuring consistent data exchange and system integrity.

General Information

Part Number: 10018/E/1

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: FSC (Fail Safe Controller) Modules

Type: Ethernet Communication Module

Application: Industrial Ethernet communication for safety and control systems

Installation: Panel or rack-mounted within FSC control systems

Technology: Ethernet-based communication with fail-safe integration and diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system backplane or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, link status, activity, and fault

Communication & Interface

Interface Type: Ethernet port (industrial RJ45 or equivalent)

Protocol Support: Industrial Ethernet protocols (system dependent)

Data Integration: Connects FSC controllers, PLCs, and supervisory systems

Diagnostics: Network monitoring, fault detection, and link status reporting

Reset Features: Supports module-level and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 177 × 122 × 45 mm

Weight: 0.25 kg

Engineered for reliability, ready to enhance your industrial network performance.
