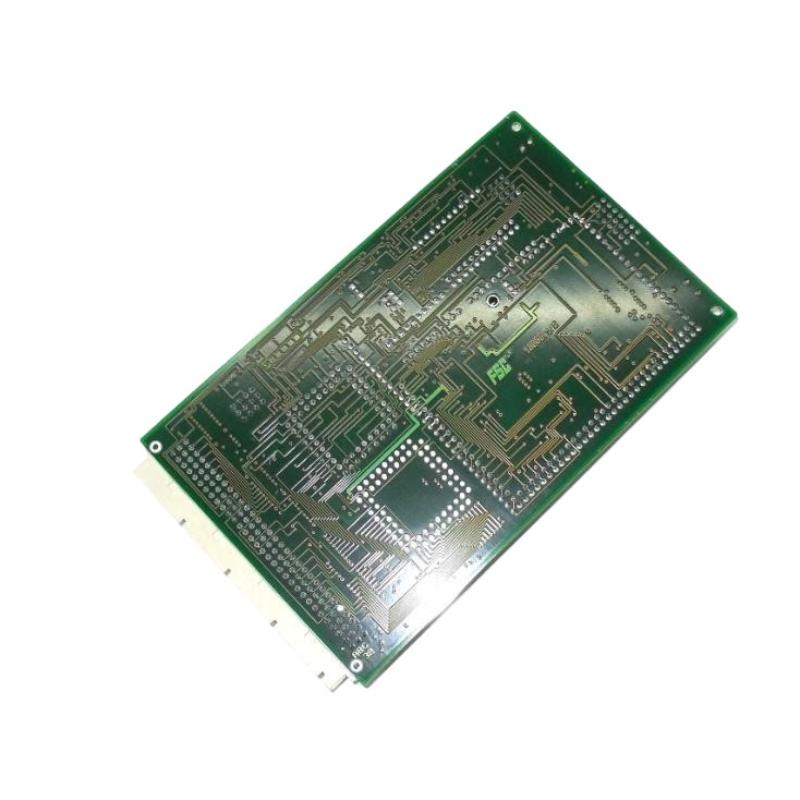

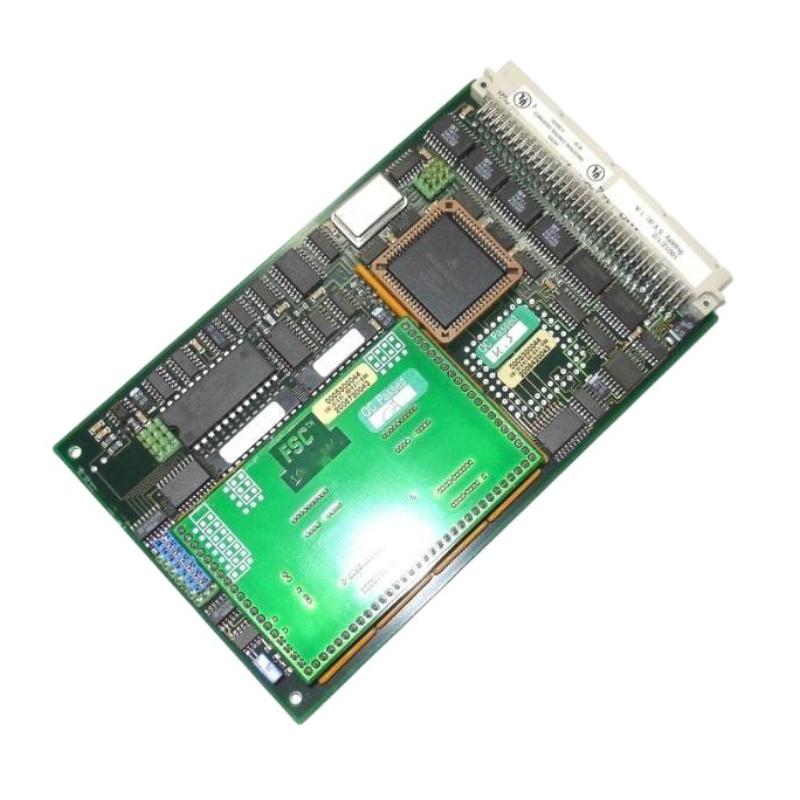

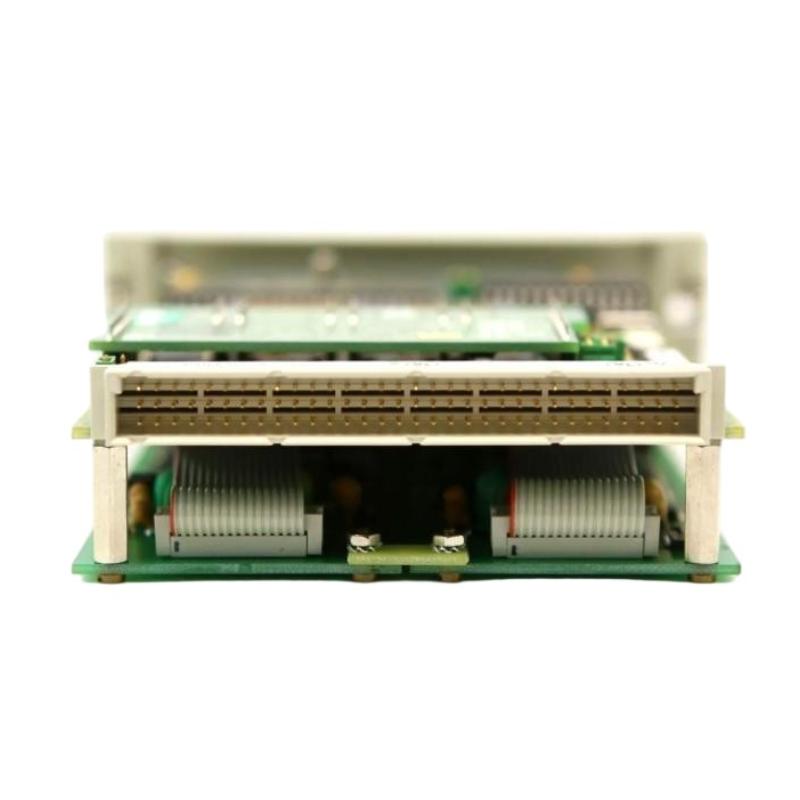

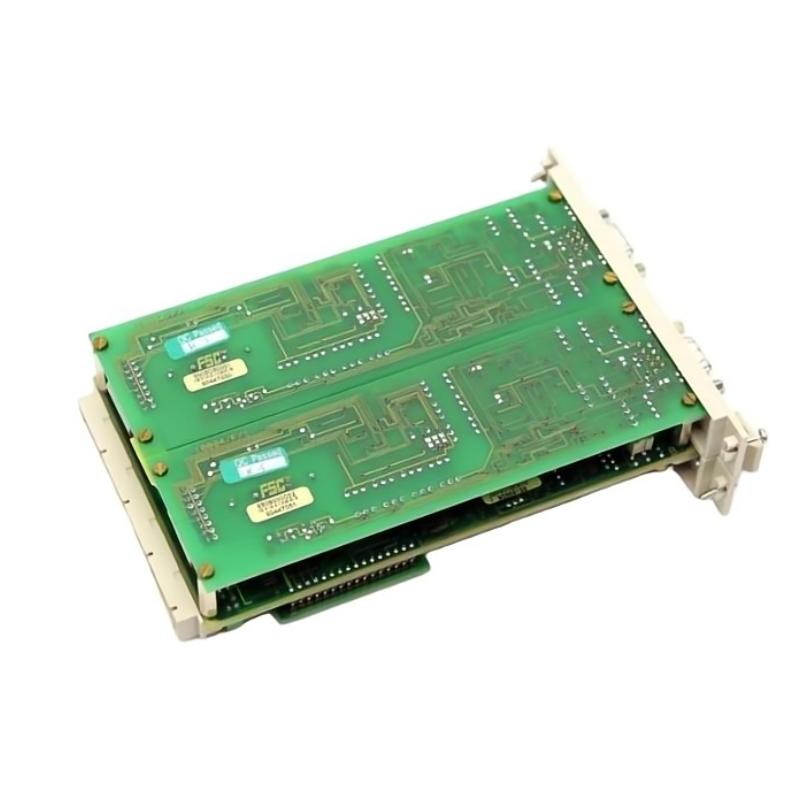

Honeywell 10016/E/1 Ethernet Module

Overview

The Honeywell 10016/E/1 is an Ethernet module designed for industrial automation systems. It enables high-speed network communication between controllers, I/O devices, and supervisory systems, ensuring reliable data transmission and real-time process control across Ethernet-based networks.

General Information

Part Number: 10016/E/1

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Ethernet Communication Modules

Type: Ethernet / Network Interface Module

Application: Industrial Ethernet communication and system integration

Installation: Panel or DIN-rail mounted within control enclosures

Technology: Ethernet-based communication with integrated diagnostics and network management

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system bus or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, link status, activity, and fault indication

Communication & Interface

Interface Type: Ethernet port (RJ45 or industrial equivalent)

Protocol Support: Industrial Ethernet protocols (system dependent)

Data Integration: Connects PLCs, HMIs, and networked automation devices

Diagnostics: Network status monitoring, fault detection, and link supervision

Reset Features: Supports module-level and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 40 × 175 × 128 mm

Weight: 0.36 kg

High-speed networking solution, ready to power your industrial communication system.
