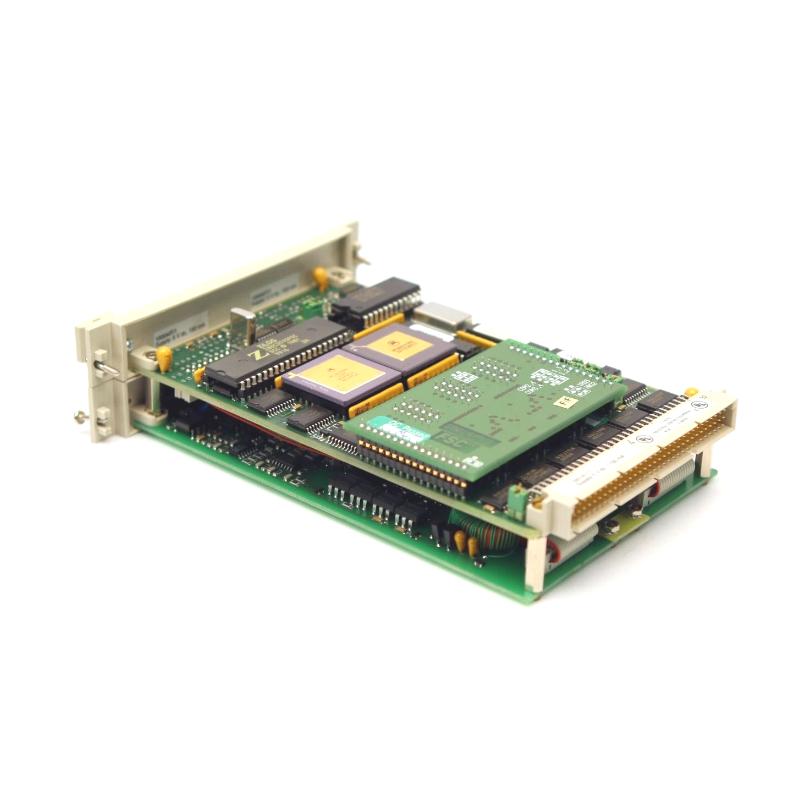

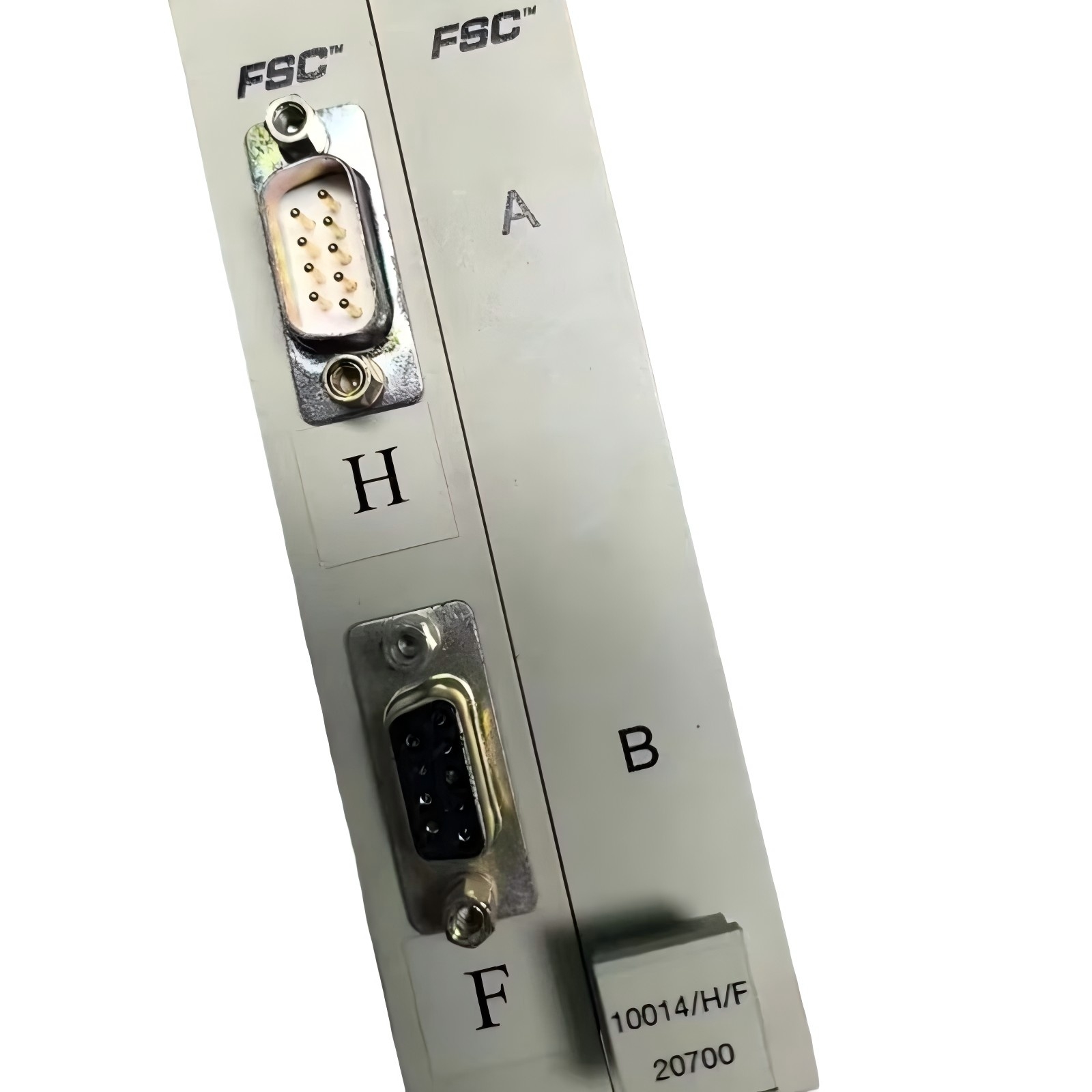

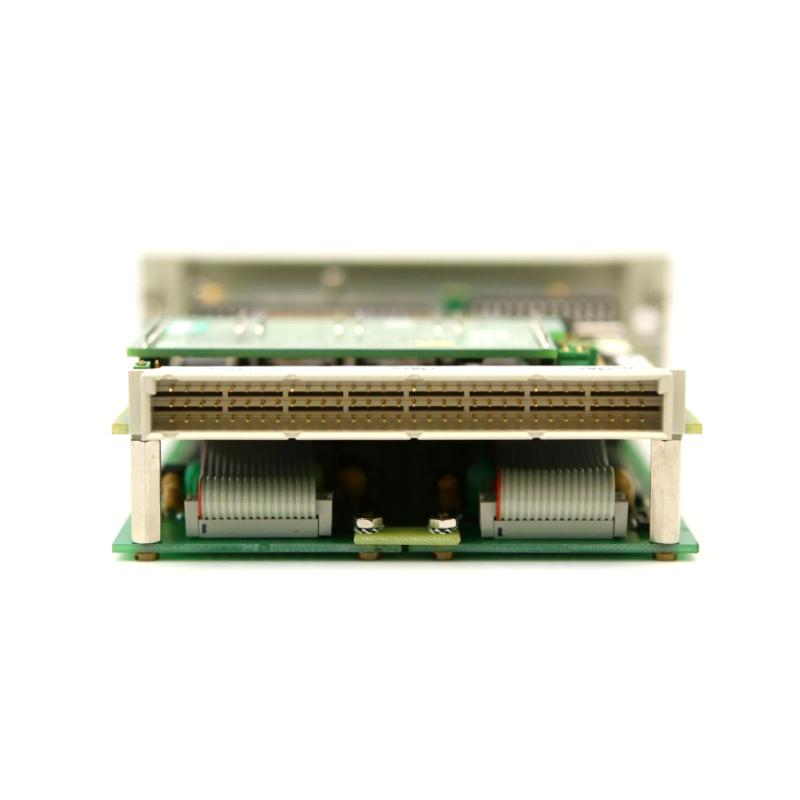

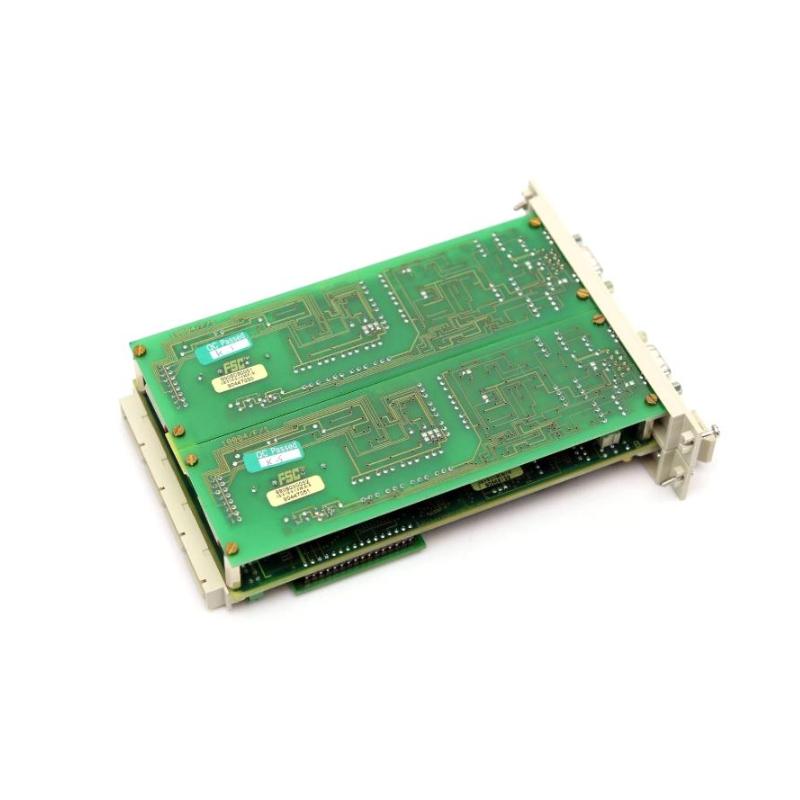

Honeywell 10014/H/F Communication Module

Overview

The Honeywell 10014/H/F is a communication module designed for industrial automation systems. It enables stable and efficient data exchange between controllers, field devices, and network components, supporting reliable process control and real-time system monitoring.

General Information

Part Number: 10014/H/F

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Communication Modules

Type: Communication / Interface Module

Application: Industrial data communication and network integration

Installation: Panel or DIN-rail mounted within control enclosures

Technology: Fieldbus and serial communication interface with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system bus or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication activity, and fault status

Communication & Interface

Interface Type: Dual serial or fieldbus communication ports

Data Integration: Connects controllers, PLCs, and field devices

Diagnostics: Real-time monitoring, fault detection, and status reporting

Reset Features: Supports module-level and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 185 × 30 × 128 mm

Weight: 0.36 kg

Stable performance, ready for fast deployment in your automation system.
