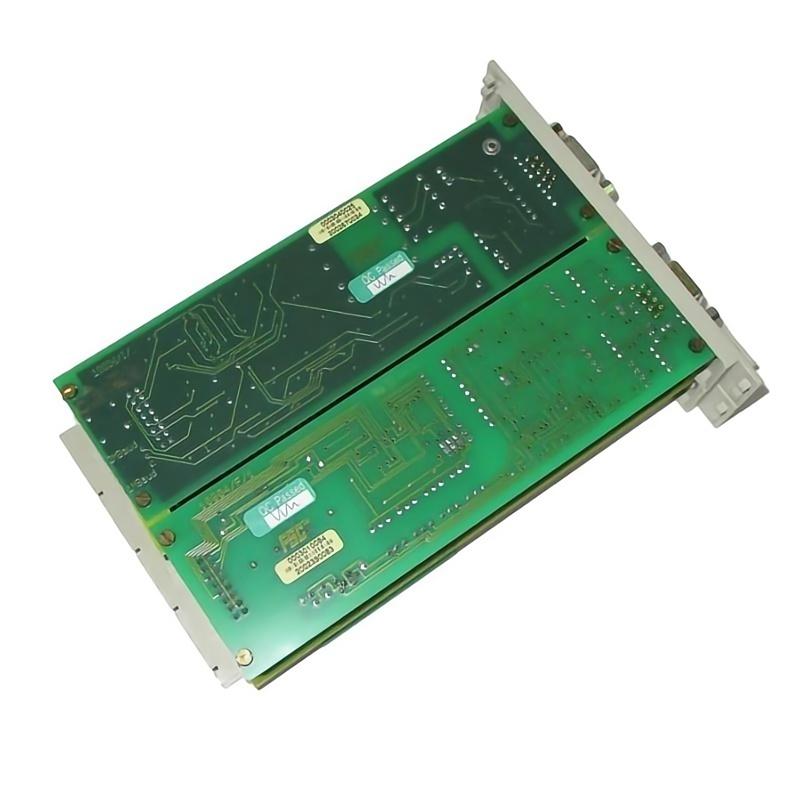

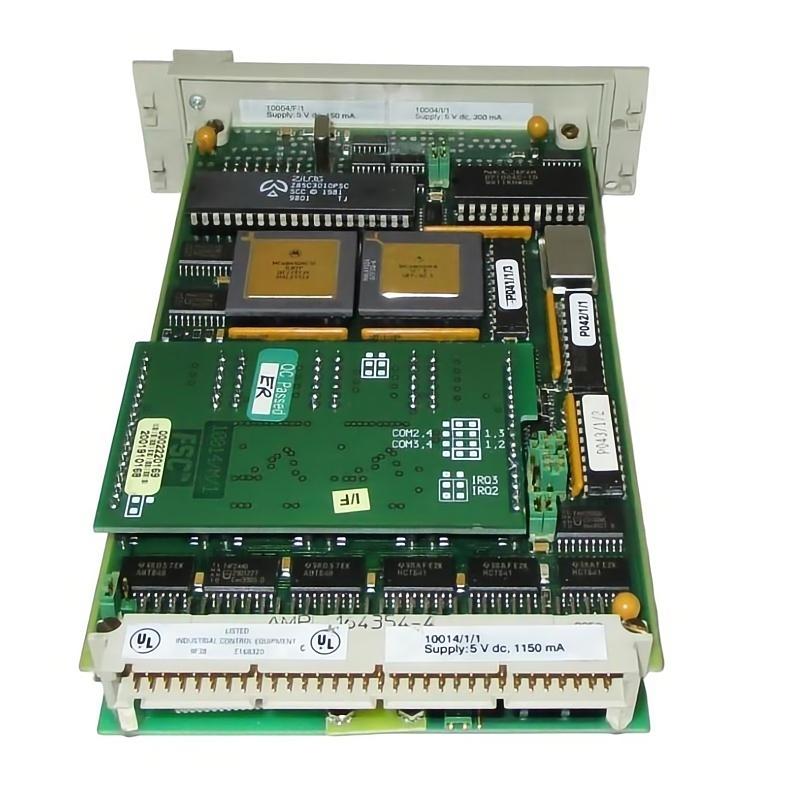

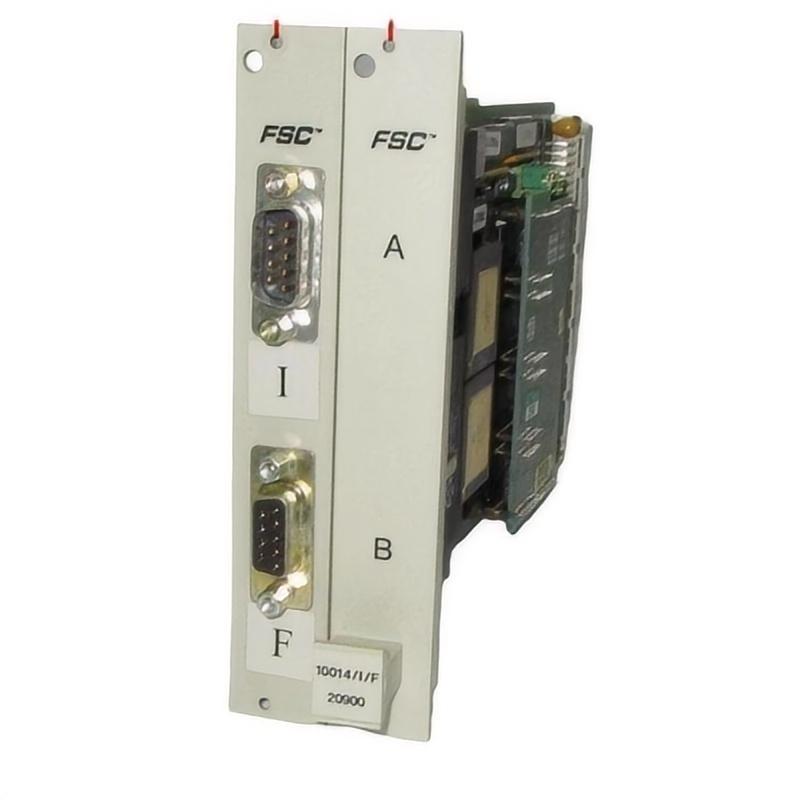

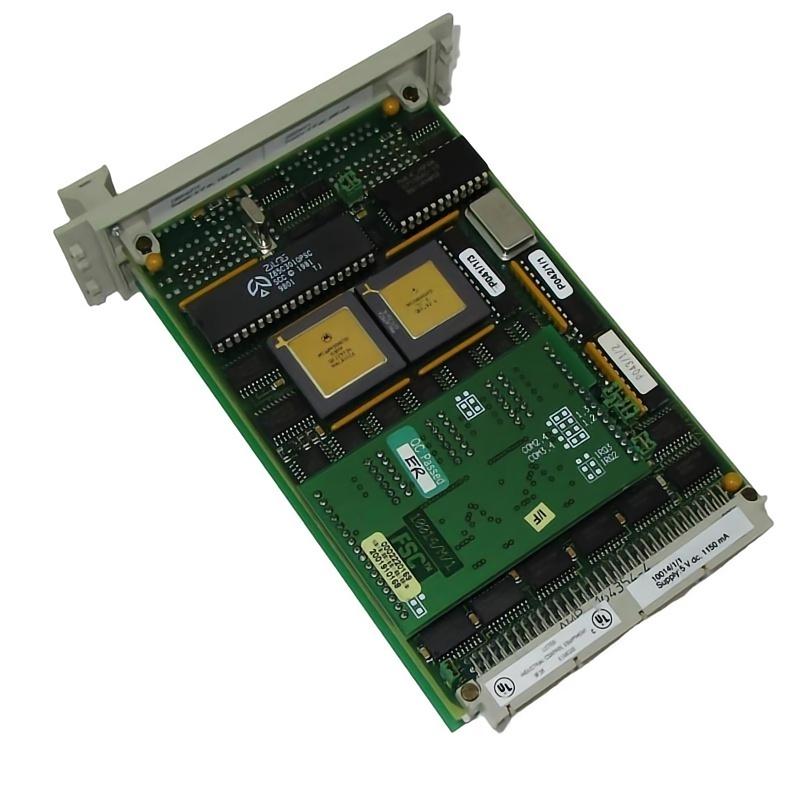

Honeywell 10014/1/1 Dual-Port Module

Overview

The Honeywell 10014/1/1 is a dual-port module designed for industrial automation systems. It provides dual communication channels, enabling simultaneous data transfer between controllers, field devices, and networked systems, ensuring efficient and reliable process control.

General Information

Part Number: 10014/1/1

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Dual-Port Modules

Type: Communication / Interface Module

Application: Dual-channel data communication and network integration in industrial automation

Installation: Panel or DIN-rail mounted within control enclosures

Technology: Dual serial or fieldbus ports with integrated diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 12 W

Input: Powered via system bus or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, port activity, and fault status

Communication & Interface

Interface Type: Dual serial (RS-232/RS-485) or fieldbus ports

Data Integration: Connects multiple PLCs, controllers, and field devices simultaneously

Diagnostics: Status monitoring, fault detection, and activity reporting

Reset Features: Supports module and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 185 × 30 × 128 mm

Weight: 0.36 kg

Dual connectivity, ready to streamline your automation network efficiently.
