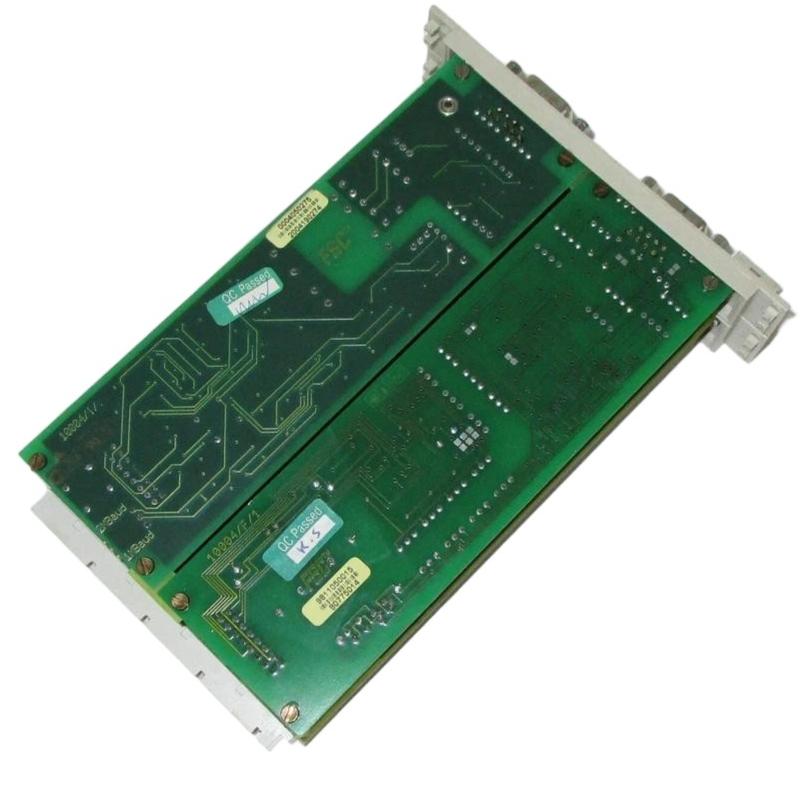

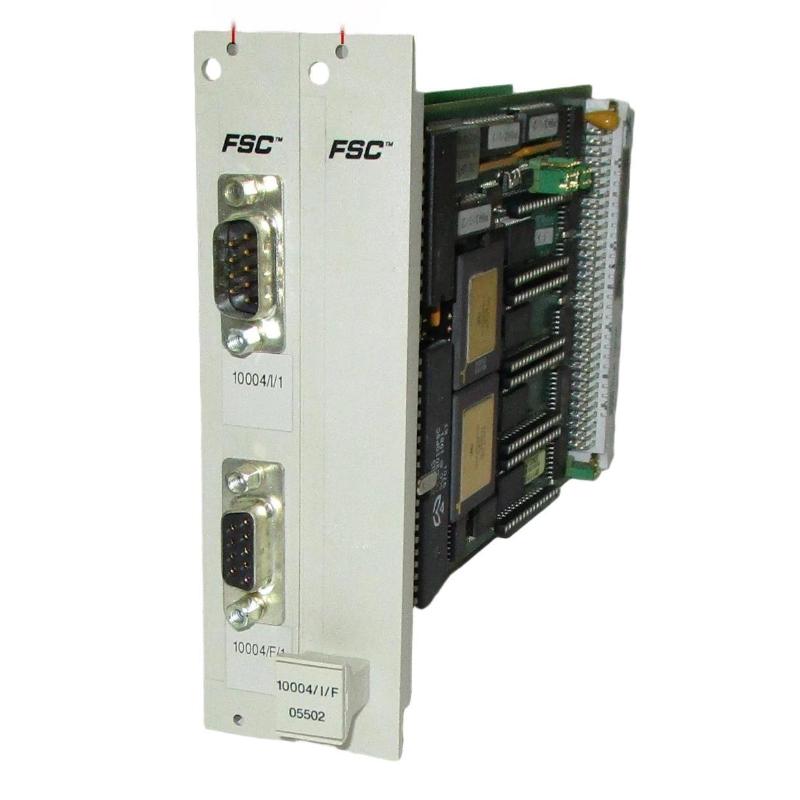

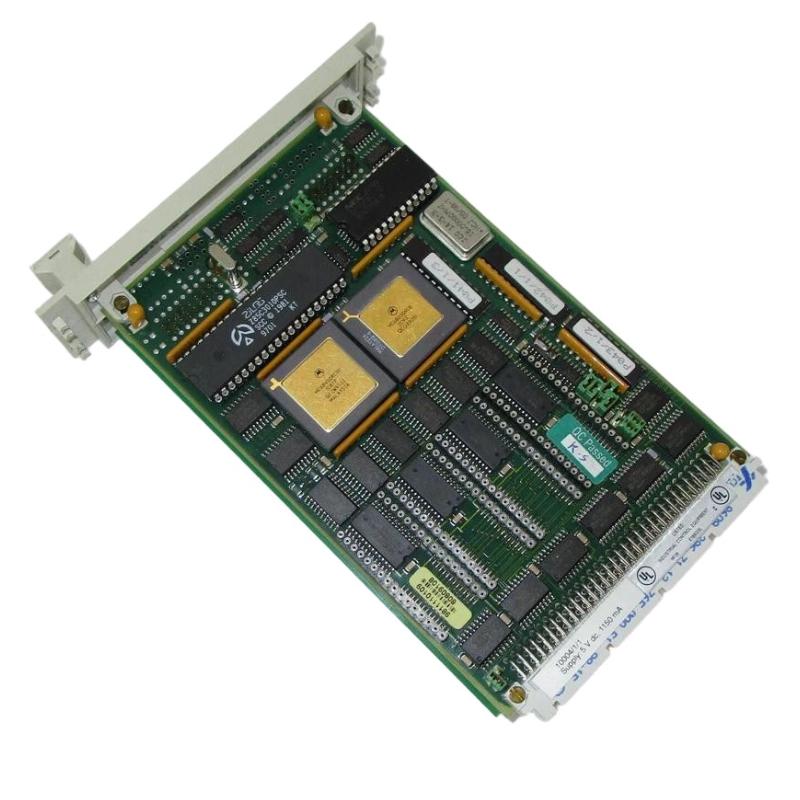

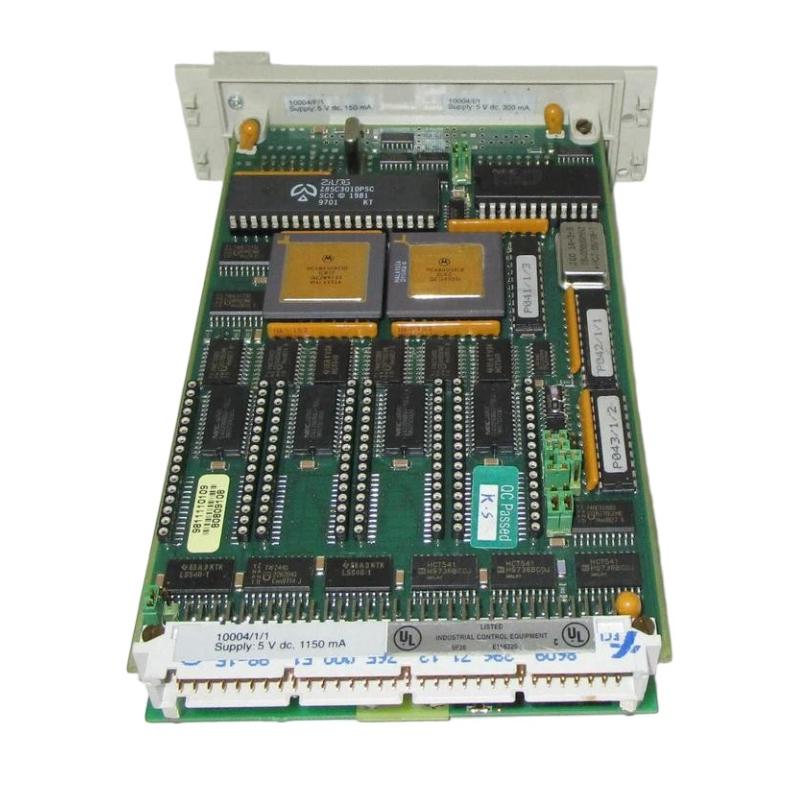

Honeywell 10004/I/F Communication Module

Overview

The Honeywell 10004/I/F is a communication module for industrial automation systems. It provides reliable connectivity between controllers, field devices, and networked equipment, enabling efficient data transfer and real-time monitoring for process control applications.

General Information

Part Number: 10004/I/F

Manufacturer: Honeywell

Brand: Honeywell

Country of Origin: USA

Series: Communication Modules

Type: Communication / Interface Module

Application: Network integration and data communication in industrial automation

Installation: Panel or DIN-rail mounted within control enclosures

Technology: Serial and fieldbus-compatible communication interface with diagnostics

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W

Input: Powered via system bus or dedicated supply

Protection: Overvoltage and reverse-polarity protection

Indicators: LEDs for power, communication activity, and fault

Communication & Interface

Interface Type: Serial (RS-232/RS-485) or fieldbus connections depending on configuration

Data Integration: Connects PLCs, controllers, and field devices

Diagnostics: Status monitoring, fault detection, and activity reporting

Reset Features: Supports module and system-level reset

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Cooling Method: Natural convection or cabinet ventilation

Protection Class: Typically IP20 inside industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 180 × 30 × 120 mm

Weight: 0.4 kg

Compact and efficient, ready to enhance your automation communication network.
